CAM CHAIN

DR350S 1993 (P) (E02 E04 E21 E22 E24 E25 E34 E39 E94)

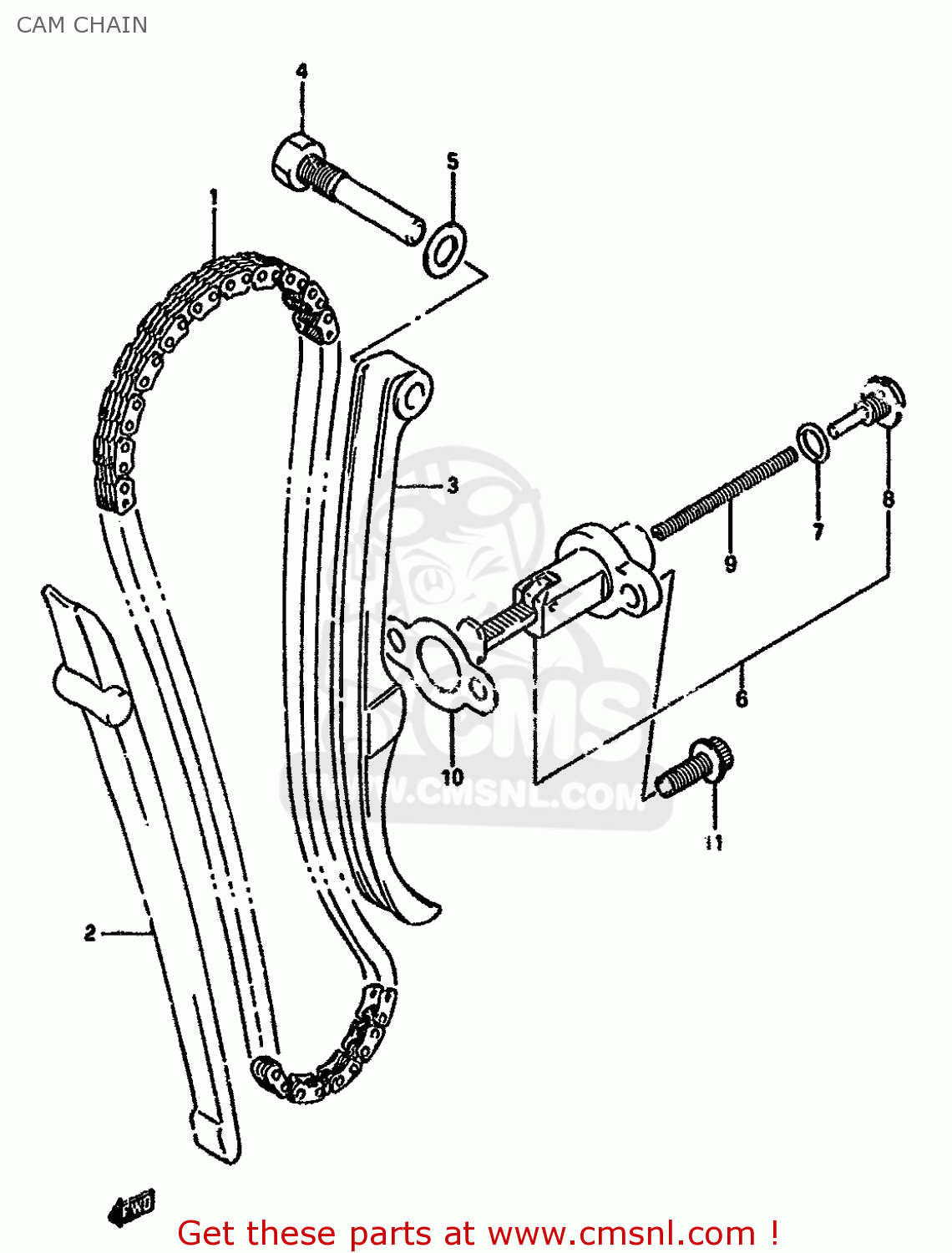

Cam chain diagram DR350S 1993 (P) (E02 E04 E21 E22 E24 E25 E34 E39 E94)

prices are in EUR

ref

part #

description

quantity

1276019B71
ref: 1
108LE,-12760-19B70-1

CHAIN,CAMSHAFT DRIVE

€ 59.50

1277114D00
ref: 2

GUIDE,CAM CHAIN

€ 34.50

1281114D00
ref: 3

TENSIONER,CAM CHAIN

€ 30.00

1281232410
ref: 4

BOLT,CAM CHAIN TENSIONER

€ 3.50

0916808008
ref: 5

GASKET 8.2X14X1 (NAS)

€ 1.00

6-1

1283029B21
ref: 6-1
MODEL L/M/N

ADJUSTER ASSEMBLY,TENSIONER

€ 72.50

6-2

1283029B11
ref: 6-2
MODEL P/R

ADJUSTER ASSY,TENSIONER

€ 72.50

1283202A00
ref: 7

O RING

€ 2.00

1283426B00
ref: 8

PLUG,ADJUSTER

€ 8.00

1283329B00
ref: 9

SPRING

€ 2.50

1283714D00
ref: 10

GASKET,TENSIONER ADJUSTER(NA) (NAS)

€ 3.00

11-1

0712006205
ref: 11-1
MODEL L/M/N/P

PLUG ,6X20

€ 3.50

11-2

0712006203
ref: 11-2
MODEL R

BOLT

€ 3.50
