CRANKCASE

DR350S 1993 (P) (E02 E04 E21 E22 E24 E25 E34 E39 E94)

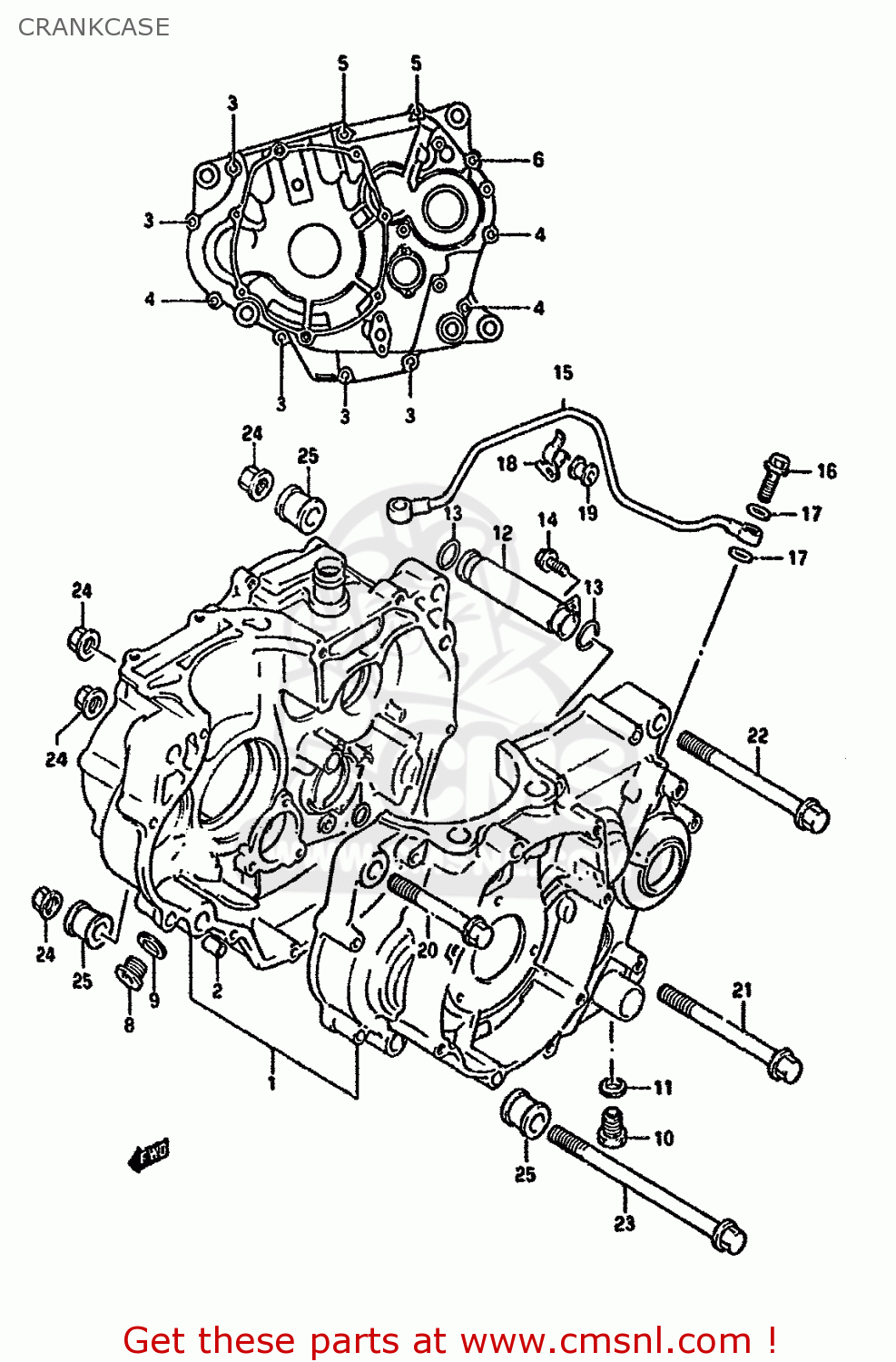

Crankcase diagram DR350S 1993 (P) (E02 E04 E21 E22 E24 E25 E34 E39 E94)

CRANKCASE DR350S 1993 (P) (E02 E04 E21 E22 E24 E25 E34 E39 E94)
CRANKCASE DR350S 1993 (P) (E02 E04 E21 E22 E24 E25 E34 E39 E94)
CRANKCASE DR350S 1993 (P) (E02 E04 E21 E22 E24 E25 E34 E39 E94)
prices are in EUR
ref
part #
description
quantity
1-1
1130114882
ref: 1-1
MODEL L/M/N/P
CRANKCASE SET
€ 798.00
1-2
1130115820
ref: 1-2
MODEL R
CRANKCASE SET
€ 838.00
2
0421109149
ref: 2
PIN
0421109149
€ 2.00
3-1
0154706457
ref: 3-1
MODEL L/M/N/P
BOLT
0154706457
€ 2.50
3-2
0154706453
ref: 3-2
MODEL R
BOLT
0154706453
€ 3.00
4-1
0154706507
ref: 4-1
MODEL L/M/N/P
BOLT
0154706507
€ 2.50
4-2
0154706503
ref: 4-2
MODEL R
BOLT
0154706503
€ 3.50
5-1
0154706607
ref: 5-1
MODEL L/M/N/P
BOLT
0154706607
€ 2.50
5-2
0154706603
ref: 5-2
MODEL R
BOLT
€ 3.50
6
0154706707
ref: 6
BOLT
0154706707
€ 2.50
7
0928013007
ref: 7
O-RING
€ 2.50
8
0924814005
ref: 8
PLUG,14X12
0924814005
€ 5.00
9
0916814002
ref: 9
GASKET(13.8X18.8X4.8) (NAS)
0916814002
€ 2.50
10-1
0110412205
ref: 10-1
MODEL L/M/N/P
PLUG,OIL DRN.
€ 3.00
10-2
0150012203
ref: 10-2
MODEL R
BOLT
0150012203
€ 3.00
11
0916812002
ref: 11
GASKET(12.1X16.2X3.7) (NAS)
0916812002
€ 2.00
12
1145014D01
ref: 12
PIPE,T/M OIL INNER
€ 11.50
13
0928016005
ref: 13
O RING(D:2.4,ID:15.8)
0928016005
€ 1.50
14-1
0151706128
ref: 14-1
MODEL L/M/N/P
BOLT
€ 2.50
14-2
0155006123
ref: 14-2
MODEL R
BOLT
0155006123
€ 2.50
15
1128014D02
ref: 15
PIPE,T/M OIL OUTER
1128014D02
€ 55.00
16
0936008011
ref: 16
BOLT UNION
0936008011
€ 4.00
17
0916808008
ref: 17
GASKET 8.2X14X1 (NAS)
0916808008
€ 1.00
18
1129014D00
ref: 18
CLAMP,OIL PIPE
€ 6.00
19
0932006019
ref: 19
CUSHION
0932006019
€ 12.50
20
0910310230
ref: 20
BOLT 10X85
€ 6.00
21
0910310242
ref: 21
BOLT(10X101.5)
0910310242
€ 6.50
22
0910310063
ref: 22
BOLT(10X115)
0910310063
€ 5.00
23
0910310241
ref: 23
BOLT(10X143)
0910310241
€ 6.00
24
0915910058
ref: 24
NUT
0915910058
€ 4.00
25-1
1161136A30
ref: 25-1
MODEL L/M/N
SPACER,ENGINE MOUNT
€ 15.50
25-2
1161114D00
ref: 25-2
MODEL P/R
SPACER,ENGINE MOUNTING
1161114D00
€ 15.50
