TAIL LAMP

DR350S 1993 (P) (E02 E04 E21 E22 E24 E25 E34 E39 E94)

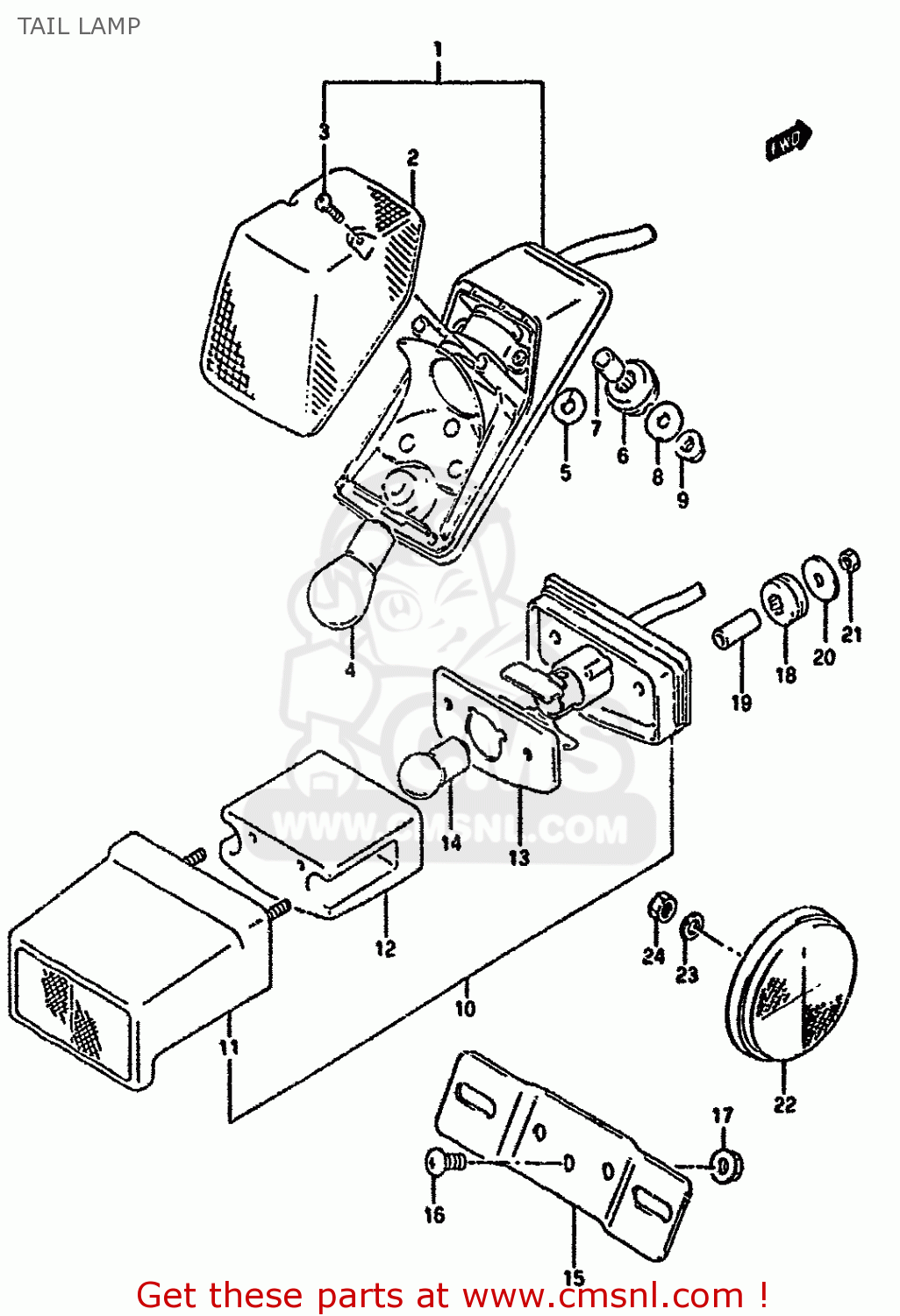

Tail lamp diagram DR350S 1993 (P) (E02 E04 E21 E22 E24 E25 E34 E39 E94)

TAIL LAMP DR350S 1993 (P) (E02 E04 E21 E22 E24 E25 E34 E39 E94)
TAIL LAMP DR350S 1993 (P) (E02 E04 E21 E22 E24 E25 E34 E39 E94)
TAIL LAMP DR350S 1993 (P) (E02 E04 E21 E22 E24 E25 E34 E39 E94)
prices are in EUR
ref
part #
description
quantity
1-1
3571014D20
ref: 1-1
MODEL L/M/N
LAMP ASSY,TAIL
€ 105.00
1-2
3571014D21
ref: 1-2
MODEL P/R
LAMP ASSY,RR COMBINATION
3571014D21
€ 105.00
2
3571203D00
ref: 2
LENS
3571203D00
€ 18.50
3
0351104165
ref: 3
SCREW
0351104165
€ 1.50
4
0947112083
ref: 4
BULB(12V21/5W)
0947112083
€ 6.00
5
3592803D00
ref: 5
GASKET (NAS)
€ 3.00
6
0932009010
ref: 6
CUSHION
0932009010
€ 2.50
7
0918006121
ref: 7
SPACER(6.4X9.2X12)
0918006121
€ 2.50
8-1
0916006102
ref: 8-1
MODEL L/M/N
WASHER (6.5X20X1.6)
€ 2.00
8-2
0916006059
ref: 8-2
MODEL P
WASHER,COVER,FRONT
€ 2.00
8-3
0916006088
ref: 8-3
MODEL R
WASHER(6.5X20X1.6)
0916006088
€ 2.00
9-1
0831616066
ref: 9-1
MODEL L/M/N
NUT
€ 2.50
9-2
0831012066
ref: 9-2
MODEL P
NUT
0831012066
€ 2.00
9-3
0831000063
ref: 9-3
MODEL R
NUT 6MM
0831000063
€ 2.00
10
3591014D10
ref: 10
LAMP ASSY,LICENSE
3591014D10
€ 159.50
11
3591714D10
ref: 11
REFLECTOR/COVER
3591714D10
€ 73.50
12
3591238A20
ref: 12
LENS
3591238A20
€ 13.00
13
3591338A30
ref: 13
GASKET,LICENSE LAMP (NAS)
3591338A30
€ 2.00
14
0947112140
ref: 14
BULB(12V5W,BF150-40160A)
€ 4.00
15-1
3592744110
ref: 15-1
PLATE,RR LICENSE
3592744110
€ 22.50
15-2
3592714D20
ref: 15-2
E39
BRACKET, LICENSE PLATE
€ 0.00
16-1
0214206164
ref: 16-1
MODEL L/M/N/P
SCREW
0214206164
€ 2.50
16-2
0214206163
ref: 16-2
MODEL R
SCREW
0214206163
€ 2.50
17-1
0831616066
ref: 17-1
MODEL L/M/N/P
NUT
€ 2.50
17-2
0831610063
ref: 17-2
MODEL R
NUT
0831610063
€ 2.50
18
0932009009
ref: 18
CUSHION
0932009009
€ 5.00
19
0918005040
ref: 19
SPACER (5.5X9.5X19.50)
€ 4.00
20-1
0916005039
ref: 20-1
MODEL L/M/N/P
WASHER (5.1X20X1.4)
0916005039
€ 2.00
20-2
0916005501
ref: 20-2
MODEL R
WASHER(5.5X20X1.2)
0916005501
€ 2.00
21-1
0831022056
ref: 21-1
MODEL L/M/N/P
NUT 5MM
0831022056
€ 2.50
21-2
0831000053
ref: 21-2
MODEL R
NUT
€ 2.50
22
3595014A00
ref: 22
E39
REFLECTOR,REFLEX FR
3595014A00
€ 15.00
23-1
0832121055
ref: 23-1
MODEL L/M/N/P E39
WASHER,LOCK
0832121055
€ 3.00
23-2
0832101053
ref: 23-2
MODEL R E39
LOCK,WASHER
€ 3.00
24-1
0831012055
ref: 24-1
MODEL L/M/N/P E39
NUT ,5MM
0831012055
€ 2.50
24-2
0831000053
ref: 24-2
MODEL R E39
NUT
€ 2.50
