FRAME (MODEL R)

DR350S 1993 (P) (E02 E04 E21 E22 E24 E25 E34 E39 E94)

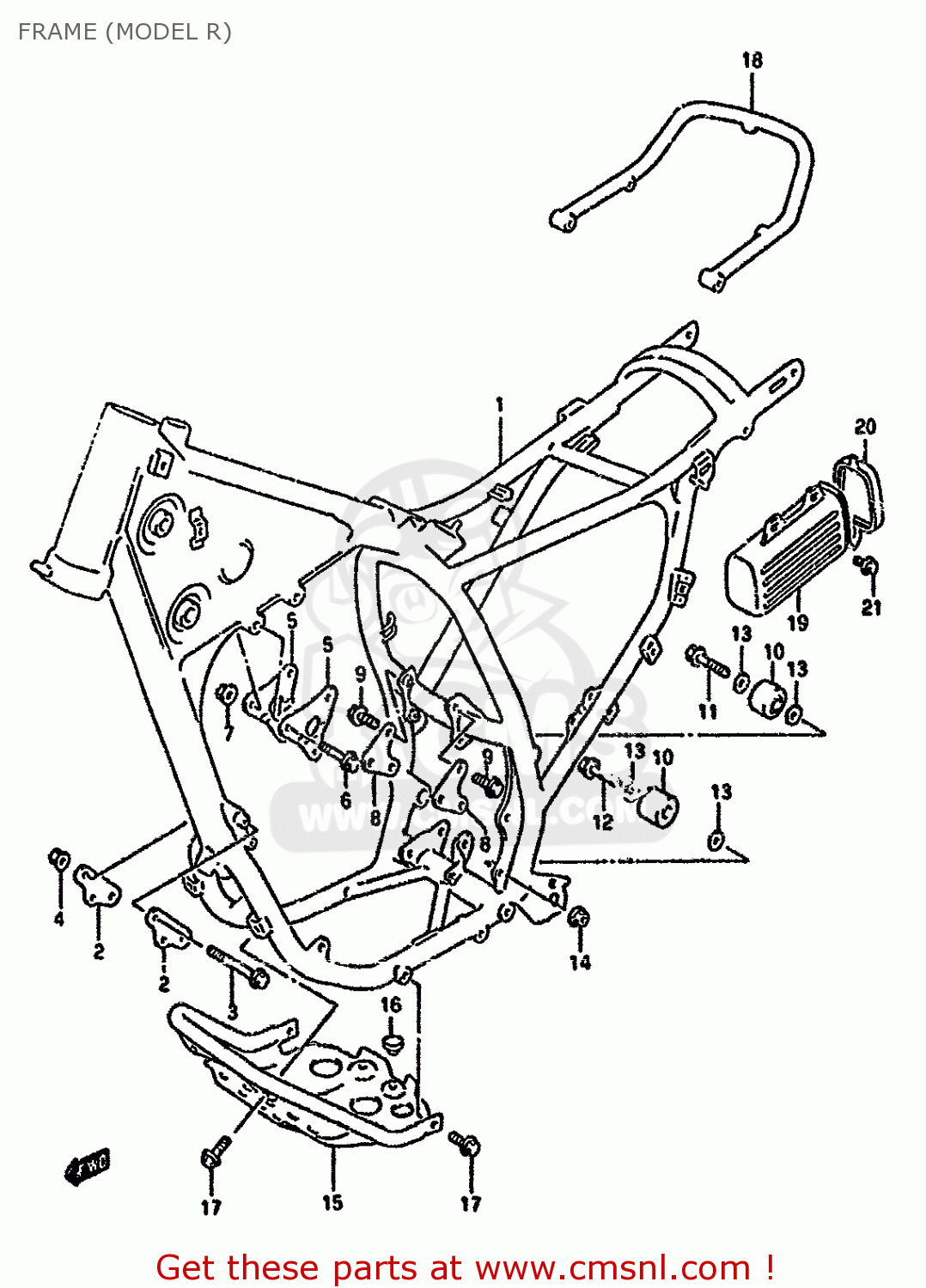

Frame (model r) diagram DR350S 1993 (P) (E02 E04 E21 E22 E24 E25 E34 E39 E94)

FRAME (MODEL R) DR350S 1993 (P) (E02 E04 E21 E22 E24 E25 E34 E39 E94)
FRAME (MODEL R) DR350S 1993 (P) (E02 E04 E21 E22 E24 E25 E34 E39 E94)
FRAME (MODEL R) DR350S 1993 (P) (E02 E04 E21 E22 E24 E25 E34 E39 E94)
prices are in EUR
ref
part #
description
quantity
1-1
41100140720NF
ref: 1-1
FOR C3K
FRAME (BLUE)
€ 0.00
1-2
4110014D7224K
ref: 1-2
FOR C3P
FRAME (CHARCOAL)
€ 2,246.00
1-3
4110014D930NF
ref: 1-3
E18,E39 FOR C3K
FRAME (BLUE)
€ 1,972.50
1-4
4110014D9324K
ref: 1-4
E18,E39 FOR C3P
FRAME (CHARCOAL)
€ 0.00
1-5
4110014D530NF
ref: 1-5
E24 FOR C3K
FRAME (BLUE)
€ 0.00
1-6
4110014D5324K
ref: 1-6
E24 FOR C3P
FRAME (CHARCOAL)
€ 0.00
2
4191114D01
ref: 2
PLATE,ENGINE MOUNT FR
4191114D01
€ 21.00
3
0910308294
ref: 3
BOLT(8X85)
0910308294
€ 4.50
4
0915908034
ref: 4
NUT
0915908034
€ 2.00
5
4199114D01
ref: 5
PLATE,ENGINE MOUNT UPR
4199114D01
€ 30.50
6
0910308293
ref: 6
BOLT(8X70)
0910308293
€ 4.50
7
0915908034
ref: 7
NUT
0915908034
€ 2.00
8
4197114D01
ref: 8
PLATE,ENGINE MOUNTING,REAR
4197114D01
€ 21.00
9
0910308283
ref: 9
BOLT(8X16)
€ 2.50
10
4391027C11
ref: 10
ROLLER,CHAIN
4391027C11
€ 36.50
11
0910308178
ref: 11
BOLT(8X38)
0910308178
€ 5.00
12
0910308068
ref: 12
BOLT 8X45
€ 4.50
13
0821108121
ref: 13
WASHER
0821108121
€ 2.00
14
0831320083
ref: 14
NUT
€ 2.50
15
4251014D1013L
ref: 15
PROTECTOR,ENGINE(SILVER)
€ 269.50
16
0932110026
ref: 16
CUSHION
€ 9.00
17
0155008123
ref: 17
BOLT
0155008123
€ 3.50
18-1
4398014D121TS
ref: 18-1
GRIP,REAR (WHITE)
€ 208.50
18-2
4398014D421TS
ref: 18-2
E24
GRIP,REAR (WHITE)
€ 0.00
19
4743114D00
ref: 19
HOLDER,TOOL
4743114D00
€ 25.50
20
4743214D00
ref: 20
CAP,TOOL HOLDER
4743214D00
€ 8.50
21
0911606144
ref: 21
BOLT 6X16
€ 2.50
6
0910308293
ref: 6
BOLT(8X70)
0910308293
€ 4.50
7
0915908034
ref: 7
NUT
0915908034
€ 2.00
8
4197114D01
ref: 8
PLATE,ENGINE MOUNTING,REAR
4197114D01
€ 21.00
9
0910308283
ref: 9
BOLT(8X16)
€ 2.50
10-1
4391027C10
ref: 10-1
MODEL L/M
ROLLER,CHAIN
€ 36.50
10-2
4391027C11
ref: 10-2
MODEL N/P
ROLLER,CHAIN
4391027C11
€ 36.50
11
0910308178
ref: 11
BOLT(8X38)
0910308178
€ 5.00
12
0910308068
ref: 12
BOLT 8X45
€ 4.50
13-1
0916008074
ref: 13-1
MODEL L/M
WASHER(8.5X13X1.6)
0916008074
€ 2.50
13-2
0821108121
ref: 13-2
MODEL N/P
WASHER
0821108121
€ 2.00
14
0831321087
ref: 14
NUT 8MM
€ 2.50
15-1
4251014D1013L
ref: 15-1
PROTECTOR,ENGINE(SILVER)
€ 269.50
15-2
4251014D2013L
ref: 15-2
MODEL N/P E18
PROTECTOR,ENGINE (SILVER)
€ 281.00
16
0932110026
ref: 16
CUSHION
€ 9.00
17
0151708128
ref: 17
BOLT 8X12
0151708128
€ 3.50
18-1
4398014D120NF
ref: 18-1
GRIP,REAR (BLUE)
€ 263.00
18-2
4398014D121AZ
ref: 18-2
MODEL M/N,DR350SHP E
GRIP,REAR (YELLOW)
€ 208.50
18-3
4398014D121TS
ref: 18-3
MODEL P
GRIP,REAR (WHITE)
€ 208.50
18-4
4398014D420NF
ref: 18-4
E15,E24
GRIP,REAR (BLUE)
€ 263.00
18-5
4398014D421AZ
ref: 18-5
MODEL M/N E15,E24
GRIP,REAR (YELLOW)
€ 208.50
18-6
4398014D421TS
ref: 18-6
MODEL P E24
GRIP,REAR (WHITE)
€ 0.00
19
4743114D00
ref: 19
HOLDER,TOOL
4743114D00
€ 25.50
20
4743214D00
ref: 20
CAP,TOOL HOLDER
4743214D00
€ 8.50
21
0911606085
ref: 21
BOLT M6X16
€ 2.50
