OIL PUMP

DR350S 1993 (P) (E02 E04 E21 E22 E24 E25 E34 E39 E94)

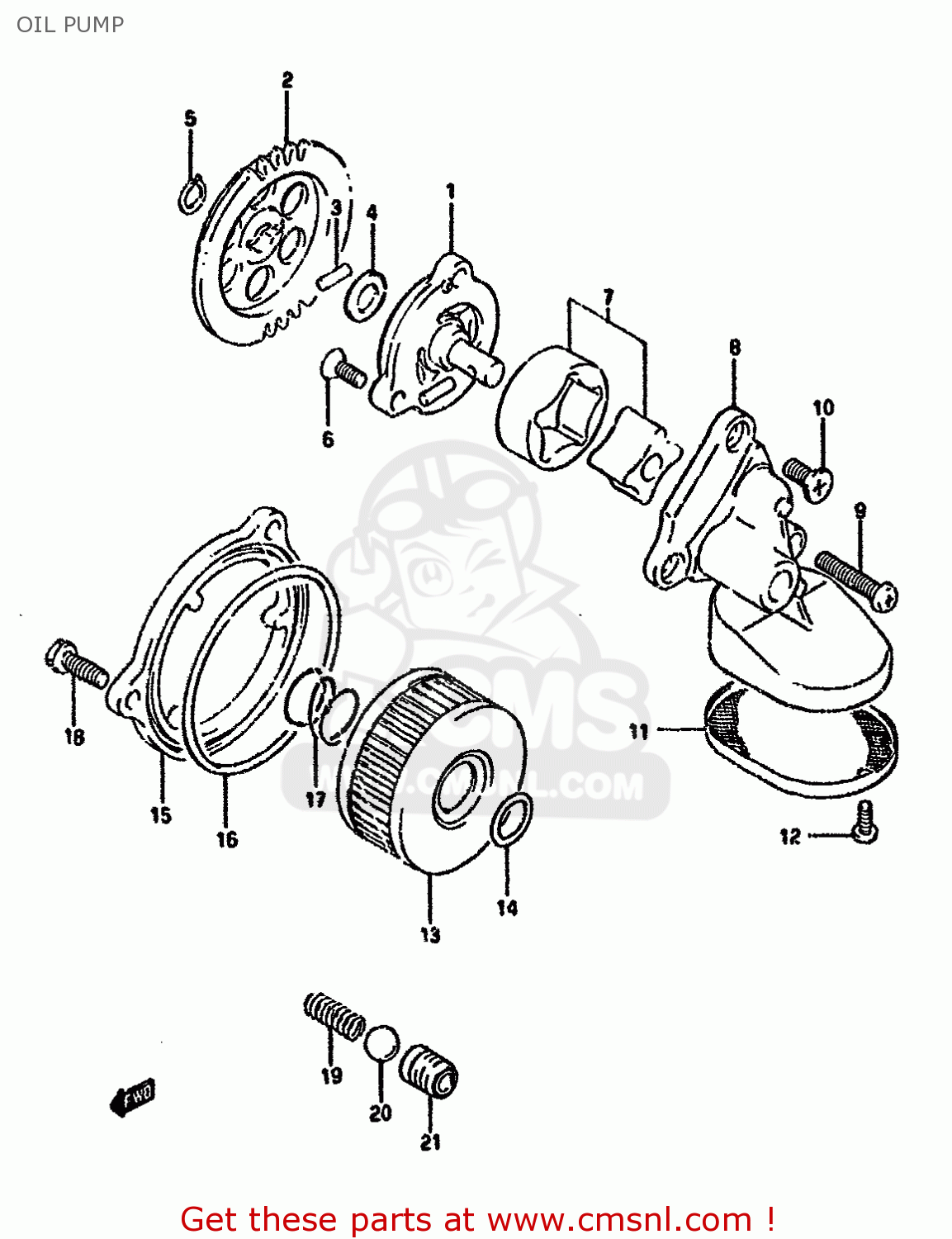

Oil pump diagram DR350S 1993 (P) (E02 E04 E21 E22 E24 E25 E34 E39 E94)

OIL PUMP DR350S 1993 (P) (E02 E04 E21 E22 E24 E25 E34 E39 E94)
OIL PUMP DR350S 1993 (P) (E02 E04 E21 E22 E24 E25 E34 E39 E94)
OIL PUMP DR350S 1993 (P) (E02 E04 E21 E22 E24 E25 E34 E39 E94)
prices are in EUR
ref
part #
description
quantity
1
1640014D01
ref: 1
PUMP ASSY,ENGINE OIL NO.1
1640014D01
€ 164.50
2
1633114D01
ref: 2
GEAR,OIL PUMP DRIVEN (N
1633114D01
€ 30.00
3
0926104009
ref: 3
PIN(4X15.8)
0926104009
€ 1.50
4
0822110185
ref: 4
SHIM
0822110185
€ 2.00
5
0833131106
ref: 5
CIRCLIP,10MM
0833131106
€ 2.00
6
0212206166
ref: 6
SCREW M6X1X16
0212206166
€ 2.00
7
1641014D00
ref: 7
ROTOR SET,OIL PUMP,NO.2
1641014D00
€ 45.00
8
1643114D01
ref: 8
COVER,OIL PUMP NO.2
1643114D01
€ 73.50
9
0211206306
ref: 9
SCREW,6X30
0211206306
€ 2.50
10
0212206166
ref: 10
SCREW M6X1X16
0212206166
€ 2.00
11
1652014D00
ref: 11
STRAINER,OIL PUMP NO.2
1652014D00
€ 11.00
12-1
0211205106
ref: 12-1
MODEL L/M/N/P
SCREW 5X10
€ 2.00
12-2
0211205103
ref: 12-2
MODEL R
SCREW
0211205103
€ 2.00
13
1651038240
ref: 13
FILTER ASSY,ENGINE OIL
1651038240
€ 7.50
14
0928016005
ref: 14
O RING(D:2.4,ID:15.8)
0928016005
€ 1.50
15
1651214D00
ref: 15
CAP,OIL FILTER
1651214D00
€ 23.50
16
0928072001
ref: 16
O RING(D:2.4,ID:73)
0928072001
€ 5.00
17
0944021004
ref: 17
SPRING
0944021004
€ 13.00
18-1
0154706207
ref: 18-1
MODEL L/M/N/P
BOLT
0154706207
€ 2.50
18-2
0154706203
ref: 18-2
MODEL R
SCREW
0154706203
€ 2.50
19
0944007073
ref: 19
MODEL P/R
SPRING
0944007073
€ 4.00
20
0611112004
ref: 20
MODEL P/R
BALL
0611112004
€ 1.50
21
1644214D00
ref: 21
MODEL P/R
SEAT,OIL CHECK VALVE
1644214D00
€ 28.50
