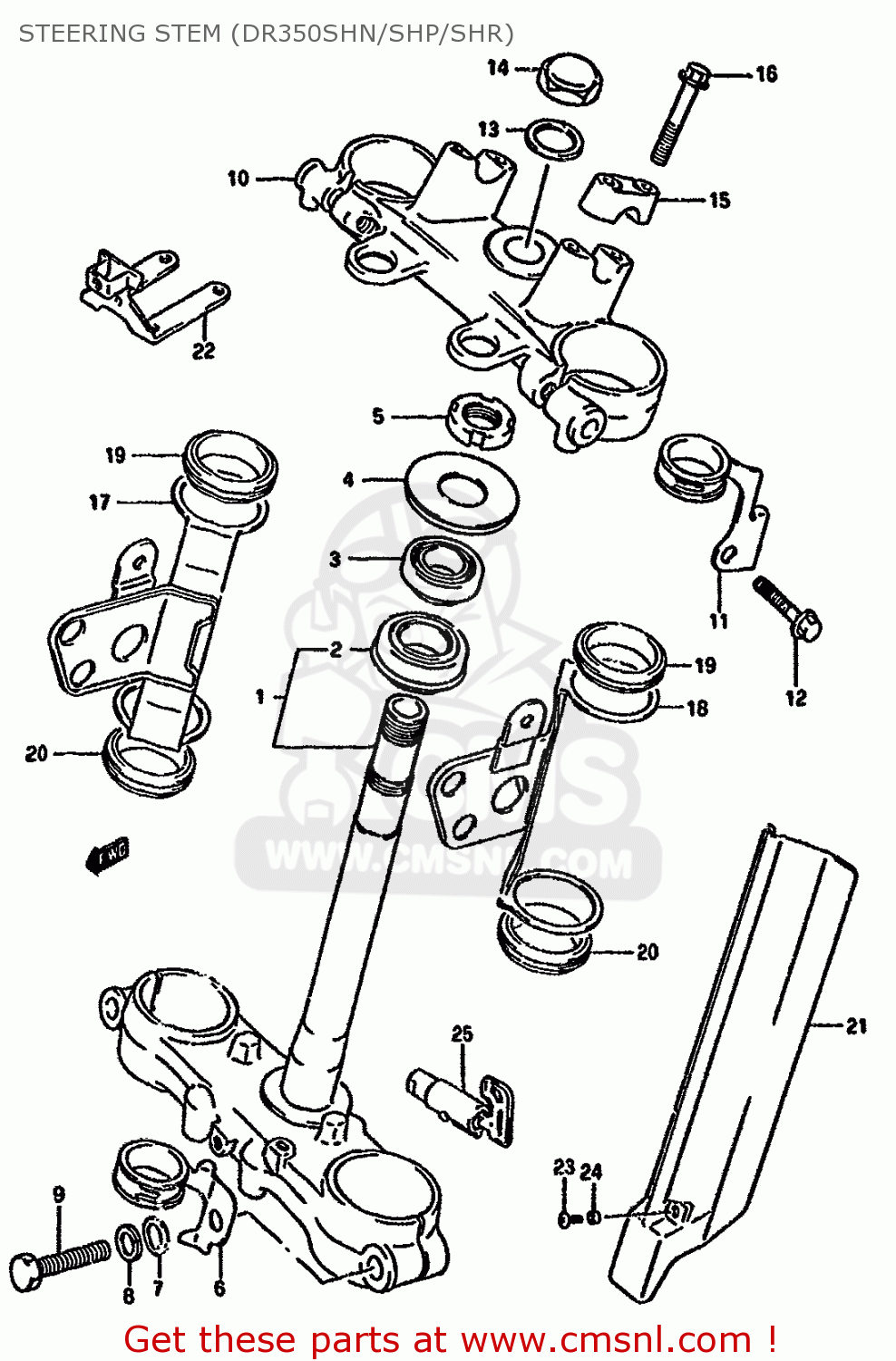

STEERING STEM (DR350SHN/SHP/SHR)

ref

part #

description

quantity

1

5141014E00
ref: 1

STEM,STEERING

€ 451.00

2

0926530009
ref: 2

BEARING(30X55X17)

€ 49.50

3

0926525008
ref: 3

TAPER,ROLLER BEARING

€ 48.50

4

5164340200
ref: 4

SEAL,STEERING UPR DUST

€ 7.50

5

5163140200
ref: 5

NUT,STEERING STEM

€ 12.00

6

5145308D00
ref: 6

GUIDE,CABLE LWR,L

€ 0.00

7

0832211107
ref: 7

WASHER

€ 2.50

8

0832131108
ref: 8

LOCK WASHER

€ 2.00

9

5145108D00
ref: 9

BOLT,STEERING STEM

€ 0.00

10

5131114E00
ref: 10

HEAD,STEERING STEM

€ 259.50

11

5128803D10
ref: 11

GUIDE,CABLE UPR,L

€ 21.00

12

0151710505
ref: 12

BOLT

€ 3.50

13

5135314D00
ref: 13

NUT

€ 10.50

14-1

5135303D00
ref: 14-1
MODEL N/P

NUT,STEM HEAD

€ 21.50

14-2

5135324B00
ref: 14-2
MODEL R

NUT,CAP

€ 21.50

15

5621127200291
ref: 15

HOLDER,HANDLE UPR

€ 13.50

16

0151708355
ref: 16

BOLT

€ 3.50

17

5153014D10
ref: 17

BRACKET,HEADLAMP RH

€ 43.50

18

5154014D10
ref: 18

BRACKET,HEADLAMP LH

€ 43.50

19

5155208D00
ref: 19

DAMPER,HEADLAMP HSG BRKT UPR

€ 8.50

20

5155347D10
ref: 20

DAMPER,HEADLAMP HSG LWR

€ 11.50

21-1

5120108D00
ref: 21-1

PROTECTOR,FR FORK,R

€ 48.00

21-2

5120208D00
ref: 21-2

PROTECTOR,FR FORK,L

€ 48.00

22

5155014D00
ref: 22

BRACKET,HEADLAMP COVER

€ 18.00

23

0214205128
ref: 23

SCREW

€ 1.50

24

0918005015
ref: 24

SPACER (5.5X8X4)

€ 3.00

25

5190030901
ref: 25
PURCHASE LOCALLY

LOCK ASSY,STEERING(NEIMAN)

€ 168.50
