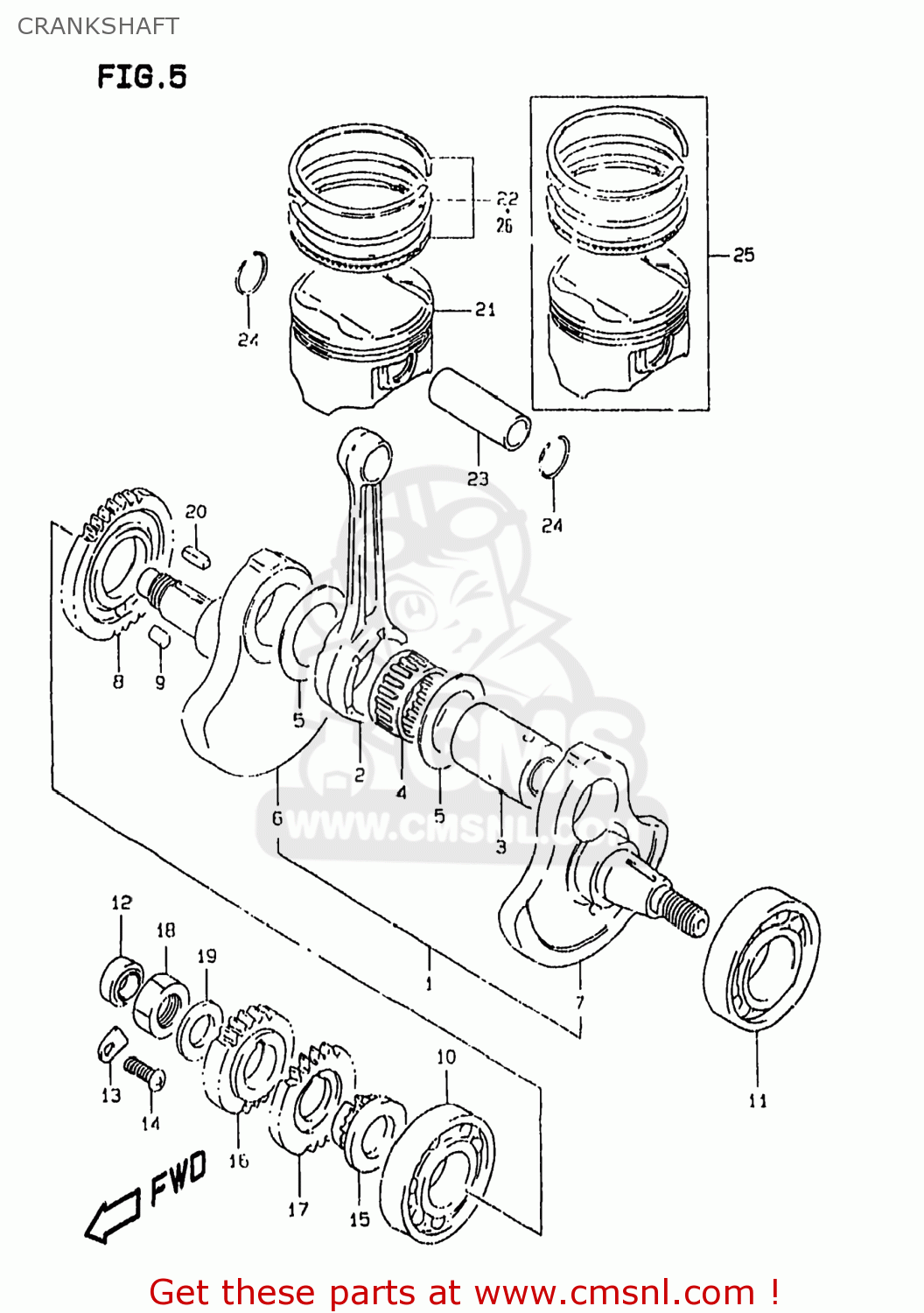

CRANKSHAFT

ref

part #

description

quantity

1

1220014E00
ref: 1

CRANKSHAFT ASSY

€ 971.50

2

1216114D00
ref: 2

ROD,CONNECTING

€ 98.50

3

1221014D02
ref: 3
12210-14D03

PIN COMP,CRANK

€ 56.00

4

0926334005
ref: 4

BEARING(34X43X22)

€ 45.50

5

0916034003
ref: 5

WASHER(34X52X1)

€ 6.50

6

1222114D01
ref: 6

CRANKSHAFT,R

€ 302.50

7

1226114E00
ref: 7

CRANKSHAFT,L

€ 233.50

8

1266114D00
ref: 8

GEAR,CRANK BAL DRIVE(NT:37)

€ 118.00

9

0422108149
ref: 9

PIN

€ 2.50

10

0926230077
ref: 10

BEARING(30X72X19)

€ 47.50

11

0926235039
ref: 11
09262-35038

BEARING 35X72X17

€ 38.00

12

0928214003
ref: 12

SEAL,OIL(14X24X6)

€ 8.00

13

2474218A00
ref: 13

RETAINER,BEARING

€ 2.00

14

0211206123
ref: 14
02112-0612A

SCREW

€ 1.50

15

1273114D00
ref: 15

SPROCKET,CAM CHAIN DRIVE

€ 50.00

16-1

2111115D20
ref: 16-1
21111-15D21

GEAR,PRIMARY DRIVE (NT:

€ 50.00

16-2

2111115D21
ref: 16-2

GEAR,PRIMARY DRIVE

€ 50.00

17

1632115D00
ref: 17
16321-15D01

GEAR,OIL PUMP DRIVE (NT

€ 36.00

18

0914018012
ref: 18

NUT

€ 8.00

19

0916418007
ref: 19
09164-18001

WASHER

€ 3.00

20

0942105009
ref: 20

KEY

€ 8.00

21

1211114D030F0
ref: 21

PISTON

€ 81.50

22

1214014D10
ref: 22

RING SET,PISTON

€ 57.00

23

1215124A00
ref: 23

PIN,PISTON

€ 18.50

24

0938120004
ref: 24

CIRCLIP,PISTON PIN

€ 2.00

25-1

1210014D01050
ref: 25-1

PISTON SET(OS:0.5)

€ 133.00

25-2

1210014D01100
ref: 25-2

PISTON SET (OS:1.0)

€ 107.00

26-1

1214014D10050
ref: 26-1

RING SET,PISTON(OS:0.50)

€ 70.00

26-2

1214014D10100
ref: 26-2

RING SET,PISTON(OS:1.0)

€ 63.00

all assemblies
