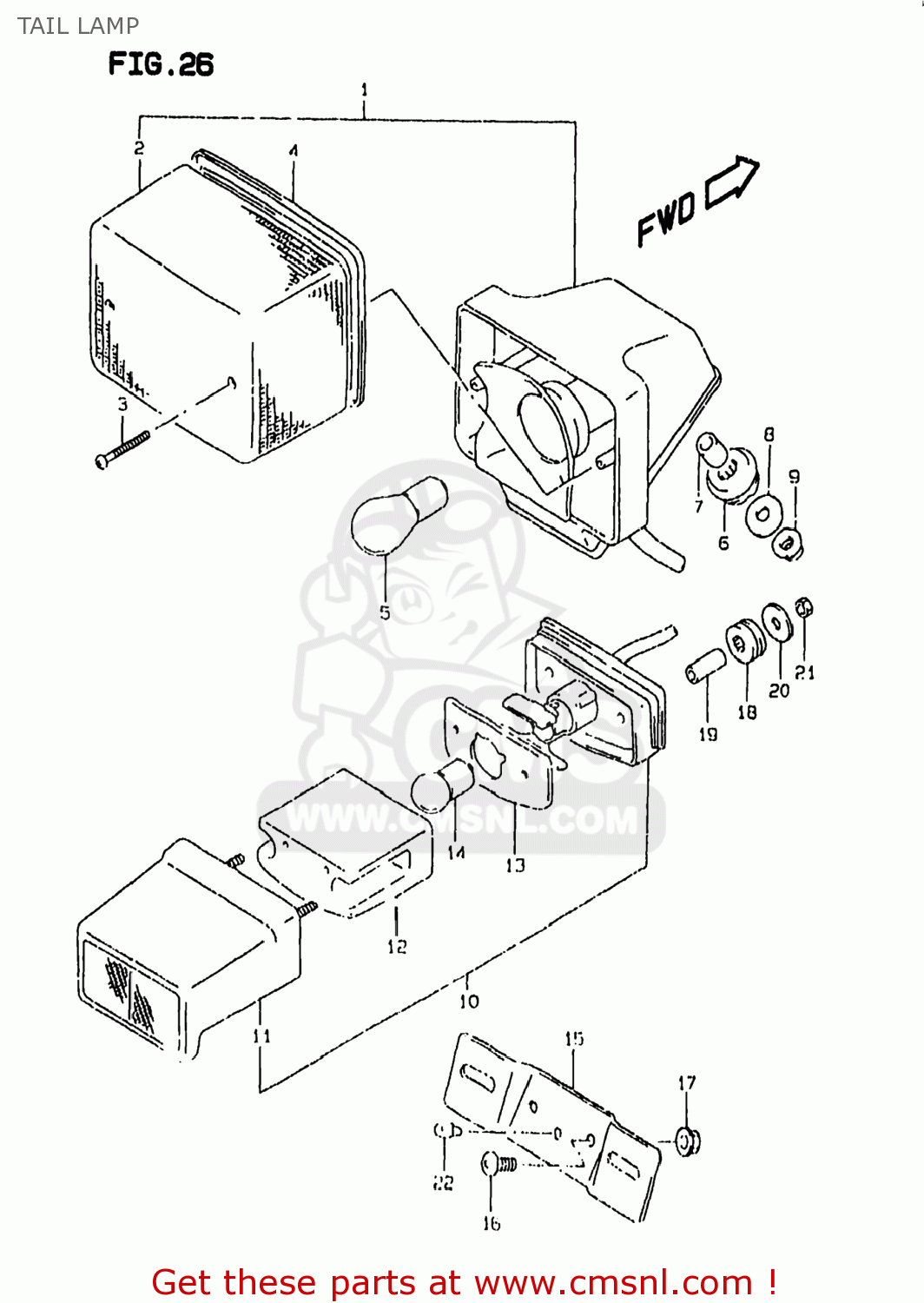

TAIL LAMP

ref

part #

description

quantity

1

3571014D30
ref: 1

LAMP ASSY,RR COMBINATION

€ 0.00

2

3571214D30
ref: 2

LENS,TAIL LAMP

€ 36.00

3

0912504501
ref: 3

SCREW(4X45)

€ 3.00

4

3571314D30
ref: 4

GASKET,LENS (NAS)

€ 5.00

5

0947112083
ref: 5
09471-12128

BULB(12V21/5W)

€ 6.00

6

0932009028
ref: 6

CUSHION

€ 3.00

7

0918006263
ref: 7

SPACER(6.5X9X9)

€ 2.00

8

0916006088
ref: 8

WASHER(6.5X20X1.6)

€ 2.00

9

0831000063
ref: 9
08310-0006A

NUT 6MM

€ 2.00

10

3591014D00
ref: 10

LAMP ASSY,LICENSE

€ 0.00

11

3591714D00
ref: 11

REFLECTOR/COVER

€ 0.00

12

3591238A30
ref: 12

LENS

€ 11.50

13

3591338A30
ref: 13

GASKET,LICENSE LAMP (NAS)

€ 2.00

14

0947112140
ref: 14
09471-12058

BULB(12V5W,BF150-40160A)

€ 4.00

15

3592714D30
ref: 15

BRACKET,LICENSE PLATE

€ 0.00

16

0214206163
ref: 16
02142-0616A

SCREW

€ 2.50

17

0831610063
ref: 17
08316-1006B

NUT

€ 2.50

18

0932009009
ref: 18

CUSHION

€ 5.00

19

0918005061
ref: 19

SPACER(5.5X9.5X28.5)

€ 2.50

20

0916005501
ref: 20

WASHER(5.5X20X1.2)

€ 2.00

21

0831000053
ref: 21
08310-0005A

NUT

€ 2.50

22

0932106029
ref: 22
09321-06030

CUSHION

€ 3.00

all assemblies
