HEADLAMP COVER

DR350SE 1997 (V) USA (E03)

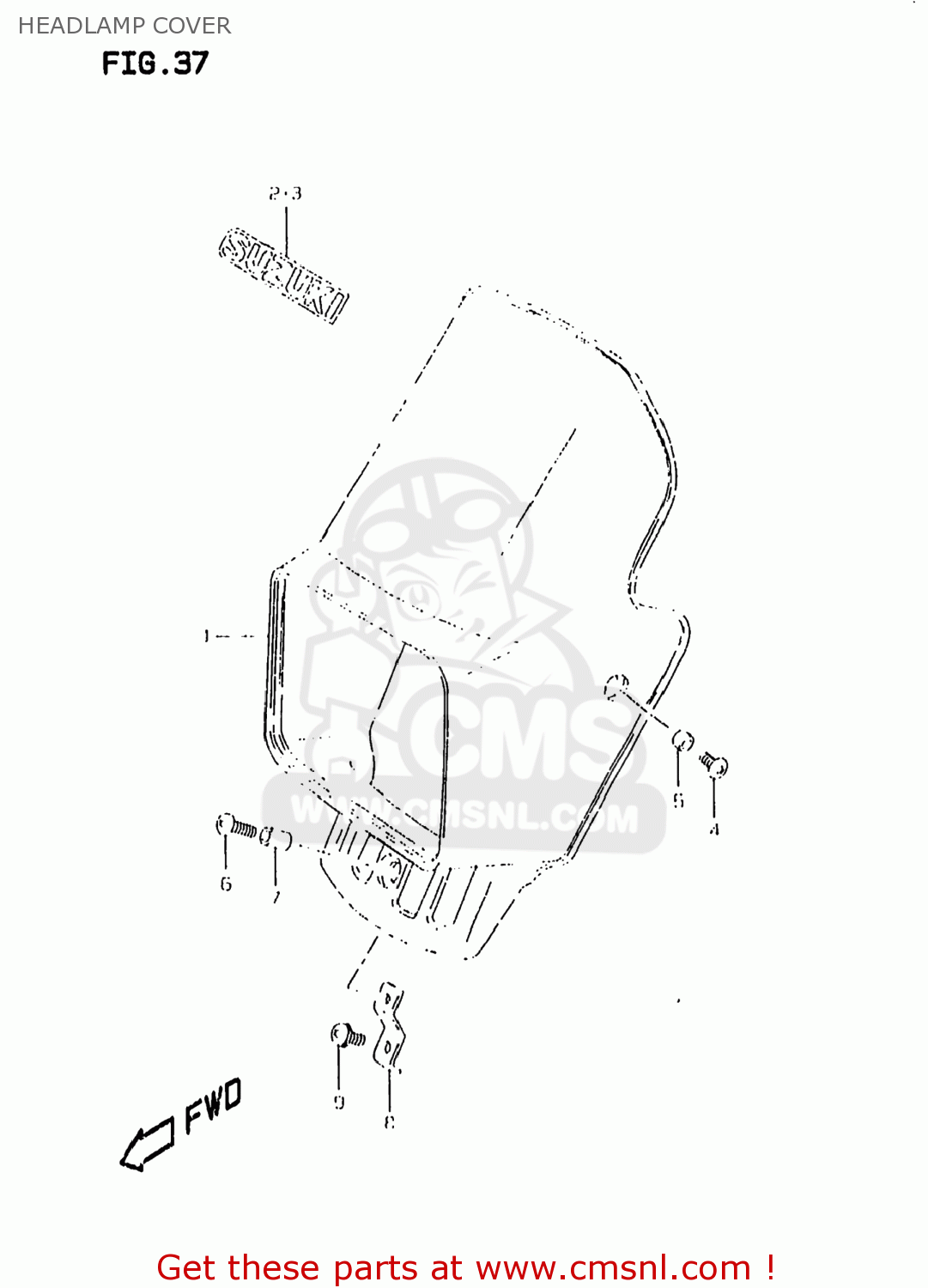

Headlamp cover diagram DR350SE 1997 (V) USA (E03)

HEADLAMP COVER DR350SE 1997 (V) USA (E03)

HEADLAMP COVER DR350SE 1997 (V) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

5181114A2030H
ref: 1

COVER,HEADLAMP

€ 65.00

2

6817435B00E9G
ref: 2

EMBLEM,HEADLAMP COVER

€ 6.50

3-1

6817144B00F6F
ref: 3-1

EMBLEM

€ 7.00

3-2

6817144B00L5D
ref: 3-2

EMBLEM

€ 7.50

4

0214206127
ref: 4

SCREW 6X12

€ 1.50

5

0918006245
ref: 5

SPACER(6.1X8X3.5)

€ 3.00

6

0214206207
ref: 6

SCREW

€ 2.00

7

0918006249
ref: 7

SPACER(6.1X8X12)

€ 2.50

8

5186014D00
ref: 8

PLATE,HEADLAMP COVER

€ 5.50

9

0211235103
ref: 9
02112-3510B

SCREW

€ 2.00
