FRONT WHEEL (MODEL W/X)
DR350SE 1997 (V) USA (E03)

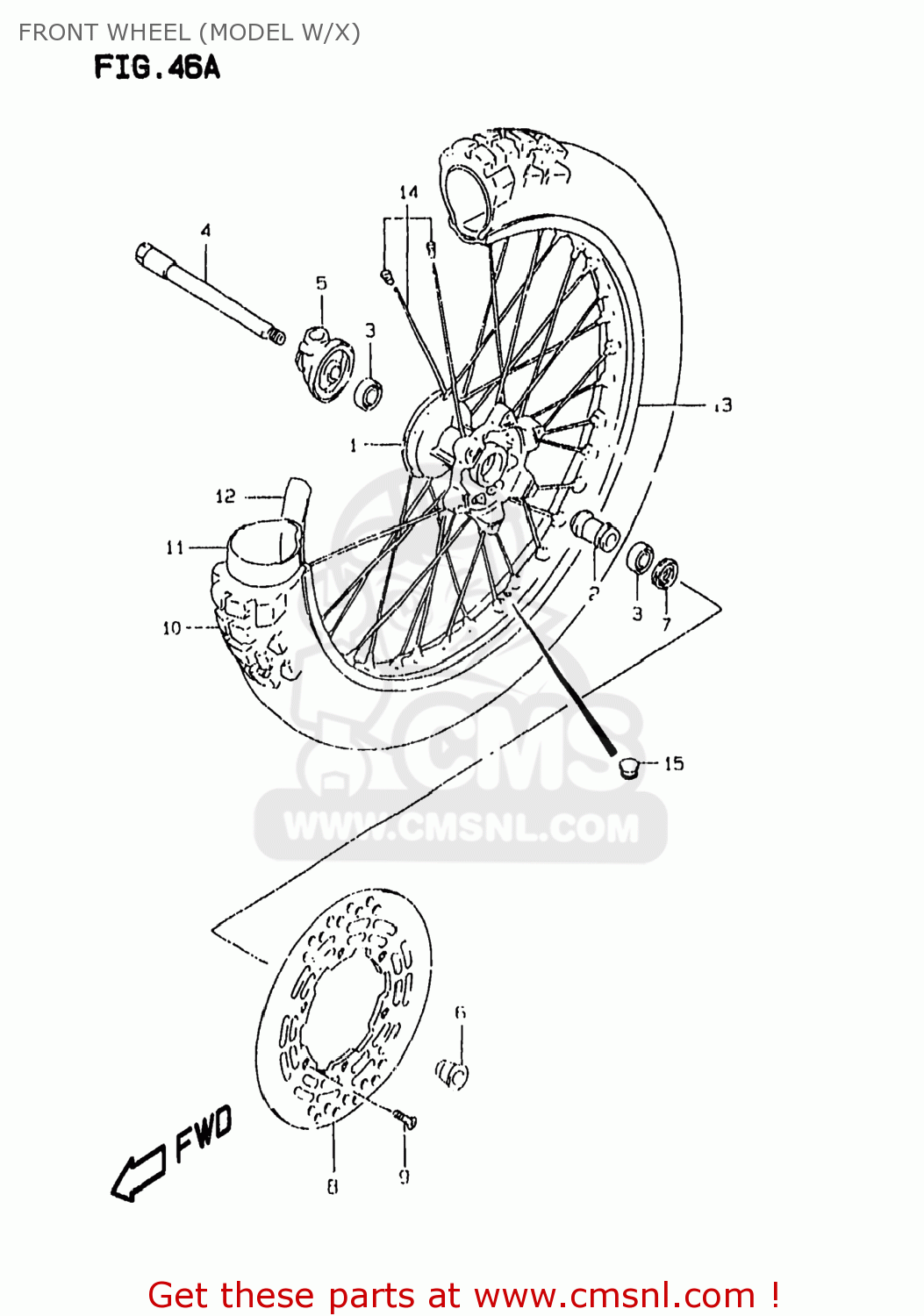

Front wheel (model w/x) diagram DR350SE 1997 (V) USA (E03)
FRONT WHEEL (MODEL W/X) DR350SE 1997 (V) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5411129E00
ref: 1
HUB,FR WHEEL
€ 155.50
2
5473001B00
ref: 2
SPACER,FR HUB BEARING
€ 34.00
3
0812360037
ref: 3
BEARING
€ 16.50
4
5471105D01
ref: 4
AXLE,FR
€ 52.00
5
5460005D00
ref: 5
BOX ASSY,SPEEDOMETER GEAR
€ 66.00
6
5475105D00
ref: 6
SPACER,FR AXLE,L
€ 12.50
7
0928423001
ref: 7
SEAL,OIL(23X35X6)
€ 5.00
8
5922113E00
ref: 8
DISC,FR BRAKE,L
€ 127.00
9
0912006011
ref: 9
09120-06014
SCREW
€ 2.50
10
5511015D50
ref: 10
TIRE,FR(80/100 21)
€ 0.00
10
5511015D50
ref: 10
TIRE,FR(80/100 21)
€ 0.00
11
5520016510
ref: 11
TUBE
€ 32.50
12
5526114540
ref: 12
PROTECTOR,WHEEL INNER
€ 5.00
13
5531108D01
ref: 13
RIM,FR WHEEL(1.60X21)
€ 235.00
14
5532044B00
ref: 14
SPOKE SET,FR WHEEL
€ 47.50
15
0925008013
ref: 15
CAP(OD:12)
€ 2.00
