FRONT CALIPER (MODEL V)
DR350SE 1997 (V) USA (E03)

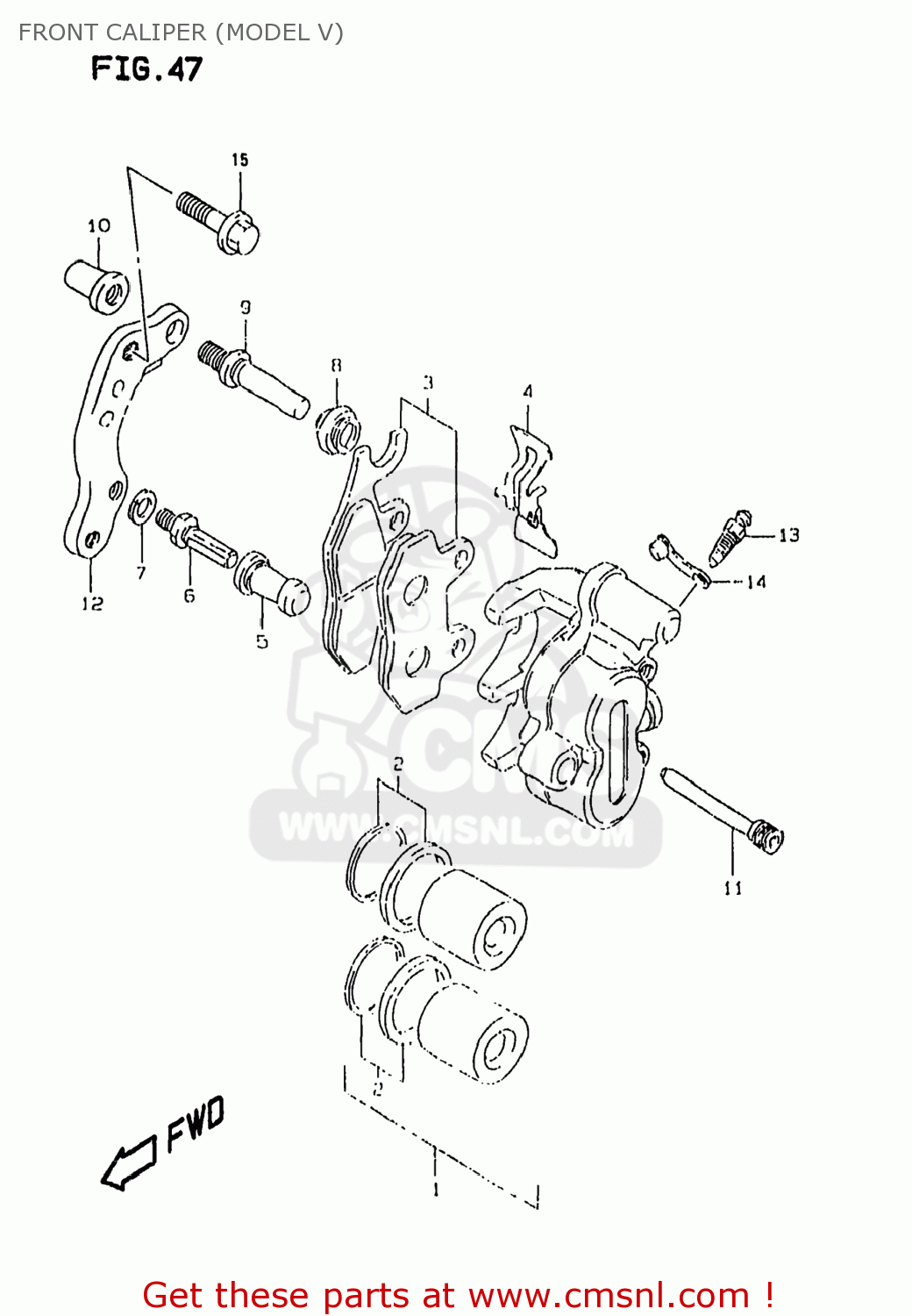

Front caliper (model v) diagram DR350SE 1997 (V) USA (E03)
FRONT CALIPER (MODEL V) DR350SE 1997 (V) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
0
5930008D00
ref: 0
59300-08D00-999
CALIPER ASSEMBLY,FRONT,LEFT
€ 39.50
1
5930026840
ref: 1
PISTON SET
€ 66.50
2
5930013820
ref: 2
SEAL SET,PISTON
€ 34.50
3
5930008810
ref: 3
PAD SET (NAS)
€ 47.00
4
5931500B20
ref: 4
SPRING
€ 8.00
5
5938613A00
ref: 5
BOOT
€ 6.50
6
5938213A00
ref: 6
BOLT,PIN
€ 6.50
7
5931413A00
ref: 7
WASHER,WAVE
€ 2.00
8
5930314500
ref: 8
BOOT
€ 5.50
9
5938700B20
ref: 9
PIN,SLIDE
€ 12.50
10
5938800B20
ref: 10
NUT
€ 10.00
11
5934500B20
ref: 11
PIN,HOLDER
€ 9.50
12
5935100B20
ref: 12
BRACKET
€ 60.50
13
5912101A00
ref: 13
BLEEDER
€ 8.50
14
5912201A00
ref: 14
CAP,BLEEDER
€ 4.50
15
0910308226
ref: 15
BOLT(8X24)
€ 2.00
