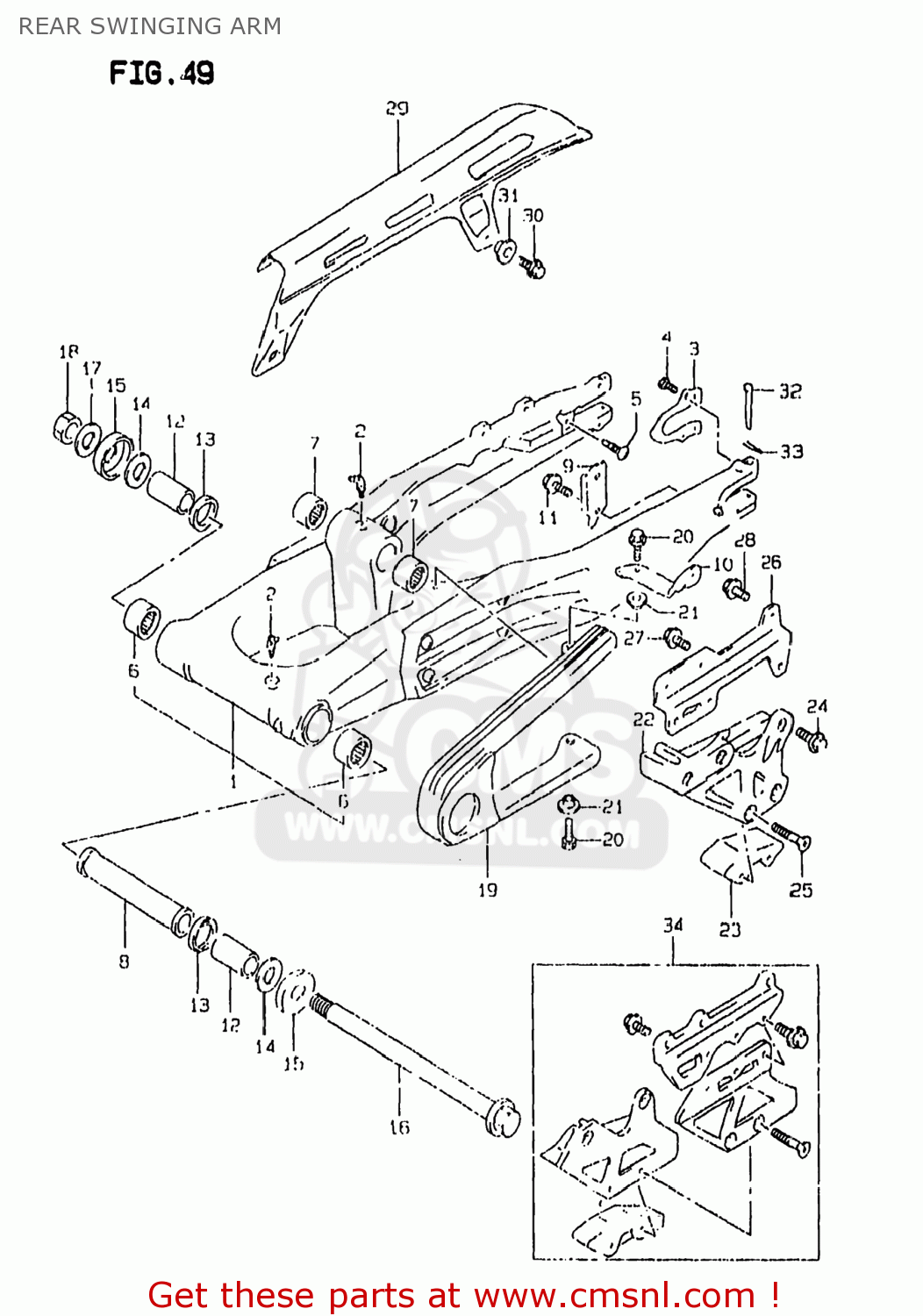

REAR SWINGING ARM

ref

part #

description

quantity

1

6100014D50
ref: 1

SWINGINGARM ASSY,RR

€ 892.50

2

0835131008
ref: 2
08351-3100A

NIPPLE,GREASE

€ 10.50

3

6112814D00
ref: 3

PLATE,SWING ARM RR

€ 8.00

4

0912505072
ref: 4
09125-05072-XC0

SCREW (5X8)

€ 2.50

5

0913910001
ref: 5

SCREW (M10X21)

€ 6.50

6

0926322017
ref: 6

BEARING(22X29X30)

€ 18.50

7

0926320071
ref: 7

BEARING(20X27X23.5)

€ 21.50

8

0918017097
ref: 8

SPACER,SWING ARM PIVOT,CENTER

€ 12.50

9

6114415D10
ref: 9

PLATE,CHAIN CASE FTG RR

€ 17.50

10

6114015D10
ref: 10

PLATE,CHAIN CASE FTG FR

€ 10.00

11

0910305013
ref: 11

BOLT

€ 1.50

12

6125114D00
ref: 12

SPACER,SWGARM PIVOT BRG

€ 11.00

13

0928522001
ref: 13

SEAL,OIL(22X29X4)

€ 5.00

14

0821117341
ref: 14

WASHER

€ 2.00

15

6126228C10
ref: 15

COVER,SWINGINGARM PIVOT

€ 4.50

16

6121114D00
ref: 16

SHAFT,SWINGING ARM PIVOT

€ 49.50

17

0832201163
ref: 17
08322-0116A

WASHER, FIXED DRIVE FACE

€ 2.00

18

0915916007
ref: 18

NUT

€ 10.50

19

6127314D00
ref: 19

BUFFER,CHAIN TOUCH DEFENSE

€ 34.00

20

0150006163
ref: 20
01500-0616A

BOLT

€ 2.00

21

0916906057
ref: 21

WASHER

€ 4.00

22

6134015E00
ref: 22

GUIDE,CHAIN

€ 39.50

23

6134815E00
ref: 23

DEFENSE,CHAIN GUIDE

€ 14.50

24

0155006163
ref: 24
01550-0616A

BOLT

€ 2.50

25

0212206503
ref: 25
02122-0650B

SCREW

€ 3.00

26

6115414D00
ref: 26

BRACKET,CHAIN GUIDE

€ 39.00

27

0155006163
ref: 27
01550-0616A

BOLT

€ 2.50

28

0155006123
ref: 28
01550-0612A

BOLT

€ 2.50

29

6131014A00
ref: 29

CASE,CHAIN

€ 49.00

30-1

0155006103
ref: 30-1
01550-0610A

BOLT

€ 2.50

30-2

0911606096
ref: 30-2

BOLT(6X10)

€ 2.00

31

0916906026
ref: 31

WASHER

€ 2.00

32

0920006065
ref: 32

PIN

€ 4.00

33

0938506012
ref: 33

CLIP

€ 2.00

34

6130014810
ref: 34
61300-14811

GUIDE SET,CHAIN

€ 123.50
