CRANKCASE COVER
DR350SE 1998 (W) USA (E03)

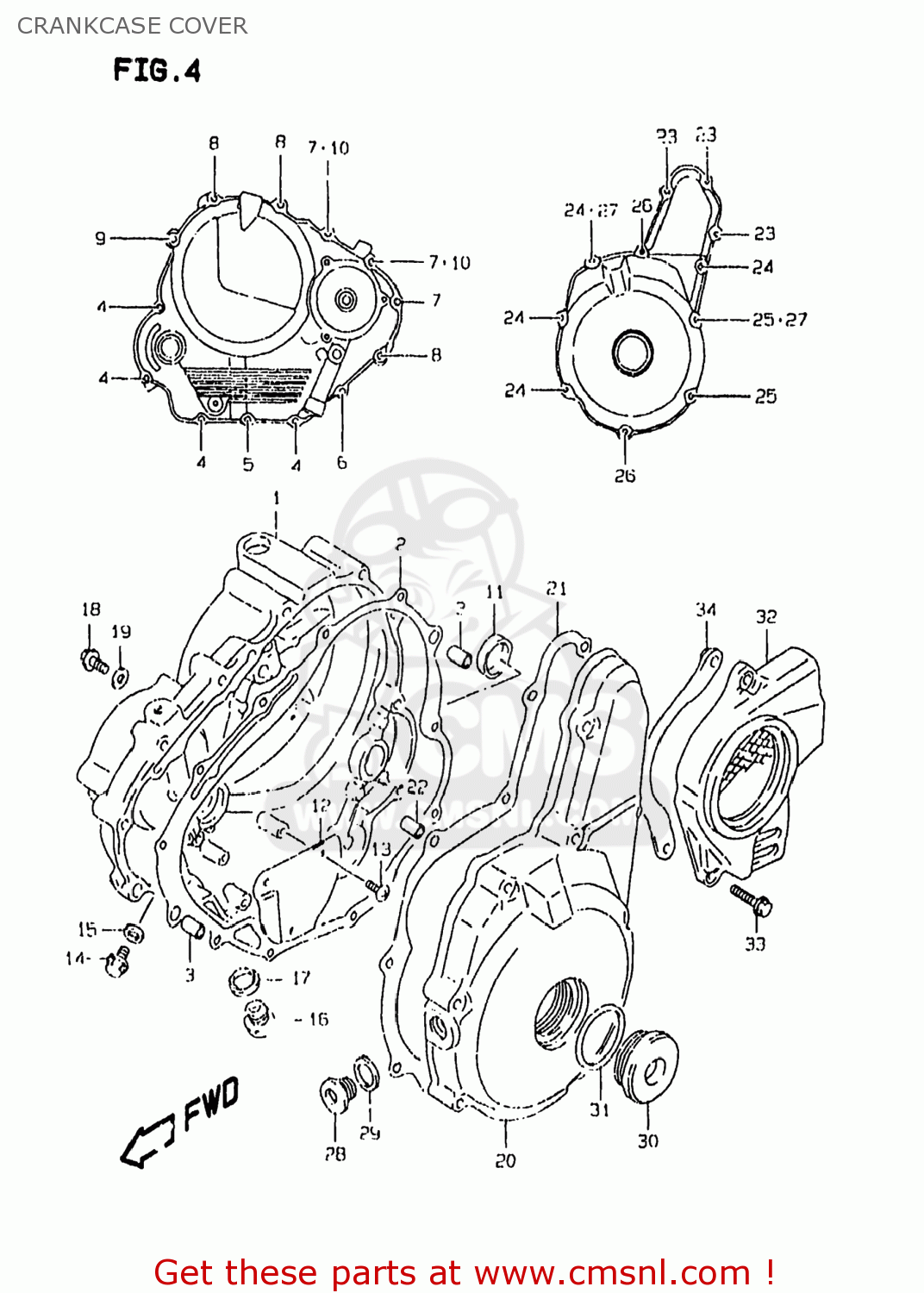

Crankcase cover diagram DR350SE 1998 (W) USA (E03)
CRANKCASE COVER DR350SE 1998 (W) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
1134114D06
ref: 1-1
11340-47810
COVER,CLUTCH
€ 261.00
1-2
1134047810
ref: 1-2
COVER SET,CLUTCH
€ 261.00
2
1148214D03
ref: 2
GASKET,CLUTCH COVER (NAS)
€ 24.50
3
0421109149
ref: 3
PIN
€ 2.00
4
0154706253
ref: 4
01547-0625B
SCREW
€ 2.50
5
0154706303
ref: 5
01547-0630B
BOLT,G/S SWITC
€ 3.00
6
0154706353
ref: 6
01547-0635B
BOLT
€ 3.00
7
0154706403
ref: 7
01547-0640B
BOLT
€ 3.00
8
0154706603
ref: 8
01547-0660B
BOLT
€ 3.50
9
0154706653
ref: 9
01547-0665B
BOLT
€ 2.00
10
0916806024
ref: 10
GASKET(5.8X11X1.2) (NAS)
€ 2.00
11
1134215D00
ref: 11
PLUG,CLUTCH COVER KICK
€ 7.00
12
1134914D00
ref: 12
SEPARATOR,OIL RETURN
€ 4.50
13
0214205103
ref: 13
02142-0510B
SCREW
€ 2.50
14
0910306078
ref: 14
BOLT(6X8)
€ 2.00
15
0916806004
ref: 15
GASKET(6.2X11X1).2 (NAS)
€ 1.50
16
0924810007
ref: 16
PLUG(10X6.8)
€ 4.50
17
0916810002
ref: 17
GASKET(10X14X3.6) (NAS)
€ 2.00
18-1
0912806043
ref: 18-1
09128-06058
SCREW (6X10)
€ 2.00
18-2
0912806044
ref: 18-2
SCREW(6X10)
€ 1.50
19
0916806024
ref: 19
GASKET(5.8X11X1.2) (NAS)
€ 2.00
20
1135115D02
ref: 20
COVER,MAGNETO
€ 296.50
21
1148315D02
ref: 21
GASKET,MAGNETO COVER (NAS)
€ 18.00
22
0421109149
ref: 22
PIN
€ 2.00
23
0154706253
ref: 23
01547-0625B
SCREW
€ 2.50
24
0154706403
ref: 24
01547-0640B
BOLT
€ 3.00
25
0154706453
ref: 25
01547-0645B
BOLT
€ 3.00
26
0154706503
ref: 26
01547-0650B
BOLT
€ 3.50
27
0916806024
ref: 27
GASKET(5.8X11X1.2) (NAS)
€ 2.00
28
0924814005
ref: 28
PLUG,14X12
€ 5.00
29
0916814002
ref: 29
09168-14004
GASKET(13.8X18.8X4.8) (NAS)
€ 2.50
30
092593601620H
ref: 30
PLUG(SILVER)
€ 10.50
31
0928033004
ref: 31
O RING(D:3.1,ID:32.7)
€ 2.50
32
1136014D01
ref: 32
COVER,ENGINE SPROCKET
€ 84.00
33
0154706253
ref: 33
01547-0625B
SCREW
€ 2.50
34
2764014D10
ref: 34
PLATE,FR CHAIN GUIDE
€ 14.50
