STARTER CLUTCH
DR350SE 1998 (W) USA (E03)

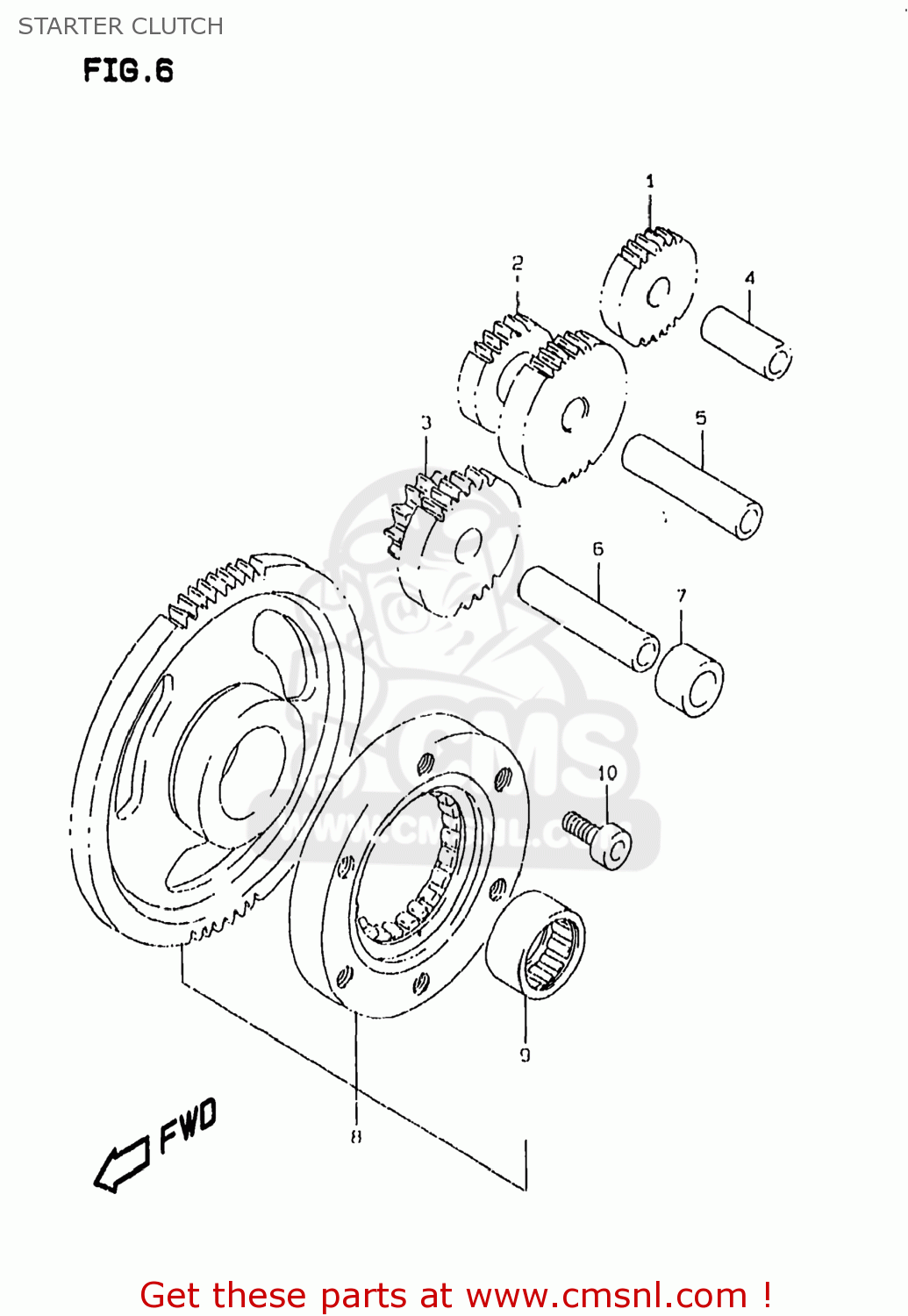

Starter clutch diagram DR350SE 1998 (W) USA (E03)
STARTER CLUTCH DR350SE 1998 (W) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1261115D01
ref: 1
GEAR,STARTER IDLE NO.1(NT:34)
€ 49.00
2
1261215D00
ref: 2
GEAR,STRTR IDLE NO.2(NT:22/47)
€ 90.50
3
1261315D00
ref: 3
GEAR,STARTER IDLE NO.3
€ 61.00
4
0920610012
ref: 4
PIN(6X10X32)
€ 5.00
5
0920610011
ref: 5
PIN(6X10X55.5)
€ 5.00
6
0920612003
ref: 6
PIN(12X55.5)
€ 14.00
7
0918012139
ref: 7
SPACER(12.5X19X13)
€ 5.00
8
1260047820
ref: 8
12600-47821
CLUTCH SET,STARTER
€ 356.00
9
0926329008
ref: 9
BEARING(29X36X18)
€ 29.00
10
0713008163
ref: 10
07130-0816A
BOLT
€ 3.00
