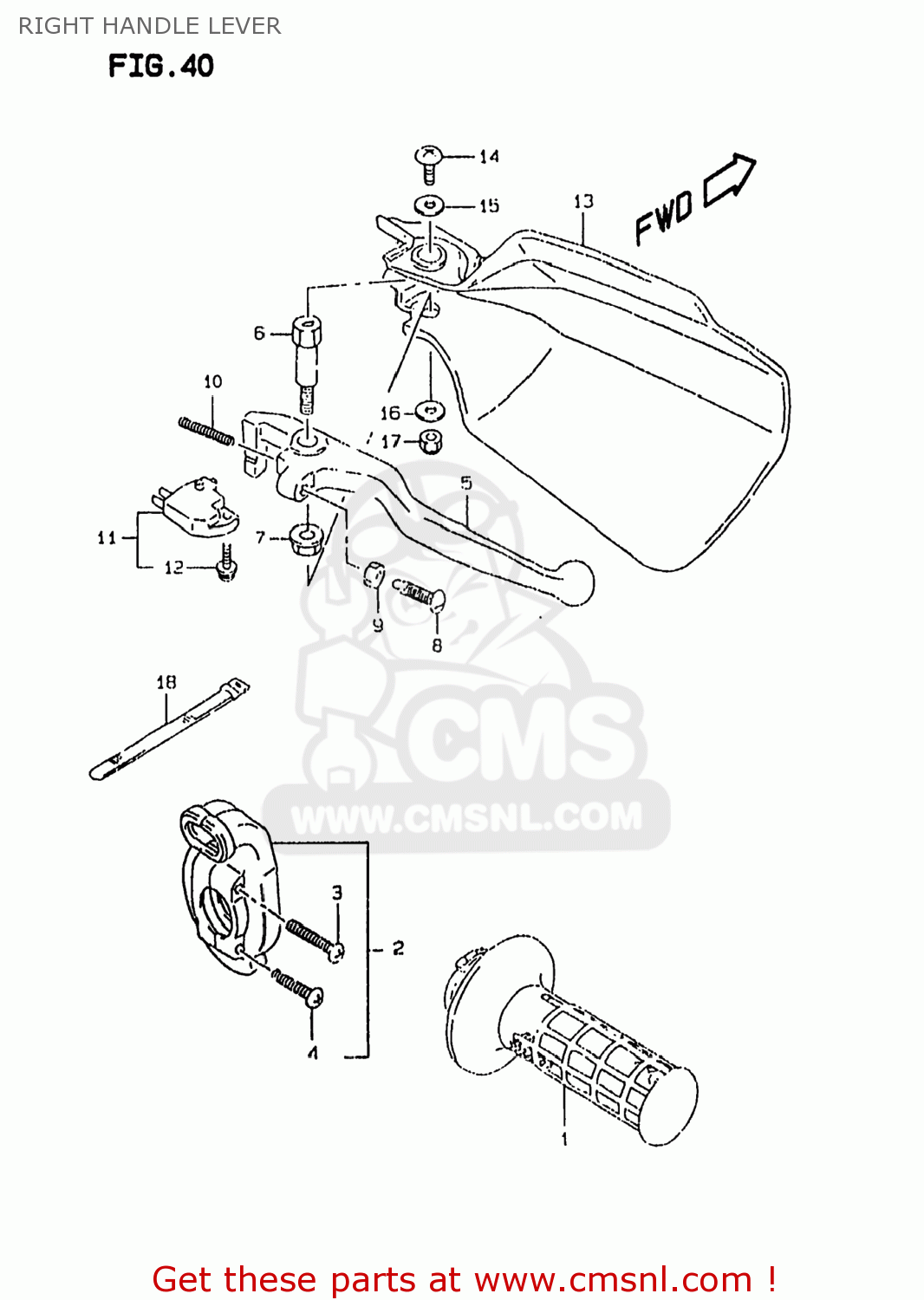

RIGHT HANDLE LEVER

ref

part #

description

quantity

1

5711014D11
ref: 1

GRIP,THROTTLE

€ 25.50

2

5710014D00
ref: 2

CASE ASSY,THROTTLE

€ 24.00

3

0912505066
ref: 3

SCREW(5X25)

€ 2.00

4

0211205203
ref: 4
02112-0520B

SCREW

€ 2.50

5

5742103D00
ref: 5

LEVER,BRAKE

€ 14.50

6

5743105D00
ref: 6

BOLT,BRAKE LEVER PIVOT

€ 9.00

7

0831921068
ref: 7
08319-2106A

NUT 6MM

€ 2.00

8

5743114511
ref: 8

BOLT,ADJUST

€ 3.50

9

0831000053
ref: 9
08310-0005A

NUT

€ 2.50

10

5731814502
ref: 10

SPRING,RETURN

€ 3.00

11

5746017C00
ref: 11
57460-17C01

SWITCH ASSEMBLY,STOP

€ 32.50

12

5746517C00
ref: 12

SCREW

€ 1.50

13-1

5734105D00Z16
ref: 13-1

COVER,KNUCKLE,R

€ 31.50

13-2

5734105D00019
ref: 13-2

COVER,KNUCKLE,RIGHT

€ 21.00

14

0214205107
ref: 14

SCREW

€ 2.50

15-1

0916005017
ref: 15-1
09160-05043

WASHER (5.5X16X1.2)

€ 2.50

15-2

0916005043
ref: 15-2

WASHER(5.5X16X1.2)

€ 2.50

16-1

0916006042
ref: 16-1
09160-06130

WASHER (6.5X17X1.6)

€ 2.00

16-2

0916006130
ref: 16-2

WASHER(6.5X16X1.6)

€ 2.00

17

0831921068
ref: 17
08319-2106A

NUT 6MM

€ 2.00

18

0940712402
ref: 18

CLAMP(L:120)

€ 3.00
