STEERING STEM
DR350SE 1998 (W) USA (E03)

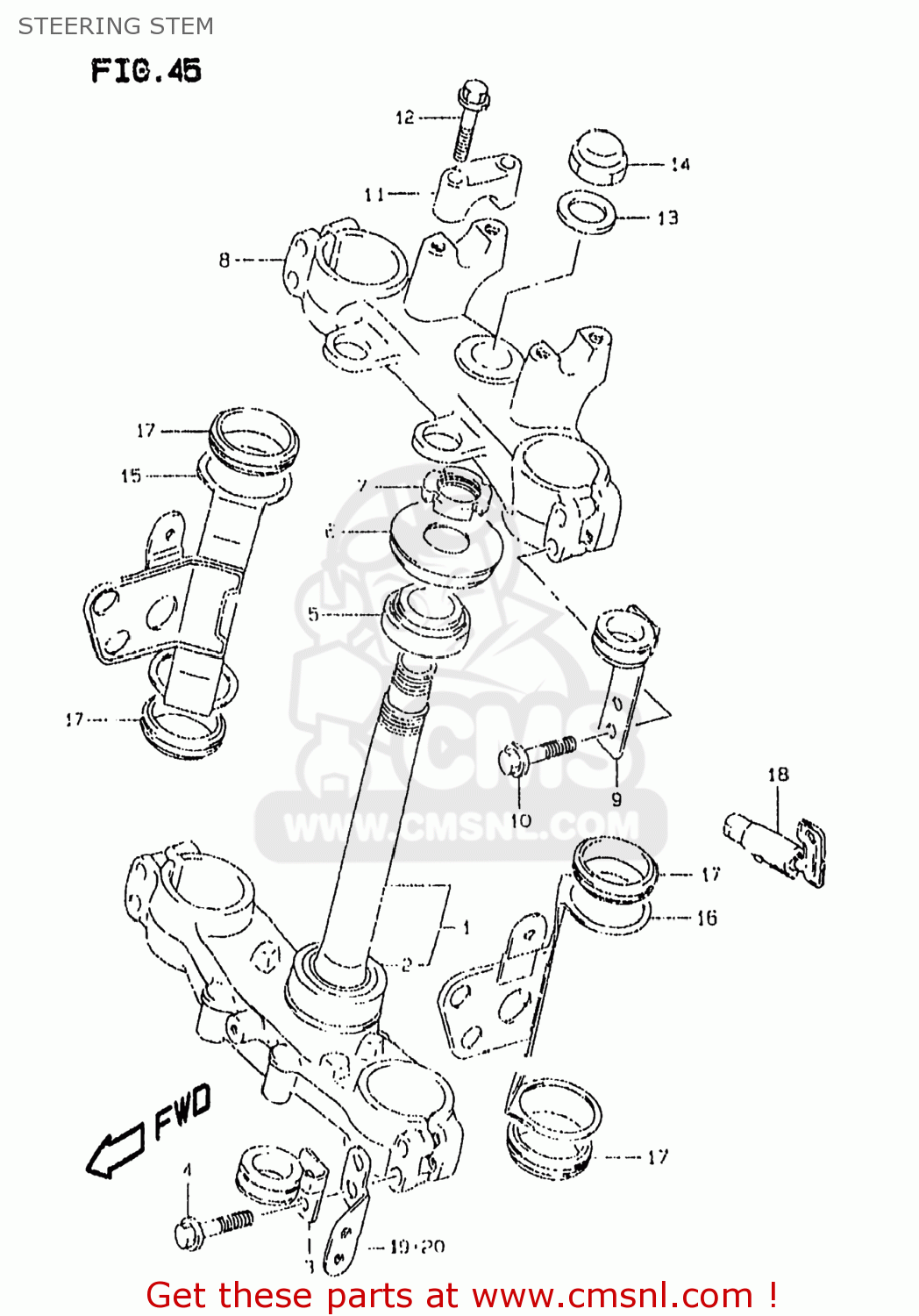

Steering stem diagram DR350SE 1998 (W) USA (E03)
STEERING STEM DR350SE 1998 (W) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
5141014EA0
ref: 1-1
51410-14ED0
STEM,STEERING
€ 473.50
1-2
5141014ED0
ref: 1-2
STEM,STEERING
€ 473.50
2
0926530009
ref: 2
BEARING(30X55X17)
€ 49.50
3
5145303D10
ref: 3
GUIDE,CABLE LWR,L
€ 18.50
4
0155008407
ref: 4
BOLT
€ 3.50
5
0926525019
ref: 5
BEARING(25X47X15)
€ 48.50
6
5164340200
ref: 6
SEAL,STEERING UPR DUST
€ 7.50
7
5163140200
ref: 7
NUT,STEERING STEM
€ 12.00
8
5131114D10
ref: 8
HEAD,STEERING STEM
€ 236.00
9
5128814D10
ref: 9
GUIDE,CABLE,LEFT,UPPER
€ 23.50
10
0155008403
ref: 10
01550-0840A
BOLT
€ 3.50
11
5621127200291
ref: 11
HOLDER,HANDLE UPR
€ 13.50
12
0155008353
ref: 12
01550-0835A
BOLT
€ 3.50
13
5135414D00
ref: 13
WASHER
€ 9.00
14
5135324B00
ref: 14
NUT,CAP
€ 21.50
15
5153015D00
ref: 15
BRACKET,HEADLAMP HOUSING,R
€ 28.00
16
5154015D00
ref: 16
BRACKET,HEADLAMP HOUSING,L
€ 28.00
17
5155315D00
ref: 17
DAMPER,HEADLAMP HSG BRACKET
€ 5.00
18
5190030901
ref: 18
LOCK ASSY,STEERING(NEIMAN)
€ 168.50
18
5190030901
ref: 18
LOCK ASSY,STEERING(NEIMAN)
€ 168.50
18
5190030901
ref: 18
LOCK ASSY,STEERING(NEIMAN)
€ 168.50
18
5190030901
ref: 18
LOCK ASSY,STEERING(NEIMAN)
€ 168.50
18
5190030901
ref: 18
LOCK ASSY,STEERING(NEIMAN)
€ 168.50
18
5190030901
ref: 18
LOCK ASSY,STEERING(NEIMAN)
€ 168.50
19
3595614D01
ref: 19
BRACKET,FRONT SIDE REFLECTOR
€ 0.00
20
3595714D01
ref: 20
BRACKET,FR SIDE REFLECTOR,L
€ 0.00
