HANDLE SWITCH

DR350SE 1998 (W) USA (E03)

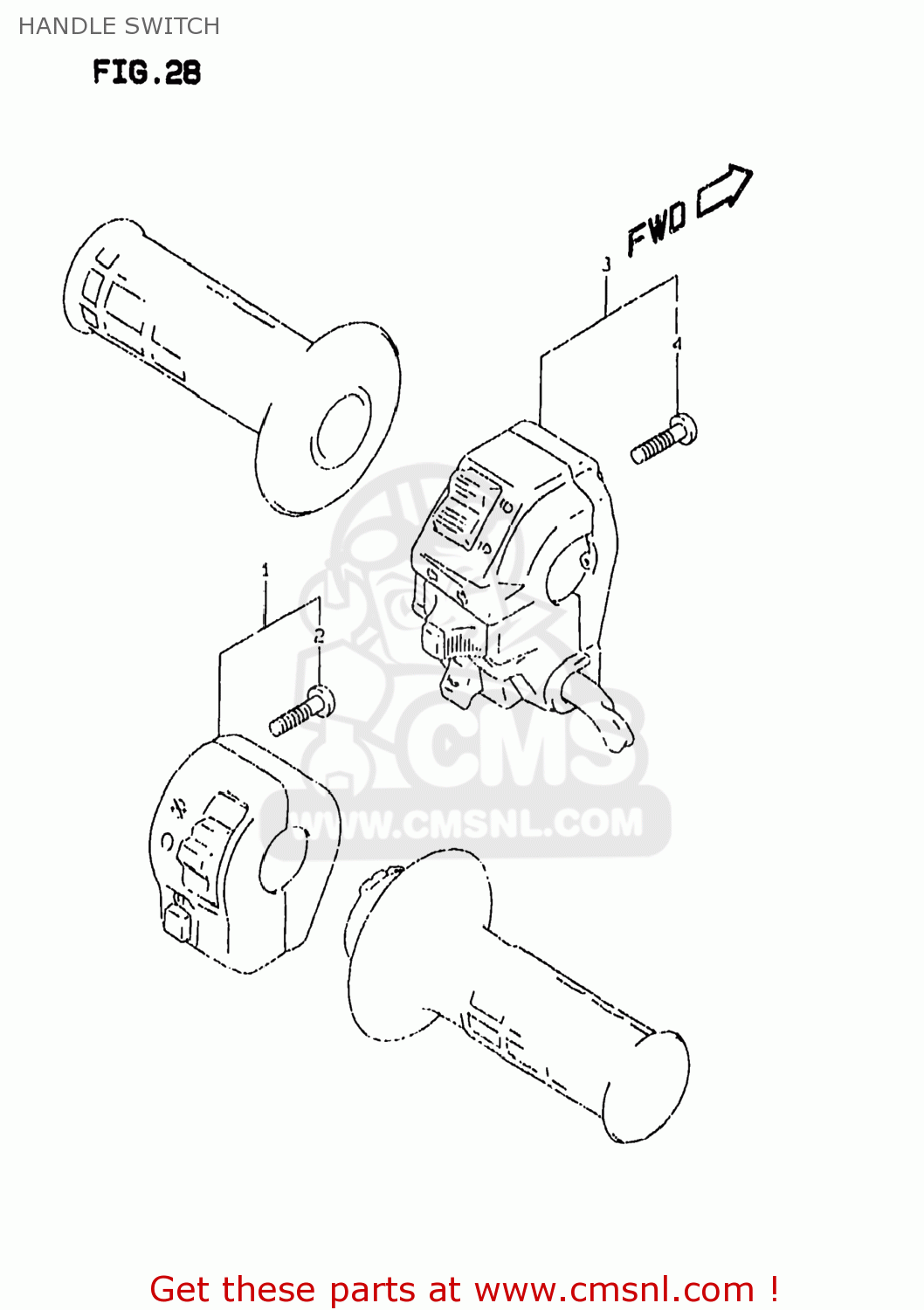

Handle switch diagram DR350SE 1998 (W) USA (E03)

HANDLE SWITCH DR350SE 1998 (W) USA (E03)

HANDLE SWITCH DR350SE 1998 (W) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3720015D60
ref: 1

SWITCH ASSY,HANDLE,R

€ 88.50

2

0211204203
ref: 2
02112-0420A

SCREW

€ 1.00

3

3740015D20
ref: 3

SWITCH ASSY,HANDLE,L

€ 109.50

4

0211205305
ref: 4
02112-0530B

SCREW

€ 1.50
