FRAME COVER
DR350SE 1998 (W) USA (E03)

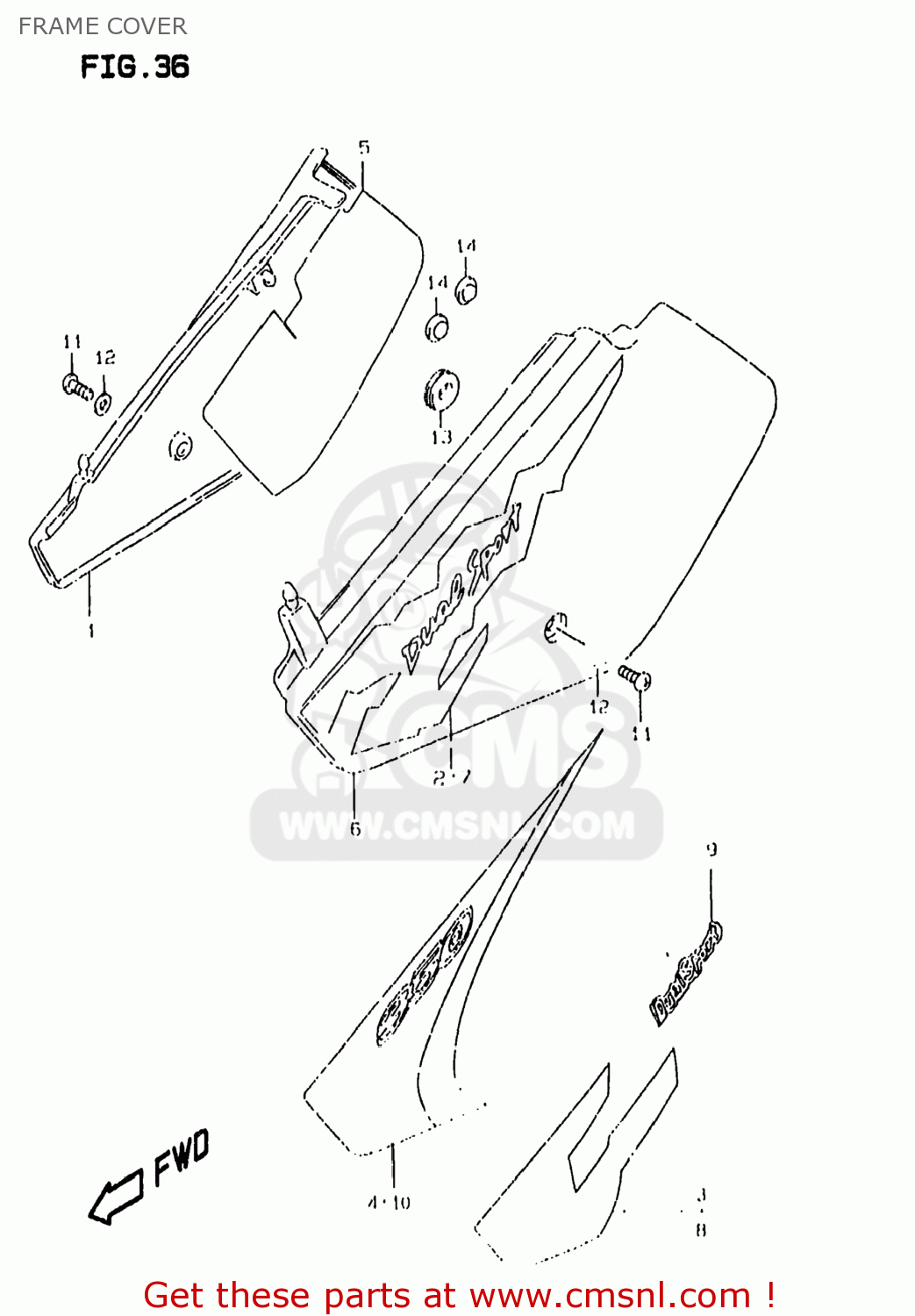

Frame cover diagram DR350SE 1998 (W) USA (E03)
FRAME COVER DR350SE 1998 (W) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4711114D0030H
ref: 1
COVER,FRAME,R(WHITE)
€ 48.50
2
6813514E50G3M
ref: 2
TAPE,FRAME COVER,R
€ 26.00
3
6813514E60J7V
ref: 3
TAPE,FRAME COVER,R
€ 27.00
4
6813514E80L5C
ref: 4
TAPE,FRAME COVER,R
€ 33.50
5
4716614D00
ref: 5
SHIELD,FRAME COVER,R
€ 25.50
6
4721115D0030H
ref: 6
COVER,FRAME,L(WHITE)
€ 48.50
7
6814514E50G3M
ref: 7
TAPE,FRAME COVER,LEFT
€ 27.50
8
6814514E60J7V
ref: 8
TAPE,FRAME COVER,L
€ 24.50
9
6813132E00J7B
ref: 9
EMBLEM,FRAME COVER
€ 15.50
10
6814514E80L5C
ref: 10
TAPE,FRAME COVER,LEFT
€ 33.50
11
0214206167
ref: 11
SCREW
€ 2.00
12
0916906028
ref: 12
09169-06041
WASHER
€ 2.00
13
0932008029
ref: 13
CUSHION
€ 2.50
14
0932110018
ref: 14
CUSHION
€ 5.00
