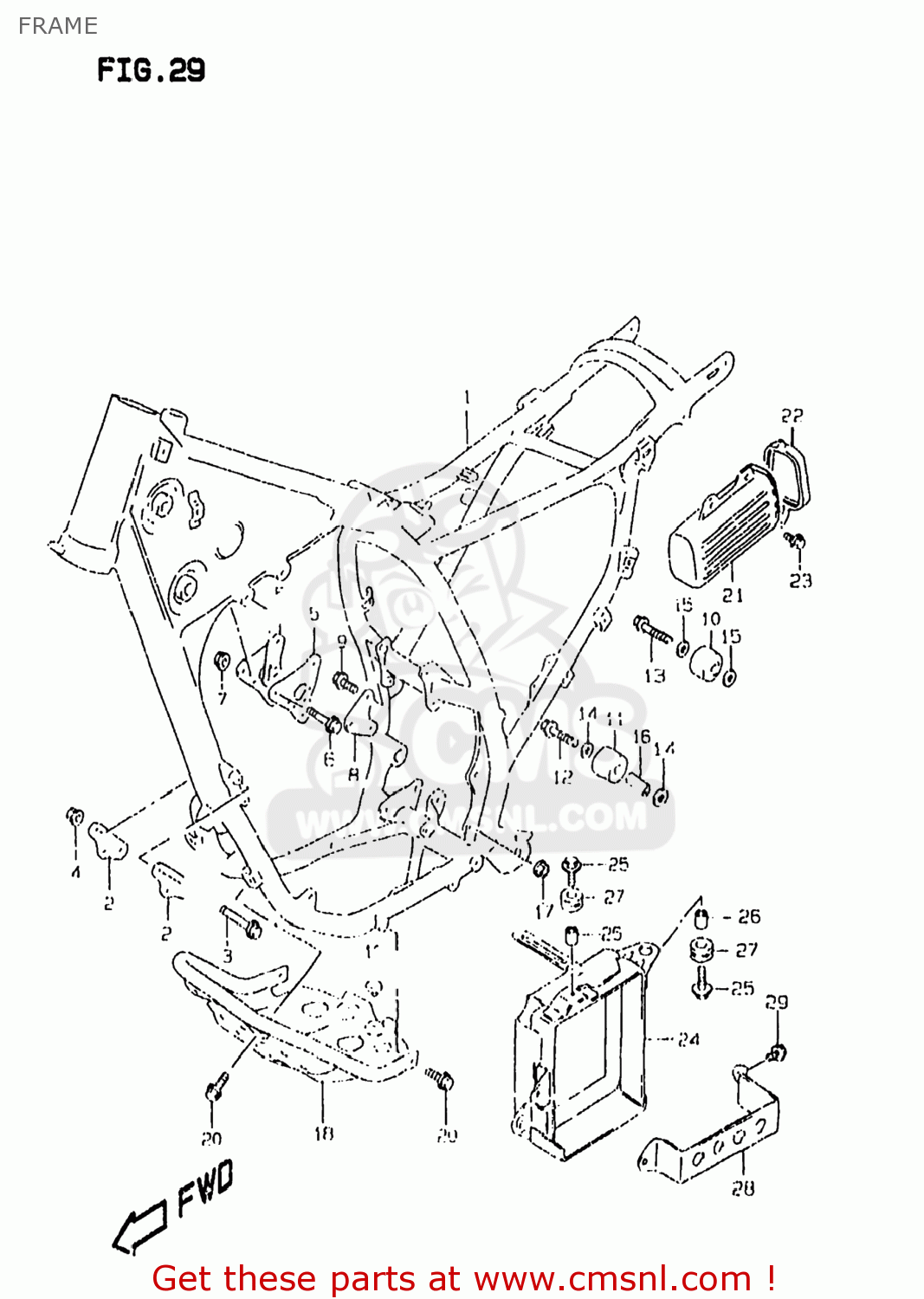

FRAME

ref

part #

description

quantity

1-1

4110014E30Z16
ref: 1-1

FRAME (PURPLE)

€ 1,797.50

1-2

4110014E3024K
ref: 1-2

FRAME (CHARCOAL)

€ 1,797.50

2

4191114D01
ref: 2

PLATE,ENGINE MOUNT FR

€ 21.00

3

0910308294
ref: 3

BOLT(8X85)

€ 4.50

4

0915908034
ref: 4

NUT

€ 2.00

5

4199114D01
ref: 5

PLATE,ENGINE MOUNT UPR

€ 30.50

6

0910308293
ref: 6

BOLT(8X70)

€ 4.50

7

0915908034
ref: 7

NUT

€ 2.00

8

4197114D01
ref: 8

PLATE,ENGINE MOUNTING,REAR

€ 21.00

9

0910308283
ref: 9
09103-08283-A05

BOLT(8X16)

€ 2.50

10

4391027C11
ref: 10

ROLLER,CHAIN

€ 36.50

11

4391135B00
ref: 11

ROLLER,CHAIN CONTROL

€ 14.50

12

0910308178
ref: 12

BOLT(8X38)

€ 5.00

13

0910308068
ref: 13
09103-08043

BOLT 8X45

€ 4.50

14

0821108201
ref: 14

WASHER

€ 2.00

15

0918108111
ref: 15

SHIM(8X12X1)

€ 2.00

16

0918008119
ref: 16
09180-08156

SPACER(8.6X12X25.5)

€ 6.50

17

0831320083
ref: 17
08313-2008A

NUT

€ 2.50

18

4251014D1013L
ref: 18

PROTECTOR,ENGINE(SILVER)

€ 269.50

19

0932110026
ref: 19

CUSHION

€ 9.00

20

0155008123
ref: 20
01550-0812A

BOLT

€ 3.50

21

4743114D00
ref: 21

HOLDER,TOOL

€ 25.50

22

4743214D00
ref: 22

CAP,TOOL HOLDER

€ 8.50

23

0911606144
ref: 23
09116-06165

BOLT 6X16

€ 2.50

24

4154015D00
ref: 24

HOLDER,BATTERY

€ 64.50

25

0911606010
ref: 25

BOLT(6X20)

€ 2.00

26

0918006285
ref: 26

SPACER(6.5X10X9)

€ 2.50

27

0932010501
ref: 27

CUSHION

€ 5.50

28

4154215D00
ref: 28

COVER,BATTERY HOLDER

€ 14.50

29

0912806058
ref: 29

SCREW(6X10)

€ 2.00
