FUEL COCK

DR350SE 1999 (X) USA (E03)

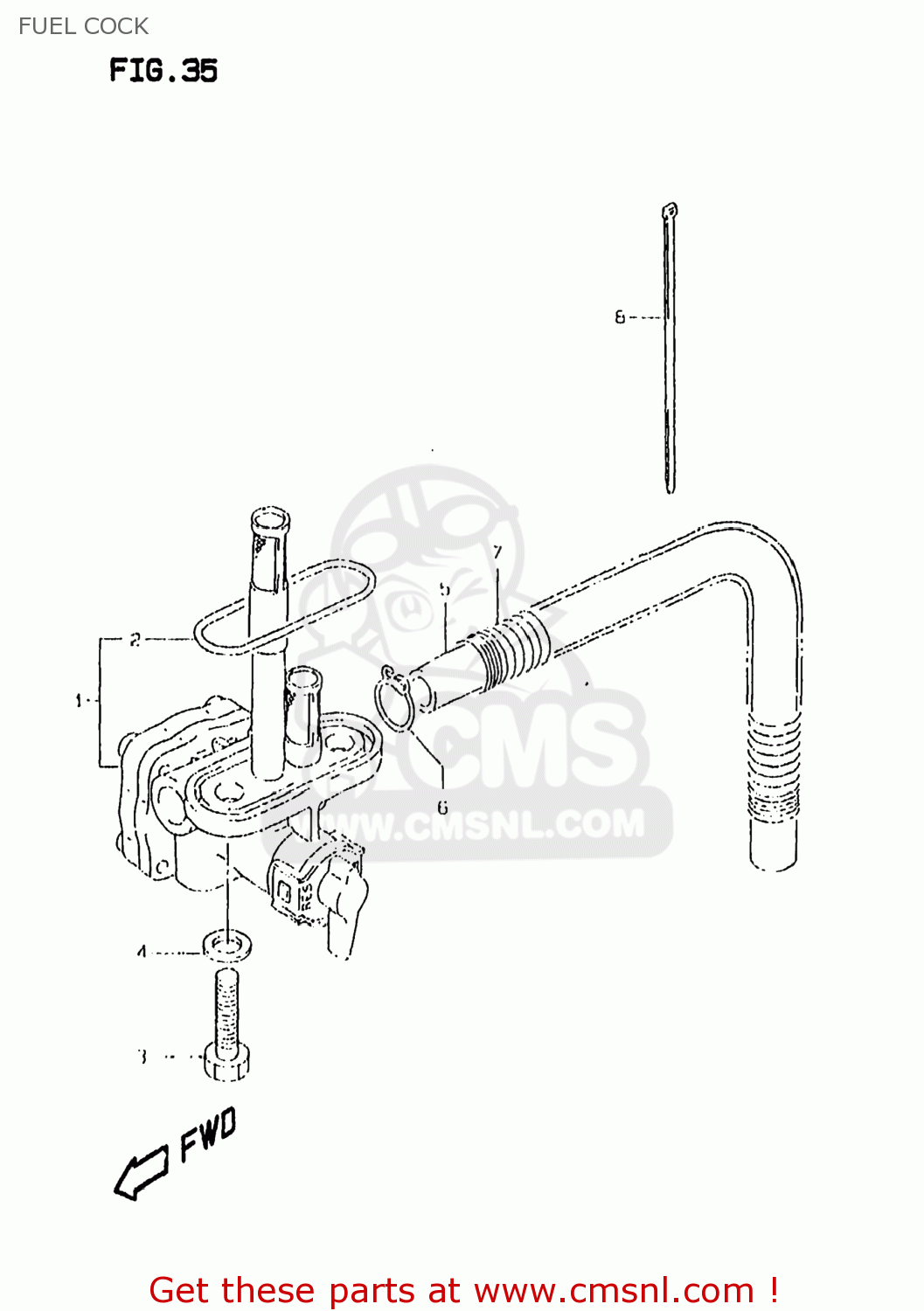

Fuel cock diagram DR350SE 1999 (X) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

4430015D30
ref: 1-1
44300-15D31

COCK ASSEMBLY,FUEL

€ 121.00

1-2

4430015D31
ref: 1-2

COCK ASSY,FUEL

€ 121.00

4434887420
ref: 2

GASKET,JOINT (NAS)

€ 5.00

0912806057
ref: 3

BOLT(6X20)

€ 2.00

0916806026
ref: 4

GASKET(6.4X11.5X0.8) (NAS)

€ 3.50

5-1

0935270103600
ref: 5-1

HOSE(7X10.2X600)

€ 8.00

5-2

0935570125600
ref: 5-2
44421-12FR0

HOSE(7X12X600)

€ 26.00

6-1

0940110401
ref: 6-1

CLIP

€ 1.50

6-2

0940111407
ref: 6-2
09401-11415

CLIP

€ 2.50

7-1

0944013052
ref: 7-1

SPRING

€ 14.50

7-2

0944014048
ref: 7-2

SPRING

€ 5.50

8-1

0940406429
ref: 8-1

CLAMP(L:45)

€ 2.50

8-2

0940406432
ref: 8-2

CLAMP(L:65)

€ 2.50
