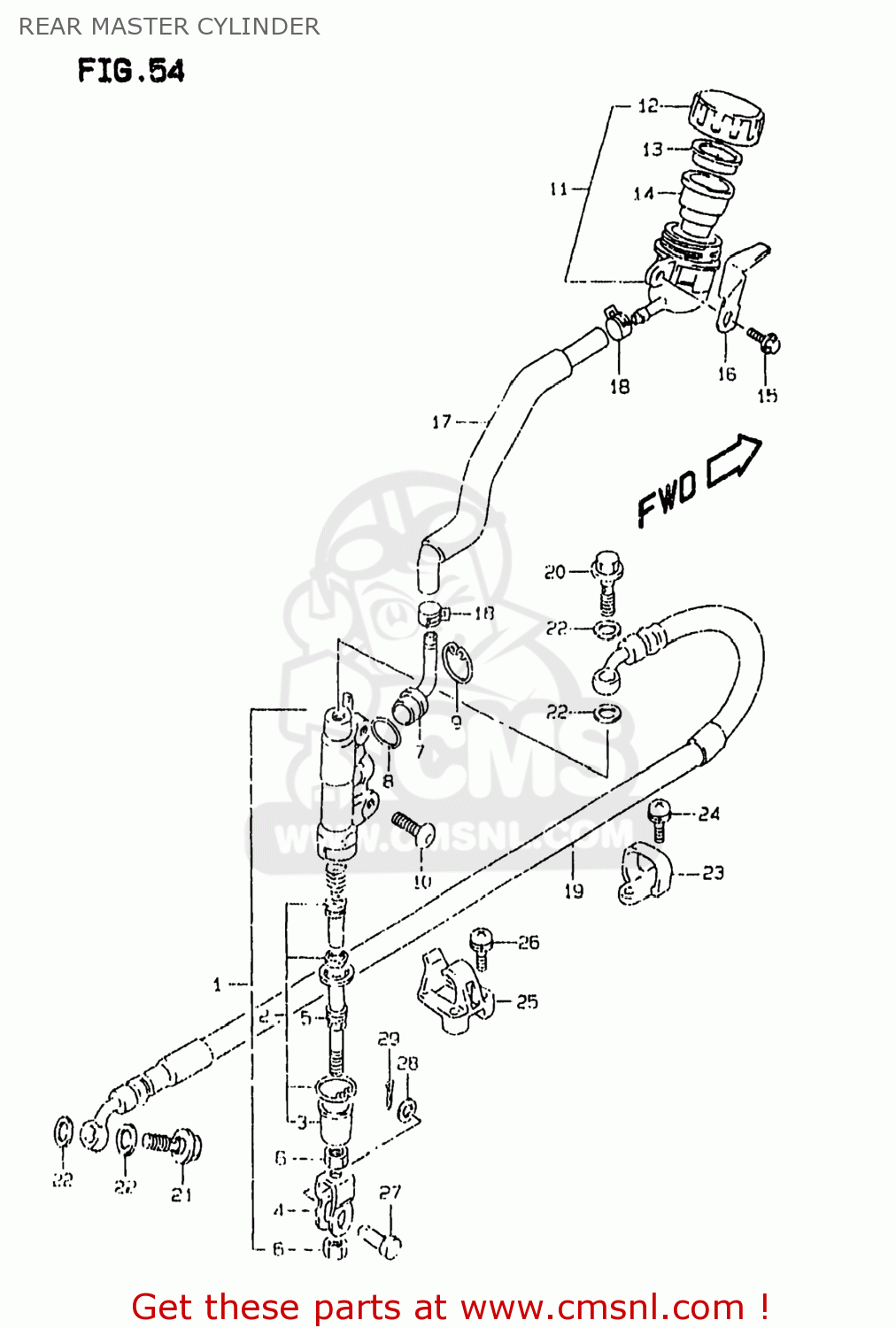

REAR MASTER CYLINDER

ref

part #

description

quantity

1

6960014D01
ref: 1

CYLINDER ASSY,RR MASTER

€ 167.00

2

6960004820
ref: 2

PISTON/CUP SET

€ 31.00

3

6969100A00
ref: 3

BOOT

€ 3.50

4

6969200B21
ref: 4

YOKE

€ 13.50

5

6967000B21
ref: 5

ROD,PUSH

€ 24.00

6

6969305A00
ref: 6

NUT

€ 1.50

7

5967217C00
ref: 7

CONNECTOR

€ 8.00

8

6968634200
ref: 8

O RING

€ 3.50

9

6967400B20
ref: 9

CIRCLIP

€ 3.00

10

0913906067
ref: 10

SCREW(6X16)

€ 3.00

11

6974003D00
ref: 11

TANK ASSY,RR BRAKE RESERVOIR

€ 40.50

12

6966903D00
ref: 12

CAP

€ 11.00

13

6966800B20
ref: 13

PLATE

€ 4.00

14

6966700B20
ref: 14

DIAPHRAGM

€ 9.50

15

0155008163
ref: 15
01550-0816A

BOLT

€ 3.00

16

6974314D10
ref: 16

GUARD,RSVR TANK CAP

€ 4.50

17

6973014D00
ref: 17

HOSE COMP,RESERVOIR TANK

€ 26.00

18

0940112404
ref: 18

CLIP

€ 2.50

19

6948014D00
ref: 19

HOSE,RR BRAKE

€ 65.00

20

0936010039
ref: 20
09360-10061

BOLT UNION

€ 6.50

21

0936010040
ref: 21
09360-10062

BOLT UNION

€ 5.00

22

0916110009
ref: 22

WASHER(10X15X1.5)

€ 2.00

23

6119600B21
ref: 23

GUIDE,RR BRAKE HOSE

€ 6.00

24

0214205103
ref: 24
02142-0510B

SCREW

€ 2.50

25

6119603D00
ref: 25

GUIDE,RR BRAKE HOSE

€ 3.00

26

0211235163
ref: 26
02112-3516A

SCREW

€ 2.50

27

0920008048
ref: 27

PIN(8X20)

€ 3.00

28-1

0916008074
ref: 28-1

WASHER(8.5X13X1.6)

€ 2.50

28-2

0916008119
ref: 28-2
09160-08090

WASHER (8.5X14X1.6)

€ 2.50

29

0411125158
ref: 29
04111-2515A

PIN 20X15

€ 1.50

all assemblies
