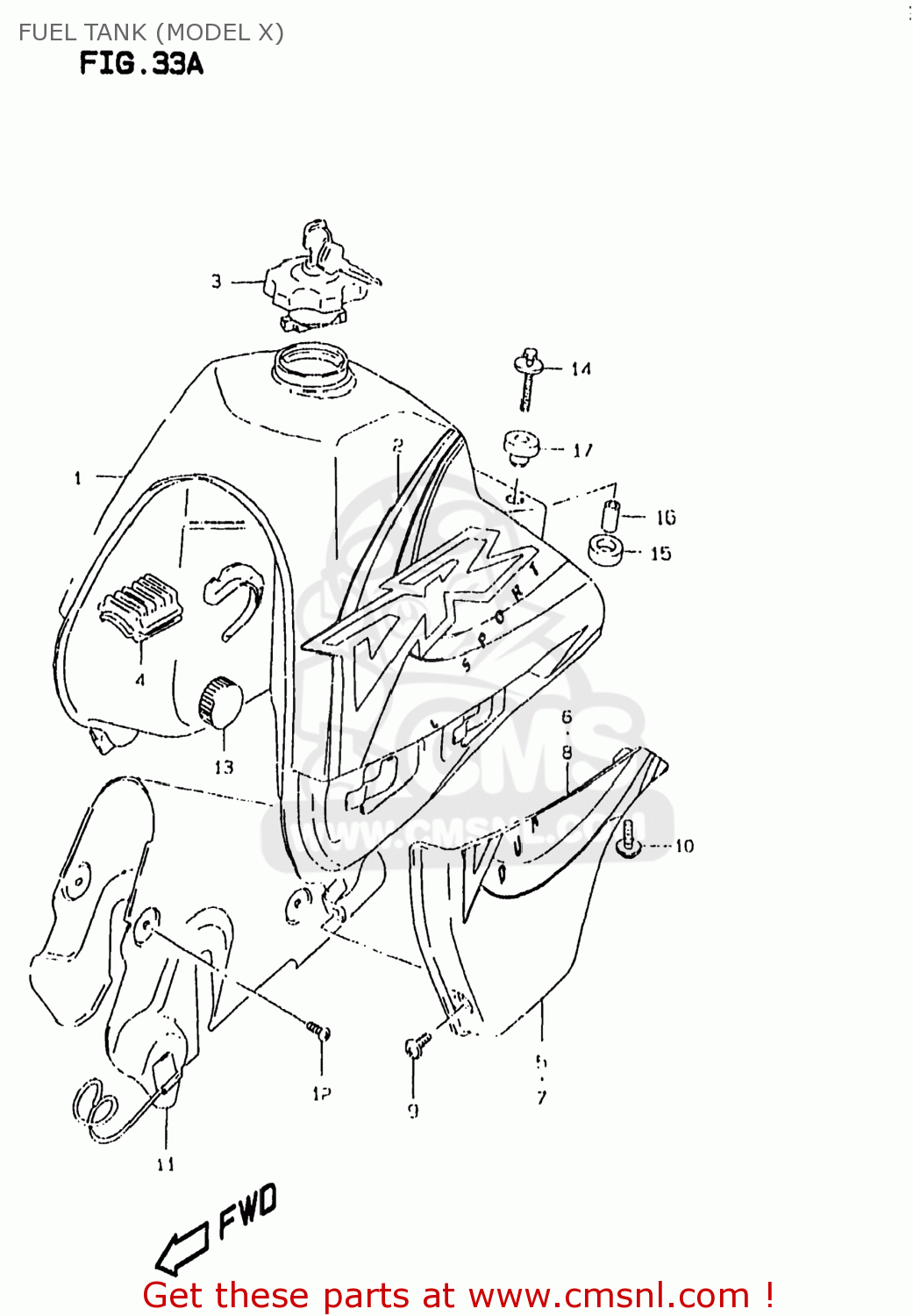

FUEL TANK (MODEL X)

ref

part #

description

quantity

1-1

4910014EB030H
ref: 1-1

TANK ASSEMBLY,FUEL

€ 0.00

1-2

4910014ED030H
ref: 1-2

TANK ASSEMBLY,FUEL

€ 0.00

2

6811014E80Y8P
ref: 2

TAPE SET,FUEL TANK

€ 0.00

3-1

4420003811
ref: 3-1

CAP SET,FUEL TANK

€ 90.50

3-2

4420005820
ref: 3-2

CAP SET,FUEL TANK

€ 103.50

4

4454115D01
ref: 4

CUSHION,FUEL TANK FR UPR

€ 18.50

5

4417115D0030H
ref: 5

COVER,FUEL TANK,R

€ 20.50

6

6811514E00Y9S
ref: 6

TAPE,FUEL TANK COVER,RIGHT

€ 21.00

7

4418115D0030H
ref: 7

COVER,FUEL TANK,L

€ 18.50

8

6812514E00Y9S
ref: 8

TAPE,FUEL TANK COVER,LEFT

€ 0.00

9

0214206107
ref: 9

SCREW

€ 2.00

10

0913606002
ref: 10

SCREW(6X12)

€ 2.50

11-1

4913114D20
ref: 11-1

SHIELD,FUEL TANK

€ 26.50

11-2

4913015D30
ref: 11-2

SHIELD COMP,FUEL TANK

€ 32.50

12

0156005103
ref: 12

BOLT

€ 0.00

13

0932910016
ref: 13

CUSHION

€ 3.00

14

0911606172
ref: 14

BOLT(6X30)

€ 2.50

15

0932014013
ref: 15

CUSHION

€ 3.00

16

0918006271
ref: 16

SPACER(6.5X9X18)

€ 2.00

17

0932010020
ref: 17

CUSHION

€ 4.00
