FRONT FENDER

DR350SE 1999 (X) USA (E03)

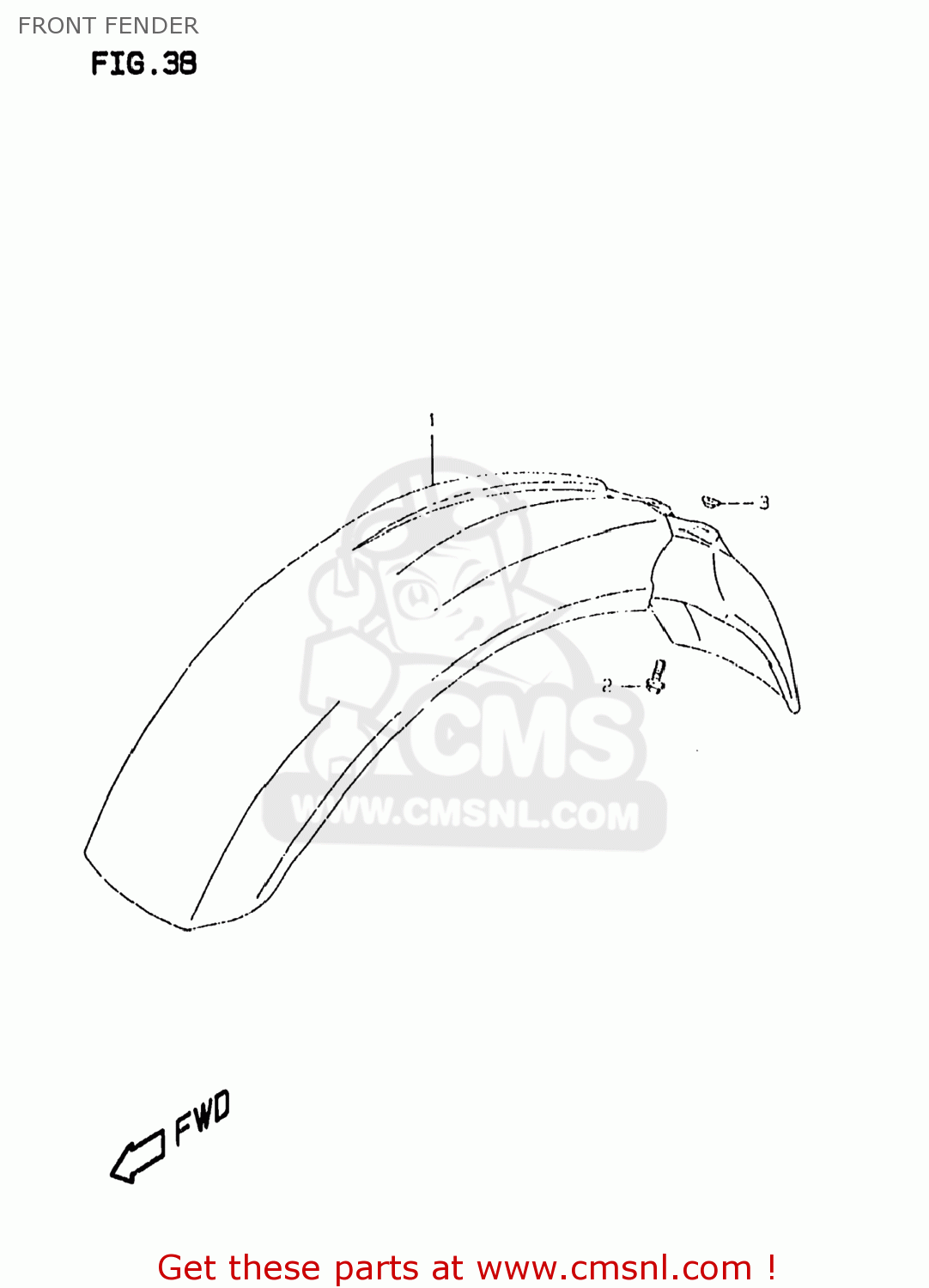

Front fender diagram DR350SE 1999 (X) USA (E03)

FRONT FENDER DR350SE 1999 (X) USA (E03)

FRONT FENDER DR350SE 1999 (X) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

5311114D1130H
ref: 1

FENDER,FR

€ 81.50

2

0911606170
ref: 2

BOLT(6X16)

€ 3.00

3

0916906073
ref: 3

WASHER

€ 4.00
