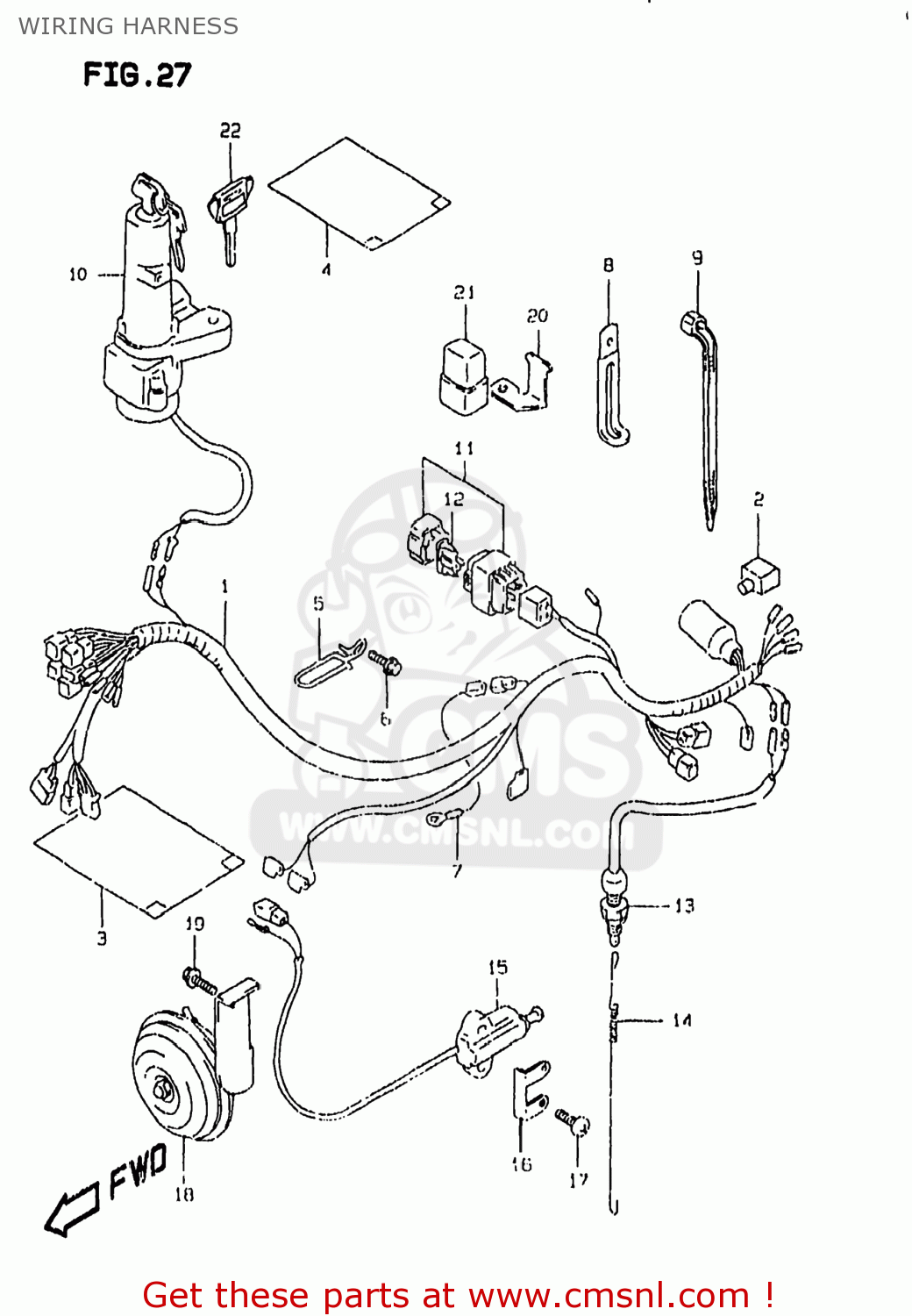

WIRING HARNESS

ref

part #

description

quantity

1

3661015D80
ref: 1

HARNESS,WIRING

€ 302.50

2

3362415D00
ref: 2

CAP,BATTERY PLUS

€ 6.00

3

3661815D20
ref: 3

COVER,WIRING HARNESS

€ 12.00

4

3661815D20
ref: 4

COVER,WIRING HARNESS

€ 12.00

5

3661915D11
ref: 5

GUIDE,WIRING HARNESS

€ 142.00

6

0155006103
ref: 6
01550-0610A

BOLT

€ 2.50

7

3685105D00
ref: 7

WIRE,REGULATOR EARTH LEAD

€ 3.00

8-1

0940406429
ref: 8-1

CLAMP(L:45)

€ 2.50

8-2

0940406431
ref: 8-2
09404-06432

CLAMP(L:65)

€ 2.50

8-3

0940406433
ref: 8-3

CLAMP(L:80)

€ 3.00

8-4

0940408419
ref: 8-4

CLAMP(L:80)

€ 2.00

9-1

0940703401
ref: 9-1

CLAMP(L:33)

€ 3.50

9-2

0940714403
ref: 9-2

CLAMP(L:125)

€ 2.50

9-3

0940718402
ref: 9-3

CLAMP(L:165)

€ 2.50

9-4

0940725401
ref: 9-4

CLAMP(L:235)

€ 4.00

10-1

3711003D01
ref: 10-1

SWITCH ASSY,IGNITION

€ 58.50

10-2

3711003D10
ref: 10-2

SWITCH ASSY,IGNITION

€ 52.50

11

3674024B01
ref: 11

BOX ASSY,FUSE

€ 18.00

12

0948120101
ref: 12

FUSE(20A)

€ 2.00

13

3774031D00
ref: 13

SWITCH ASSY,STOP LAMP

€ 20.50

14

0944306080
ref: 14

SPRING

€ 4.00

15

3784012X50
ref: 15

SWITCH ASSY,SIDE STAND WARNING

€ 76.00

16

3784114D00
ref: 16

PROTECTOR,SIDE STAND SWITCH

€ 4.50

17

0214206203
ref: 17
02142-0620A

SCREW

€ 2.00

18-1

3850014D01
ref: 18-1
38500-14D02

HORN ASSEMBLY

€ 54.50

18-2

3850015D10
ref: 18-2

HORN ASSY

€ 0.00

19

0155006163
ref: 19
01550-0616A

BOLT

€ 2.50

20

3674414D01
ref: 20

BRACKET,FUSE

€ 0.00

21

3874024X50
ref: 21

RELAY ASSY

€ 37.50

22-1

3714603A00
ref: 22-1

KEY,BLANK(TYPE:C)

€ 6.00

22-2

3714603A10
ref: 22-2

KEY,BLANK(TYPE:D)

€ 6.00

22-3

3714603A20
ref: 22-3

KEY,BLANK(TYPE:E)

€ 6.00

22-4

3714603A30
ref: 22-4

KEY,BLANK(TYPE:F)

€ 6.00
