BATTERY

DR500S 1986 (G)

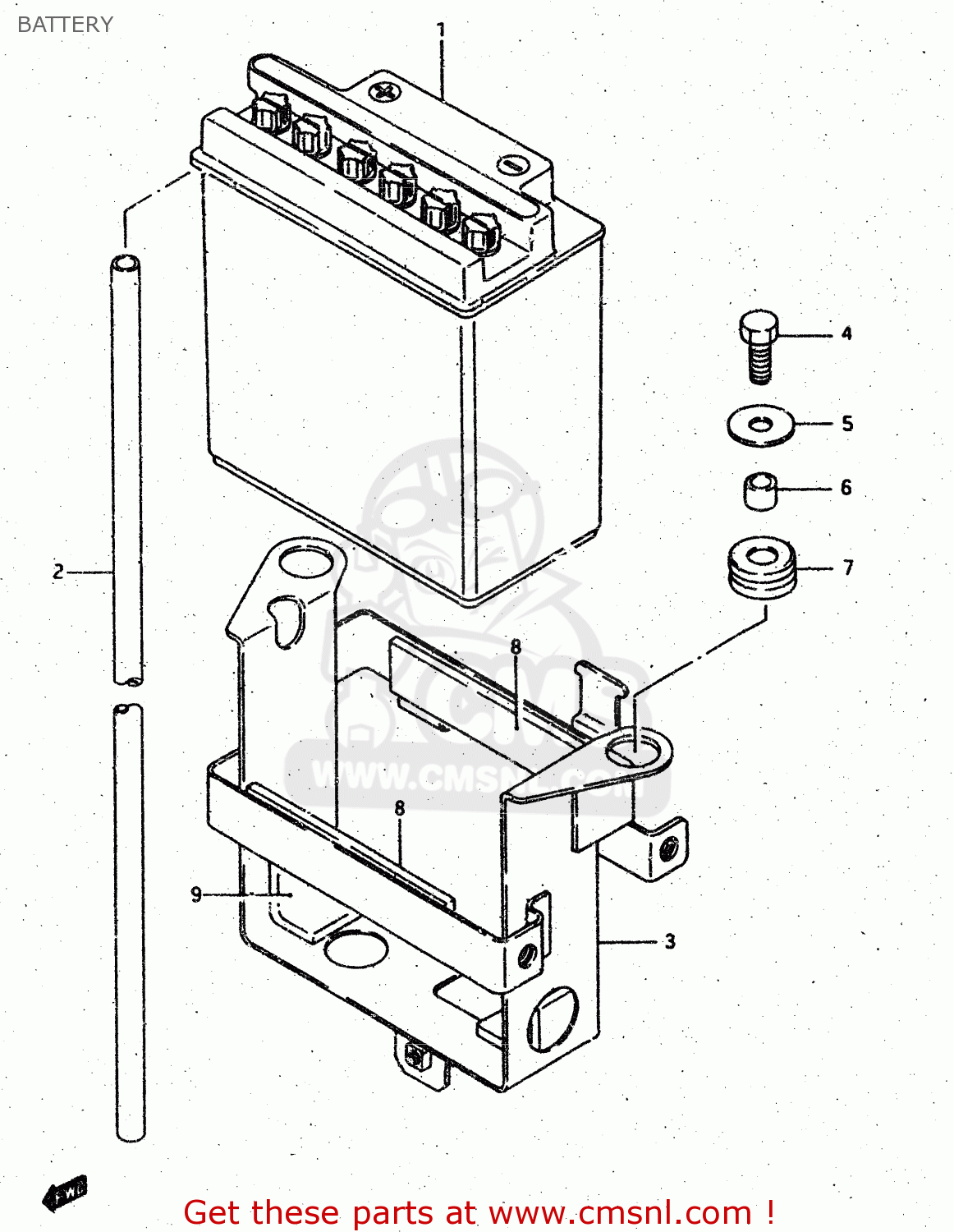

Battery diagram DR500S 1986 (G)

BATTERY DR500S 1986 (G)
BATTERY DR500S 1986 (G)
BATTERY DR500S 1986 (G)
prices are in EUR
ref
part #
description
quantity
1
3361018010
ref: 1
BATTERY ASSEMBLY (12V)
€ 62.00
2
3368014A00
ref: 2
HOSE,BATTERY EXHAUST
€ 4.50
3
4154014A00
ref: 3
HOLDER,BATTERY
€ 26.50
4
0110706206
ref: 4
BOLT,M6X1X20
0110706206
€ 2.00
5
0916006027
ref: 5
WASHER (6.5X20X1.2)
0916006027
€ 2.00
6
0918006058
ref: 6
SPACER (6.1X9X7.5)
€ 0.00
7
0932008007
ref: 7
CUSHION
0932008007
€ 4.00
8
3365229100
ref: 8
PROTECTOR,20X9
€ 5.00
9
3365234000
ref: 9
PROTECTOR(30X80X2)
3365234000
€ 4.50
