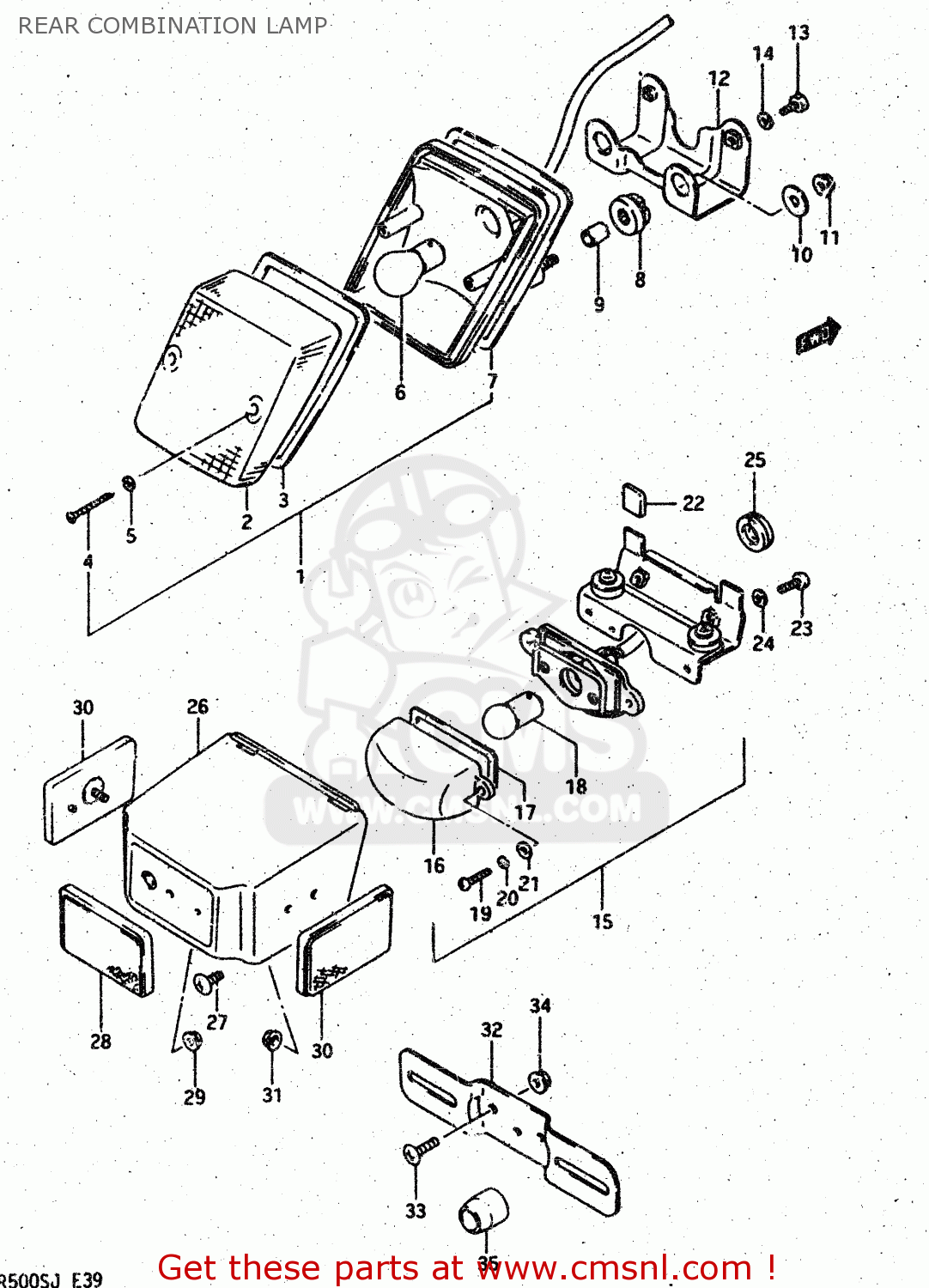

REAR COMBINATION LAMP

ref

part #

description

quantity

1

3571014A50
ref: 1

LAMP ASSY, REAR COMBINATION

€ 159.00

2

3571214A00
ref: 2

LENS,RR COMBI

€ 44.00

3

3571314A00
ref: 3

GASKET,REAR COMBINATION LAMP

€ 9.50

4

0321104258
ref: 4

SCREW TAPP.

€ 2.00

5

3562743010
ref: 5

GASKET (NAS)

€ 2.00

6

0947112083
ref: 6

BULB(12V21/5W)

€ 6.00

7

3573314A00
ref: 7

GASKET

€ 0.00

8

0932009018
ref: 8

CUSHION

€ 2.00

9

0918006030
ref: 9

SPACER (6.8X10X10)

€ 2.00

10

6916006027
ref: 10

WASHER (6.5X20X1.2)

€ 0.00

11

0831011066
ref: 11

NUT

€ 2.00

12

3572614A00
ref: 12

BRACKET,REAR COMBINATION LAMP

€ 7.00

13

0110706126
ref: 13

BOLT

€ 2.00

14

0832121066
ref: 14

WASHER,LOCK

€ 2.00

15

3591014A50
ref: 15

LAMP ASSY, LICENSE

€ 64.50

16

3591200A20
ref: 16

LENS,LICENSE LAMP

€ 24.00

17

3591304A00
ref: 17

GASKET,LICESE LAMP (NAS)

€ 4.00

18

0947112140
ref: 18
FROM 09471-12059

BULB(12V5W,BF150-40160A)

€ 4.00

19

0211204167
ref: 19

SCREW

€ 1.00

20

0832121047
ref: 20

WASHER,LOCK 4M

€ 2.00

21

0832221047
ref: 21

WASHER 4MM

€ 2.00

22

3593614A00
ref: 22

CAP,LICENSE

€ 0.00

23

0211206206
ref: 23

SCREW

€ 2.00

24

0832121066
ref: 24

WASHER,LOCK

€ 2.00

25

0930807011
ref: 25

GROMMET

€ 3.50

26

3591714A30
ref: 26

COVER,LICENSE LAMP

€ 33.50

27

0214205164
ref: 27

SCREW

€ 2.50

28

3597014A00
ref: 28

RR ASSY,RR

€ 15.50

29

0831626055
ref: 29

NUT

€ 2.00

30

3595014A50
ref: 30

REFLEX REFLECTOR, REAR SIDE

€ 0.00

31

0831626055
ref: 31

NUT

€ 2.00

32

3592714A00
ref: 32

BRACKET, LICENSE PLATE

€ 8.50

33

0214206164
ref: 33

SCREW

€ 2.50

34

0831616066
ref: 34

NUT

€ 2.50

35

0932008035
ref: 35

CUSHION

€ 0.00
