LEFT HANDLE SWITCH (DR500RH)
DR500S 1986 (G)

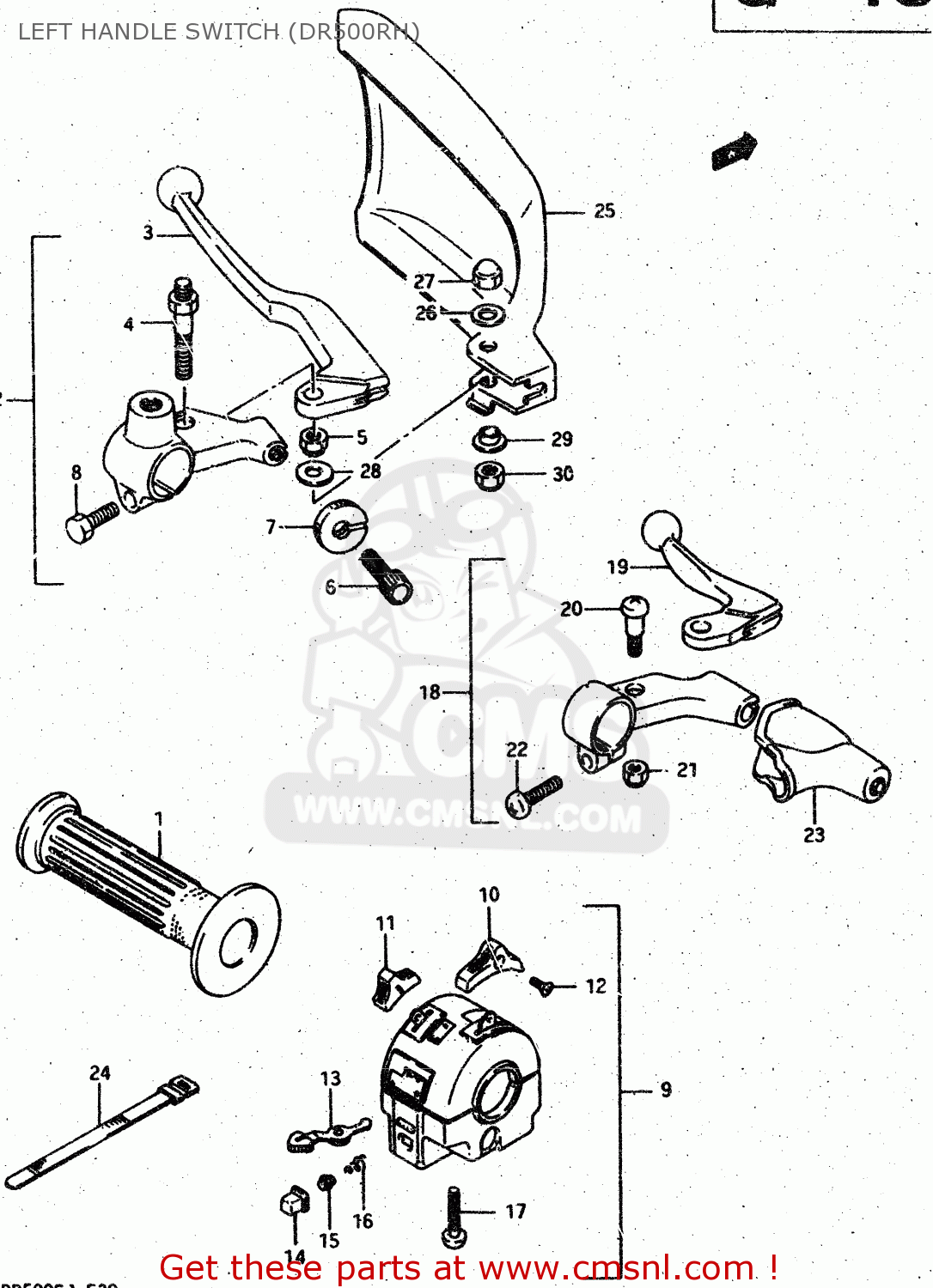

Left handle switch (dr500rh) diagram DR500S 1986 (G)
LEFT HANDLE SWITCH (DR500RH) DR500S 1986 (G)
×
prices are in EUR
ref
part #
description
quantity
1
5721145020
ref: 1
GRIP,L
€ 9.00
2
5750015A00
ref: 2
LEVER ASSY, CLUTCH
€ 36.00
3
5762049101
ref: 3
LEVER,CLUTCH
€ 28.50
4
5753115A00
ref: 4
BOLT
€ 9.50
5
0831921065
ref: 5
NUT
€ 2.50
6
5744144400
ref: 6
ADJUSTER,CABLE
€ 5.50
7
5744244400
ref: 7
NUT,CABLE ADJUSTER LOCK
€ 4.00
8
0110706205
ref: 8
BOLT
€ 2.00
9
3740001A00
ref: 9
SWITCH ASSY,HANDLE LH
€ 108.00
10
3741145012
ref: 10
KNOB,LIGHTING SWITCH
€ 4.50
11
3742145012
ref: 11
KNOB,DIMMER SWITCH
€ 5.50
12
0212203068
ref: 12
SCREW
€ 1.00
13
3751345011
ref: 13
KNOB,TURNSIGNAL
€ 6.50
14
5737145000
ref: 14
BUTTON,HORN
€ 3.00
15
5737245000
ref: 15
CONTACT
€ 3.00
16
5738245000
ref: 16
SPRING
€ 2.50
17
0211205257
ref: 17
SCREW
€ 2.00
18
5870038200
ref: 18
LEVER ASSEMBLY,DECOMPRESSION
€ 169.50
19
5873138200
ref: 19
LEVER,DECOMP
€ 42.00
20
5743101011
ref: 20
BOLT,LEVER
€ 5.00
21
5763338200
ref: 21
NUT
€ 2.00
22
0211206205
ref: 22
SCREW
€ 2.00
23
5734237101
ref: 23
COVER,DECOMP LEVER DUST
€ 9.50
24
0940712402
ref: 24
CLAMP(L:120)
€ 3.00
25
5754115A0014L
ref: 25
TO 57541-15A01-14L W
GUARD, KNUCKLE, LH (WHITE)
€ 25.50
26
0916006102
ref: 26
WASHER (6.5X20X1.6)
€ 2.00
27
0831311065
ref: 27
NUT 6MM
€ 2.00
28
0916006019
ref: 28
WASHER(6.5X16X1.2)
€ 1.50
29
0916906040
ref: 29
WASHER
€ 2.00
30
0831921068
ref: 30
NUT 6MM
€ 2.00
