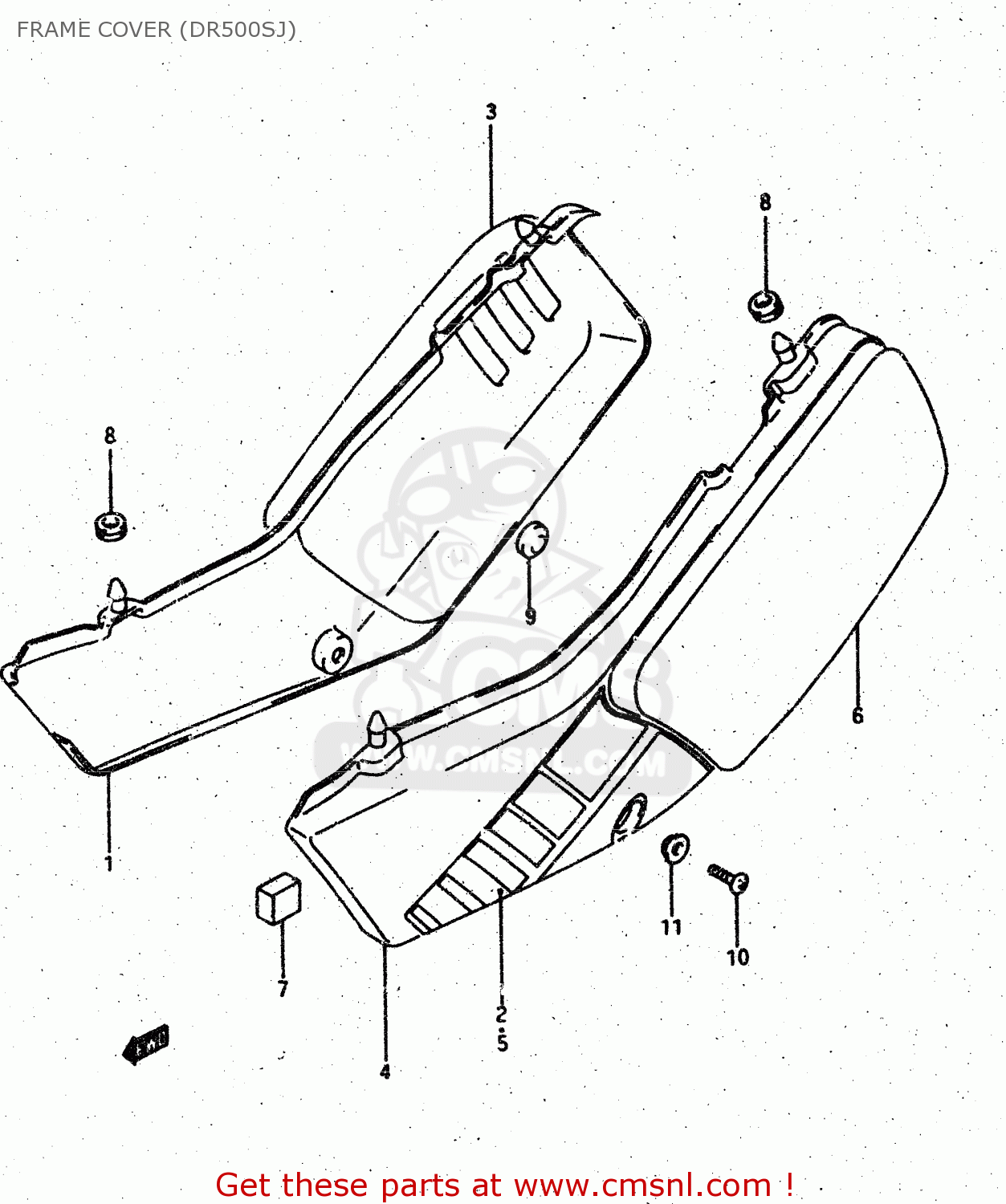

FRAME COVER (DR500SJ)

ref

part #

description

quantity

1-1

4711015A4014L
ref: 1-1

COVER, SIDE RH (WHITE)

€ 61.50

1-2

4711015A4021C
ref: 1-2

COVER, SIDE RH (BLACK)

€ 69.00

1-3

4711015A4034S
ref: 1-3

COVER, SIDE RH (BLUE)

€ 69.00

2-1

6813514A309YE
ref: 2-1
FOR 14L

TAPE, FRONT RH

€ 16.00

2-2

6813514A309DK
ref: 2-2
FOR 21C

TAPE, FRONT RH

€ 0.00

2-3

6813514A309DJ
ref: 2-3
FOR 34S

TAPE, FRONT RH

€ 0.00

3-1

6813214A1033N
ref: 3-1
FOR 14L

TAPE, REAR RH (BLUE)

€ 27.50

3-2

6813214A1008L
ref: 3-2
FOR 21C

TAPE, REAR RH (BLUE)

€ 19.00

3-3

6813214A10064
ref: 3-3
FOR 34S

TAPE, REAR RH (WHITE)

€ 19.00

4-1

4721015A4014L
ref: 4-1

COVER, SIDE LH (WHITE)

€ 61.50

4-2

4721015A4021C
ref: 4-2

COVER, SIDE LH (BLACK)

€ 59.00

4-3

4721015A4034S
ref: 4-3

COVER, SIDE LH (BLUE)

€ 59.00

5-1

6814514A309YE
ref: 5-1
FOR 14L

TAPE, FRONT LH

€ 16.00

5-2

6814514A309DK
ref: 5-2
FOR 21C

TAPE, FRONT LH

€ 0.00

5-3

6814514A3090J
ref: 5-3
FOR 34S

TAPE, FRONT LH

€ 0.00

6-1

6814214A1033N
ref: 6-1
FOR 14L

TAPE, REAR LH (BLUE)

€ 27.50

6-2

6814214A1008L
ref: 6-2
FOR 21C

TAPE, REAR LH (BLUE)

€ 19.00

6-3

6814214A10064
ref: 6-3
FOR 34S

TAPE, REAR LH (WHITE)

€ 19.00

7

4716548B10
ref: 7

CUSHION,FRAME COVER

€ 2.50

8

4716114A00
ref: 8

CUSHION,SIDE COVER BOSS

€ 2.50

9

0932110013
ref: 9

CUSHION

€ 5.00

10

0214206125
ref: 10

SCREW 6X12

€ 2.00

11

0916906041
ref: 11

WASHER

€ 2.00
