FRONT MASTER CYLINDER

DR500S 1986 (G)

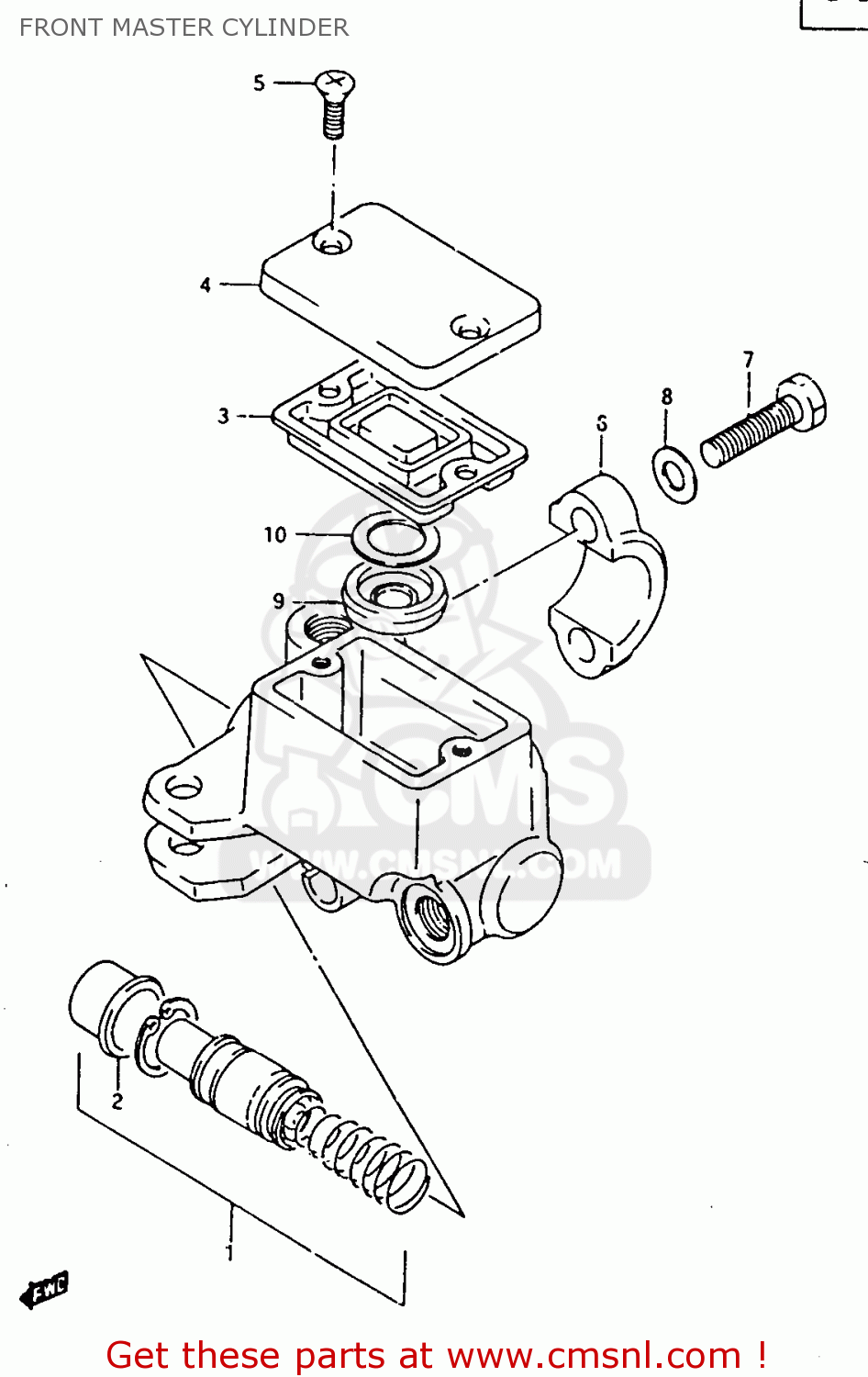

Front master cylinder diagram DR500S 1986 (G)

prices are in EUR

ref

part #

description

quantity

5960014A01
ref: 0
MODEL G/H

CYLINDER ASSEMBLY,FRONT MASTER

€ 206.50

5960014A20
ref: 0
MODEL J

CYLINDER ASSY,FR MASTER

€ 206.50

5960003810
ref: 1

PISTON & CUP SET

€ 32.00

5966644300
ref: 2

BOOT

€ 6.00

5966704700
ref: 3

DIAPHRAGM

€ 8.00

4-1

5966904710
ref: 4-1
MODEL G/H

CAP

€ 12.00

4-2

6966924A00
ref: 4-2
MODEL J

CAP

€ 12.00

6968949300
ref: 5

SCREW

€ 1.50

5967136500
ref: 6

HOLDER

€ 10.00

0110706255
ref: 7

BOLT

€ 2.50

0832221064
ref: 8

WASHER

€ 2.00

5974815400
ref: 9

SEPERATOR

€ 7.50

5974915400
ref: 10

PLATE

€ 2.00
