HEADLAMP HOUSING - FRONT FENDER (DR500RG)

DR500S 1986 (G)

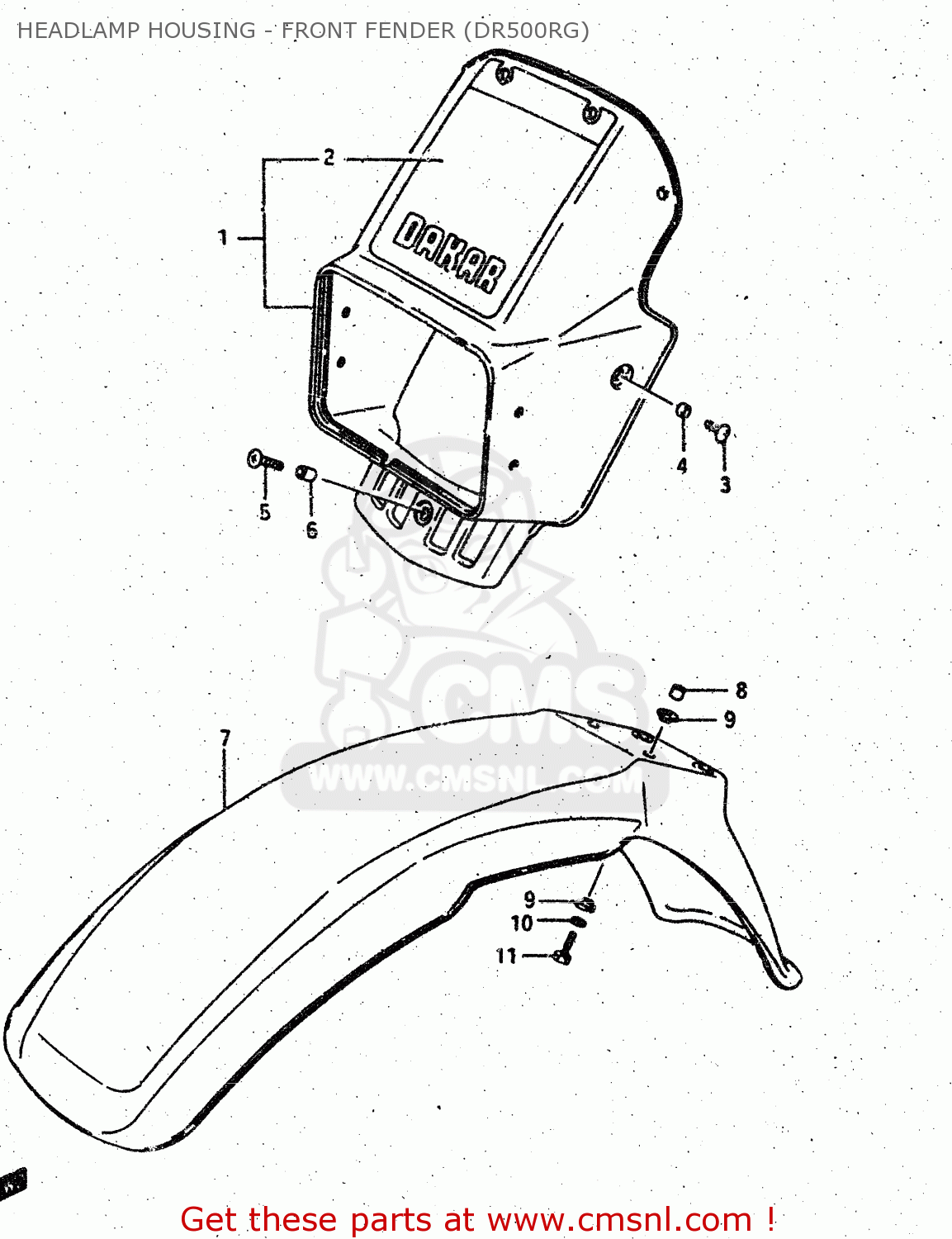

Headlamp housing - front fender (dr500rg) diagram DR500S 1986 (G)

HEADLAMP HOUSING - FRONT FENDER (DR500RG) DR500S 1986 (G)

HEADLAMP HOUSING - FRONT FENDER (DR500RG) DR500S 1986 (G)

prices are in EUR

ref

part #

description

quantity

1

5181014A2010V
ref: 1

COVER, HEADLAMP (WHITE)

€ 132.50

2

6825014A208LD
ref: 2

TAPE SET

€ 0.00

3

0214206125
ref: 3

SCREW 6X12

€ 2.00

4

0918006098
ref: 4

SPACER (6.1X8X3.5)

€ 3.00

5

0214206205
ref: 5

SCREW, CENTER

€ 2.00

6

0918006035
ref: 6

SPACER (6.1X8X12)

€ 2.50

7

5311114A2010V
ref: 7

FENDER, FRONT (WHITE)

€ 70.50

8

0918006038
ref: 8

SPACER(6.1X9X7.5)

€ 2.00

9

0918006048
ref: 9

SPACER

€ 2.00

10

0832121067
ref: 10

WASHER,LOCK

€ 2.50

11

0110706257
ref: 11

BOLT

€ 2.00
