ELECTRICAL

DR600R 1986 (G) (E02 E04 E16 E18 E21 E22 E24 E25 E34)

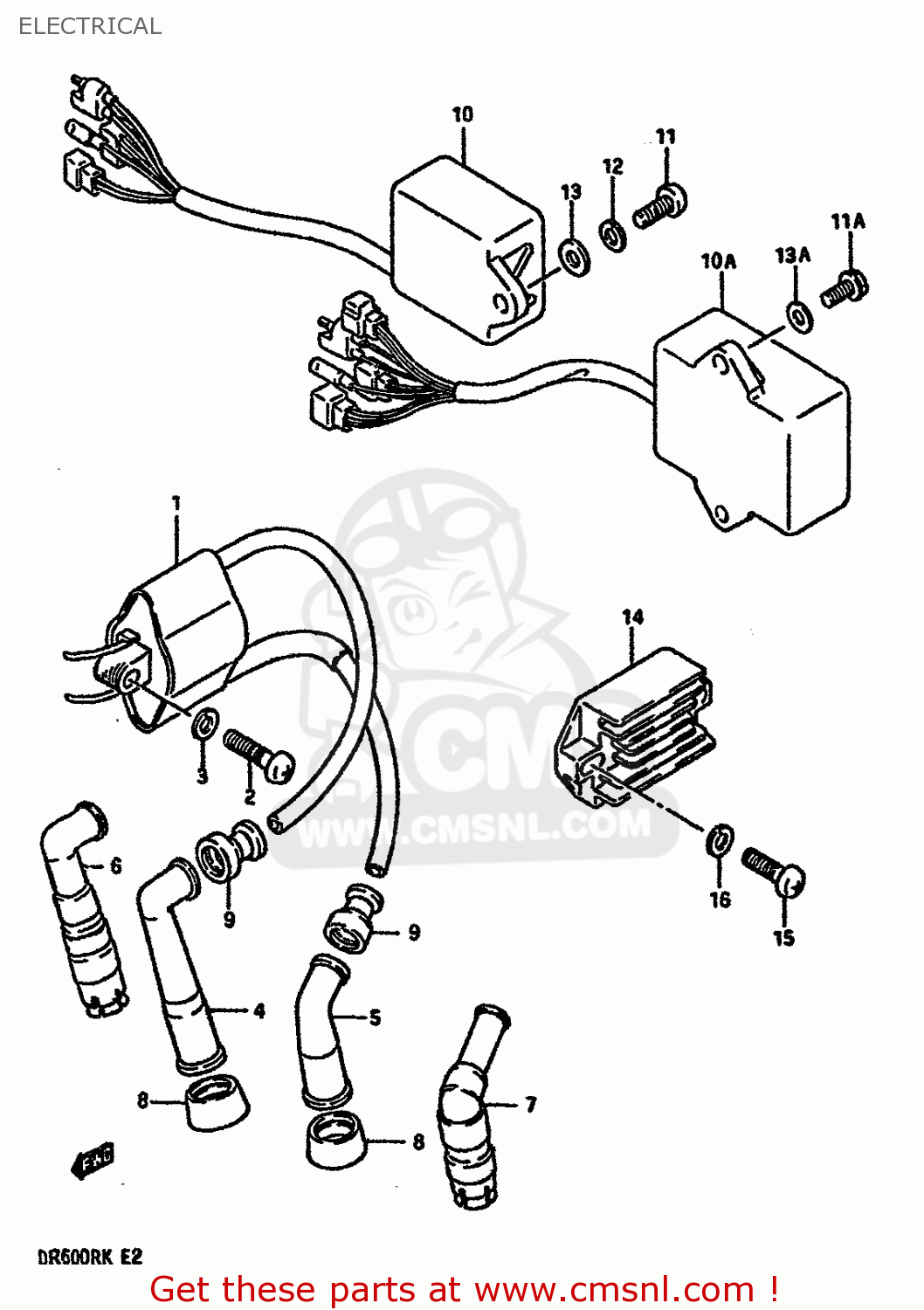

Electrical diagram DR600R 1986 (G) (E02 E04 E16 E18 E21 E22 E24 E25 E34)

ELECTRICAL DR600R 1986 (G) (E02 E04 E16 E18 E21 E22 E24 E25 E34)
ELECTRICAL DR600R 1986 (G) (E02 E04 E16 E18 E21 E22 E24 E25 E34)
ELECTRICAL DR600R 1986 (G) (E02 E04 E16 E18 E21 E22 E24 E25 E34)
prices are in EUR
ref
part #
description
quantity
1
3341014A00
ref: 1
COIL ASSEMBLY,IGNITION
€ 161.50
2
0211206256
ref: 2
SCREW
€ 1.50
3
0832221066
ref: 3
WASHER, LOWER
0832221066
€ 2.00
4
3351045010
ref: 4
CAP ASSY,SPARK PLUG
3351045010
€ 23.00
5
3351043010
ref: 5
CAP,SPARK PLUG
3351043010
€ 11.50
6
3351045411
ref: 6
E16
CAP, SPARK PLUG
3351045411
€ 29.50
7
3351005210
ref: 7
E16
CAP, SPARK PLUG
€ 0.00
8
3354124510
ref: 8
SEAL,SPARK PLUG CAP
3354124510
€ 7.00
9
3354298000
ref: 9
SEAL,SPARK PLU
3354298000
€ 4.50
10
3290014A11
ref: 10
MODEL G/H
CDI UNIT
3290014A11
€ 346.00
10A
3290014A20
ref: 10A
MODEL J/K
CDI UNIT
3290014A20
€ 329.50
11
0211206166
ref: 11
MODEL G/H
SCREW
€ 2.00
11A
0912806005
ref: 11A
MODEL J/K
SCREW
0912806005
€ 2.50
12
0832121066
ref: 12
MODEL G/H
WASHER,LOCK
0832121066
€ 2.00
13
0832221066
ref: 13
MODEL G/H
WASHER, LOWER
0832221066
€ 2.00
13A
0832221067
ref: 13A
MODEL J/K
WASHER
0832221067
€ 2.00
14
3280009300
ref: 14
RECTIFIER ASSEMBLY
3280009300
€ 306.50
15
0211206206
ref: 15
SCREW
0211206206
€ 2.00
16
0832121066
ref: 16
WASHER,LOCK
0832121066
€ 2.00
