FRONT FENDER (MODEL H/J/K)

DR600R 1986 (G) (E02 E04 E16 E18 E21 E22 E24 E25 E34)

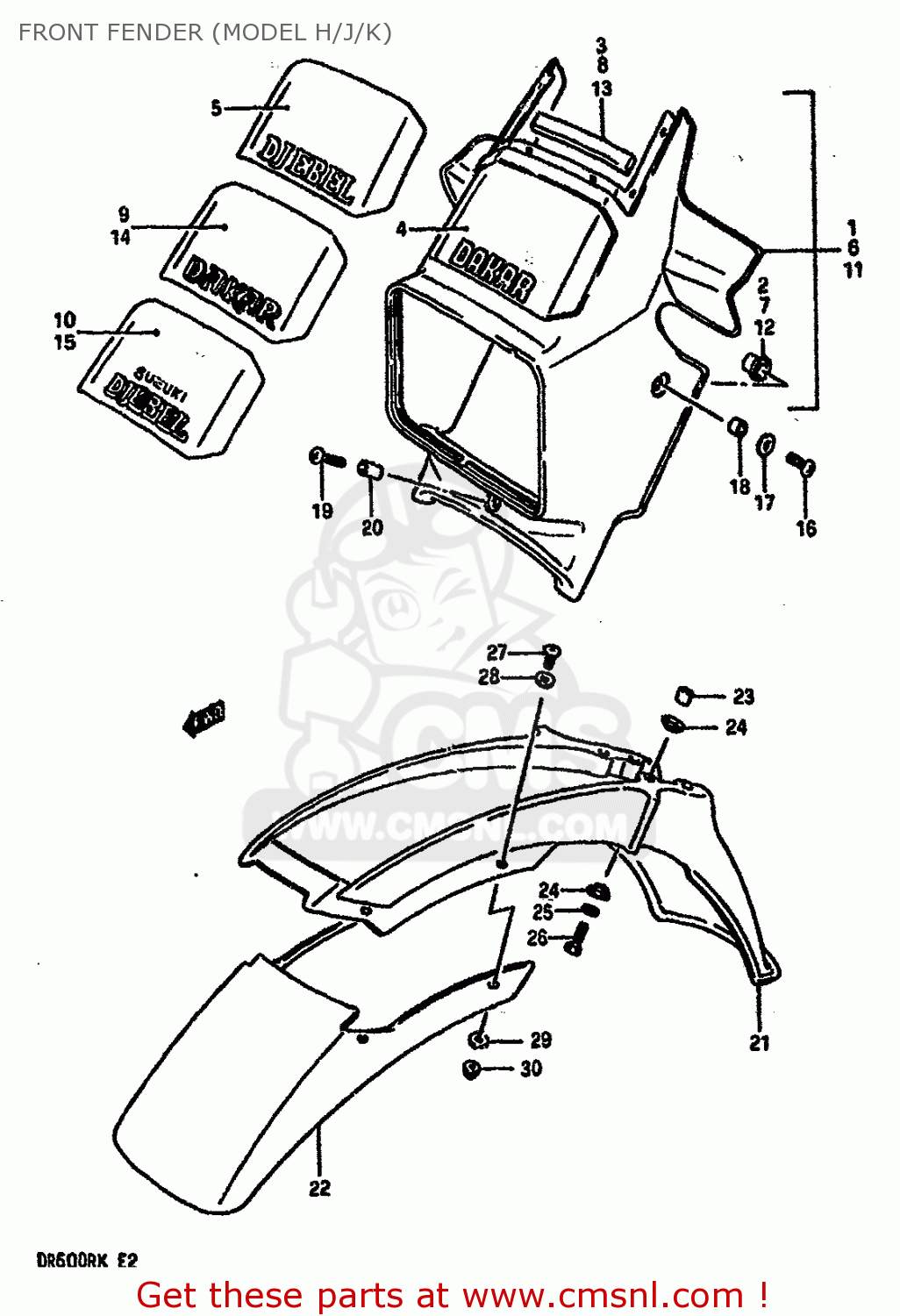

Front fender (model h/j/k) diagram DR600R 1986 (G) (E02 E04 E16 E18 E21 E22 E24 E25 E34)

FRONT FENDER (MODEL H/J/K) DR600R 1986 (G) (E02 E04 E16 E18 E21 E22 E24 E25 E34)
FRONT FENDER (MODEL H/J/K) DR600R 1986 (G) (E02 E04 E16 E18 E21 E22 E24 E25 E34)
FRONT FENDER (MODEL H/J/K) DR600R 1986 (G) (E02 E04 E16 E18 E21 E22 E24 E25 E34)
prices are in EUR
ref
part #
description
quantity
1-1
5180015A2014L
ref: 1-1
MODEL H
COVER, HEADLAMP (WHITE)
5180015A2014L
€ 121.00
1-2
5180015A0014L
ref: 1-2
MODEL H E4,E34,E53
COVER,HEADLAMP (WHITE)
€ 121.00
2
5182115A0014L
ref: 2
MODEL H
BUSH, SIDE (WHITE)
5182115A0014L
€ 4.50
3
5182715A00
ref: 3
MODEL H
CUSHION,HEADLAMP COVER
5182715A00
€ 8.00
4
6825014A409LJ
ref: 4
MODEL H
TAPE, HEADLAMP COVER
€ 20.00
5
6825014A509LR
ref: 5
MODEL H E4,E34,E53
TAPE,HEADLAMP COVER
6825014A509LR
€ 22.50
6-1
5180015A4014L
ref: 6-1
MODEL J
COVER,HEADLAMP (WHITE)
€ 121.00
6-2
5180015A3014L
ref: 6-2
MODEL J E4,E34,E53
COVER,HEADLAMP (WHITE)
€ 121.00
7
5182115A0014L
ref: 7
MODEL J
BUSH, SIDE (WHITE)
5182115A0014L
€ 4.50
8
5182715A00
ref: 8
MODEL J
CUSHION,HEADLAMP COVER
5182715A00
€ 8.00
9
6872514A109PL
ref: 9
MODEL J
TAPE,HEADLAMP COVER
€ 22.50
10
6872514A009PL
ref: 10
MODEL J E4,E34,E53
TAPE,HEADLAMP COVER
6872514A009PL
€ 22.50
11-1
5180015A6030H
ref: 11-1
MODEL K
HOUSING ASSEMBLY,HEADLAMP
€ 121.00
11-2
5180015A5030H
ref: 11-2
MODEL K E4,E34,E53
COVER,HEADLAMP (WHITE)
€ 121.00
12
5182115A0030H
ref: 12
MODEL K
BUSHING,HEADLAMP COVER,SIDE
5182115A0030H
€ 4.50
13
5182715A00
ref: 13
MODEL K
CUSHION,HEADLAMP COVER
5182715A00
€ 8.00
14
6872514A309PK
ref: 14
MODEL K
TAPE,HEADLAMP COVER
€ 21.00
15
6872514A209PK
ref: 15
MODEL K E4,E34,E53
TAPE,HEADLAMP COVER
€ 22.50
16-1
0214206164
ref: 16-1
MODEL H/J
SCREW
0214206164
€ 2.50
16-2
0913606061
ref: 16-2
MODEL K
SCREW(6X16)
0913606061
€ 3.00
17
0916006069
ref: 17
WASHER
0916006069
€ 2.00
18
0918006152
ref: 18
SPACER
0918006152
€ 3.00
19
0214206405
ref: 19
SCREW, LOWER
€ 2.00
20
0918006170
ref: 20
SPACER (6.1X9X31.5)
0918006170
€ 4.00
21-1
5311115A0014L
ref: 21-1
MODEL H/J
FENDER, FRONT REAR (WHITE)
5311115A0014L
€ 73.00
21-2
5311115A0030H
ref: 21-2
MODEL K
FENDER, FRONT REAR (WHITE)
€ 73.00
22
5311215A0033N
ref: 22
FENDER, FRONT (BLUE)
€ 38.00
23
0918006038
ref: 23
SPACER(6.1X9X7.5)
0918006038
€ 2.00
24
0916906053
ref: 24
WASHER
0916906053
€ 2.00
25
0832121067
ref: 25
WASHER,LOCK
0832121067
€ 2.50
26
0110706257
ref: 26
BOLT
€ 2.00
27-1
0214206164
ref: 27-1
MODEL H/J
SCREW
0214206164
€ 2.50
27-2
0913606062
ref: 27-2
MODEL K
SCREW (6X16)
0913606062
€ 2.50
28
0916006039
ref: 28
WASHER (6.5X18X1.6)
0916006039
€ 2.00
29
0916006003
ref: 29
WASHER (6.7X16X1.8)
€ 2.00
30
0831931065
ref: 30
NUT
0831931065
€ 2.50
