REAR SHOCK ABSORBER

DR600R 1986 (G) (E02 E04 E16 E18 E21 E22 E24 E25 E34)

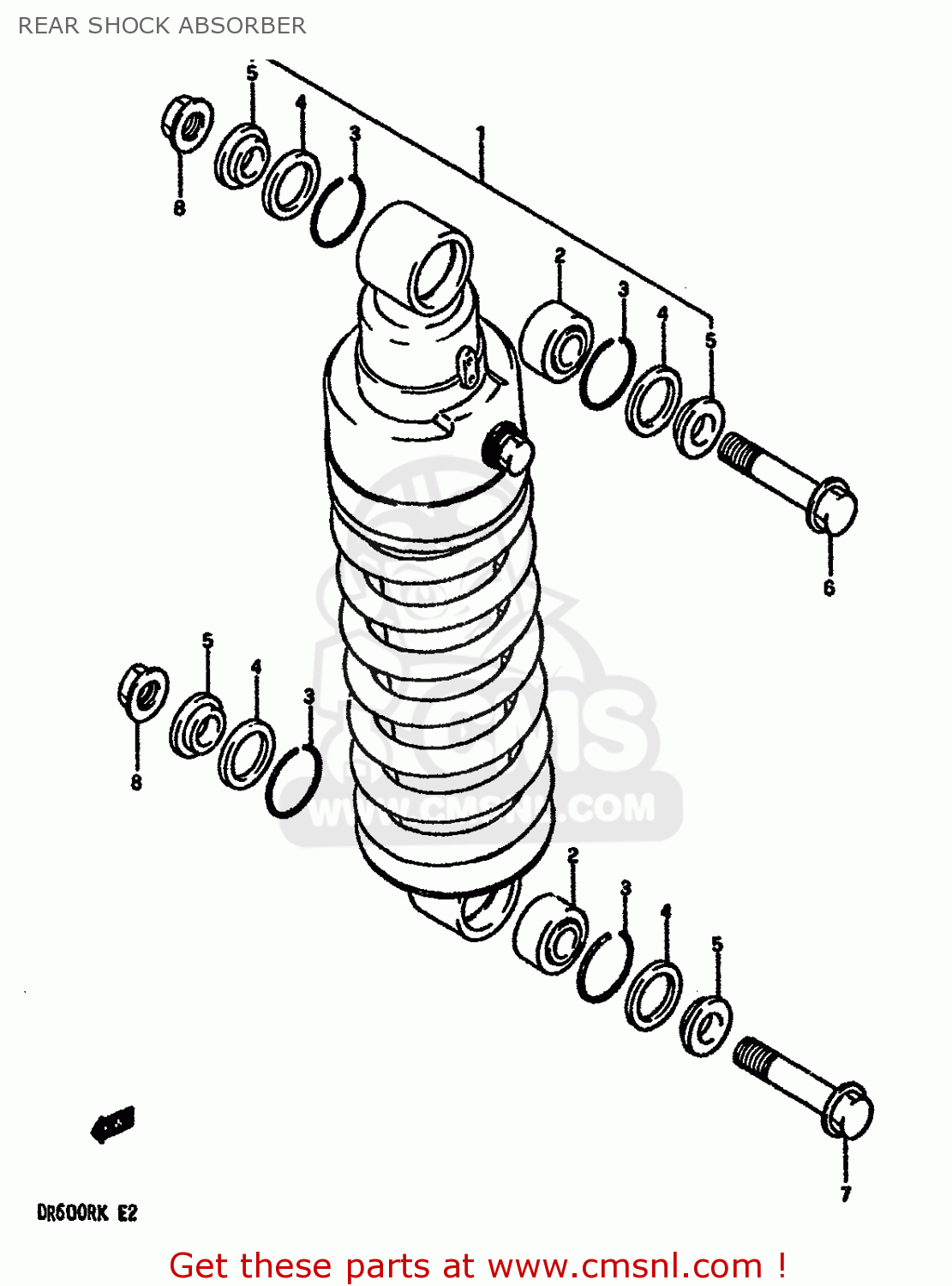

Rear shock absorber diagram DR600R 1986 (G) (E02 E04 E16 E18 E21 E22 E24 E25 E34)

prices are in EUR

ref

part #

description

quantity

1-1

6210014A0219F
ref: 1-1
MODEL G

ABSORBER ASSY, REAR SHOCK (BLUE)

€ 724.00

1-2

6210014A0234S
ref: 1-2
MODEL H/J/K

ABSORBER ASSY, REAR SHOCK (BLUE)

€ 724.00

6217543400
ref: 2

BEARING,REAR SHOCK ABSORBER

€ 66.00

6227714200
ref: 3

RING

€ 1.50

6222614520
ref: 4

SEAL,DUST RR SHOCK ABSORBER

€ 12.50

6268414520
ref: 5

COLLAR

€ 7.00

0910310040
ref: 6

BOLT(10X54)

€ 5.50

0910310030
ref: 7

BOLT(10X52)

€ 8.50

0831931107
ref: 8

NUT

€ 3.00
