SPEEDOMETER (MODEL G)

DR600R 1986 (G) (E02 E04 E16 E18 E21 E22 E24 E25 E34)

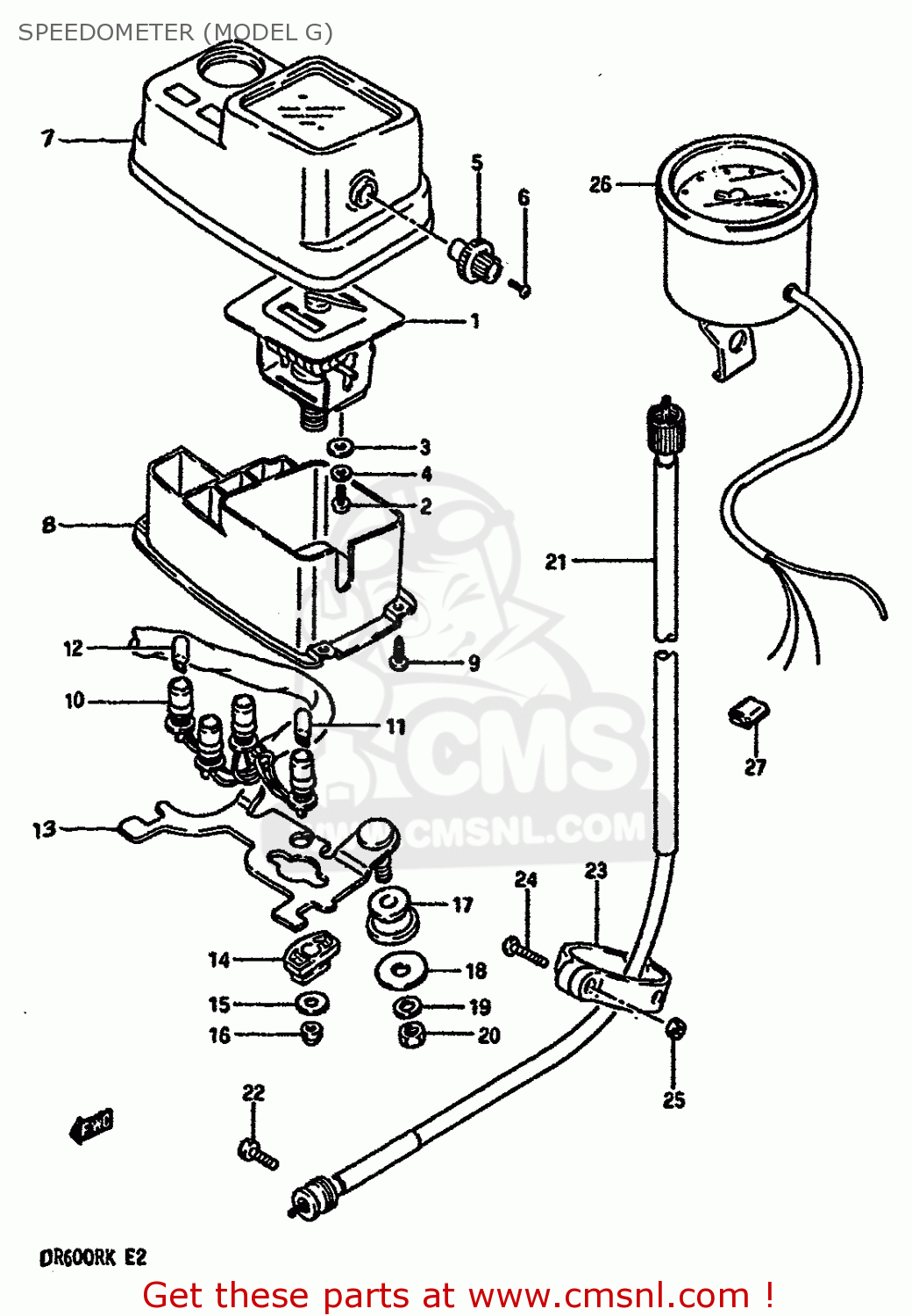

Speedometer (model g) diagram DR600R 1986 (G) (E02 E04 E16 E18 E21 E22 E24 E25 E34)

SPEEDOMETER (MODEL G) DR600R 1986 (G) (E02 E04 E16 E18 E21 E22 E24 E25 E34)
SPEEDOMETER (MODEL G) DR600R 1986 (G) (E02 E04 E16 E18 E21 E22 E24 E25 E34)
SPEEDOMETER (MODEL G) DR600R 1986 (G) (E02 E04 E16 E18 E21 E22 E24 E25 E34)
prices are in EUR
ref
part #
description
quantity
1-1
3412014A20
ref: 1-1
E2
SPEEDOMETER (KM/MPH)
3412014A20
€ 124.00
1-2
3412014A10
ref: 1-2
E4,E6,E15,E16,E17,E1
SPEEDOMETER (KILO)
3412014A10
€ 164.50
2
0211204126
ref: 2
SCREW
€ 1.50
3
0832221046
ref: 3
WASHER
€ 5.00
4
0832121046
ref: 4
LOCK WASHER
0832121046
€ 2.00
5
3412414A10
ref: 5
KNOB,TRIP
3412414A10
€ 8.50
6
3498113A00
ref: 6
FROM 34125-14A10
ROTOR,SPEED
3498113A00
€ 2.00
7-1
3415014A10
ref: 7-1
HOOD,METER
3415014A10
€ 48.00
7-2
3415014A70
ref: 7-2
E17
HOOD,METER
3415014A70
€ 51.00
8
3411114A10
ref: 8
CASE,METER
3411114A10
€ 36.50
9
3418314A00
ref: 9
SCREW
€ 1.50
10
3417314A10
ref: 10
SOCKET,METER
€ 0.00
11
0947112028
ref: 11
BULB(12V3.4W,T10)
0947112028
€ 3.50
12
0947112077
ref: 12
BULB(12V1.7W,T10,WB121)
0947112077
€ 1.00
13
3495014A10
ref: 13
BRACKET,METER
3495014A10
€ 41.00
14
3418914A10
ref: 14
CUSHION
3418914A10
€ 5.00
15
0916005031
ref: 15
WASHER
€ 1.50
16
0831311055
ref: 16
NUT
0831311055
€ 2.00
17
3495631001
ref: 17
CUSHION,METER BRACKET
3495631001
€ 4.50
18
0916008057
ref: 18
WASHER (8.5X20X1.6)
0916008057
€ 2.00
19
0832121084
ref: 19
WASHER,LOCK,8.
0832121084
€ 2.50
20
0831011085
ref: 20
NUT
€ 1.50
21
3491014A00
ref: 21
CABLE ASSEMBLY,SPEEDOMETER
3491014A00
€ 58.50
22
0110705167
ref: 22
BOLT
€ 1.50
23
3493814A01
ref: 23
CLAMP,SPEEDOMETER CABLE
3493814A01
€ 10.00
24
0211205208
ref: 24
SCREW 5X20
0211205208
€ 3.00
25
0831011058
ref: 25
NUT
0831011058
€ 2.50
26
3420014A00
ref: 26
OPT
METER,TACHOMETER
3420014A00
€ 454.50
27
3685936590
ref: 27
OPT
CONNECTOR,LEAD WIRE
3685936590
€ 7.00
