FRAME

DR600R 1986 (G) (E02 E04 E16 E18 E21 E22 E24 E25 E34)

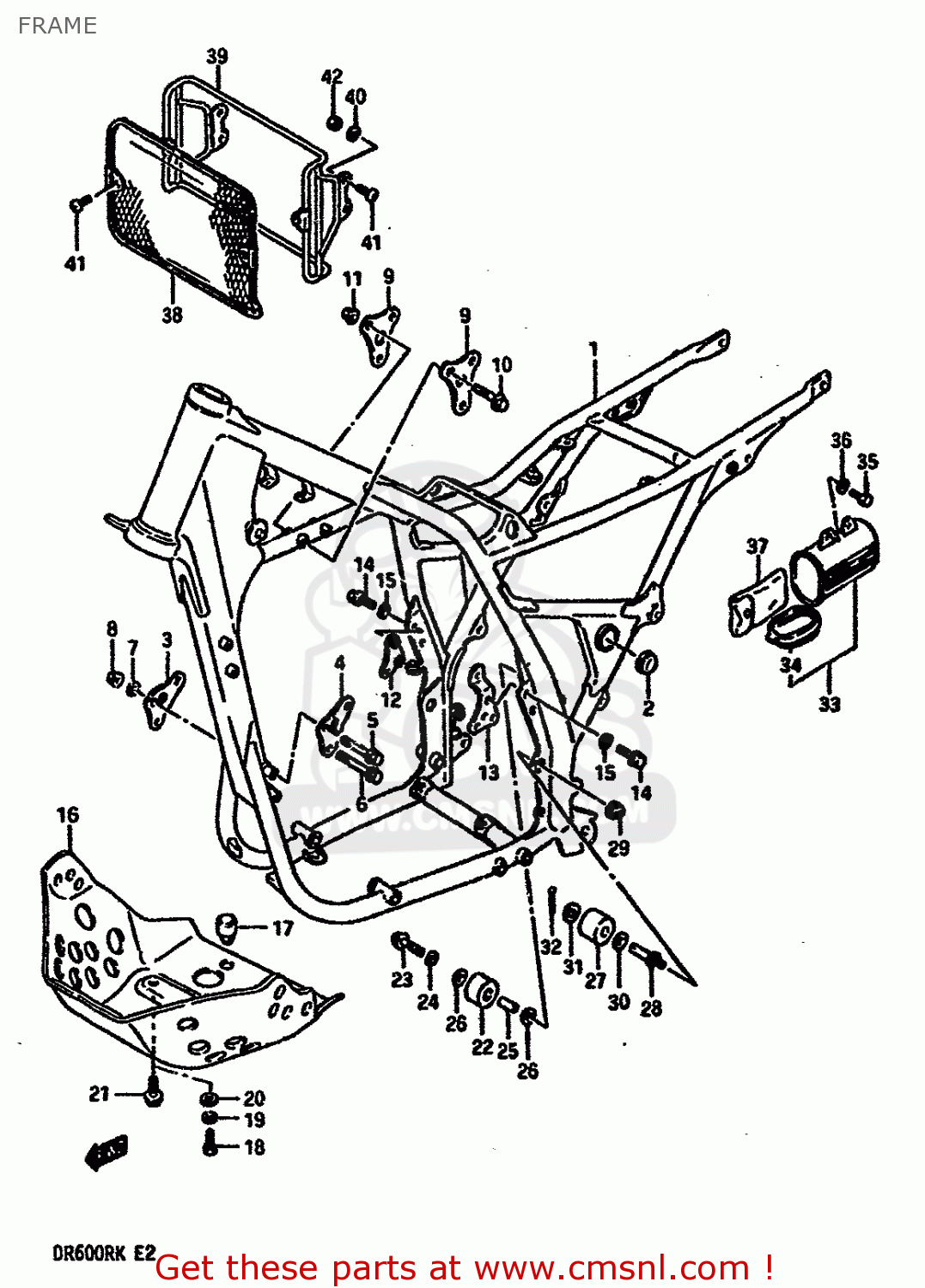

Frame diagram DR600R 1986 (G) (E02 E04 E16 E18 E21 E22 E24 E25 E34)

FRAME DR600R 1986 (G) (E02 E04 E16 E18 E21 E22 E24 E25 E34)
FRAME DR600R 1986 (G) (E02 E04 E16 E18 E21 E22 E24 E25 E34)
FRAME DR600R 1986 (G) (E02 E04 E16 E18 E21 E22 E24 E25 E34)
prices are in EUR
ref
part #
description
quantity
1-1
4110015A0010V
ref: 1-1
MODEL G E4,E21,E24,E
FRAME (WHITE)
€ 0.00
1-2
4110015A3010V
ref: 1-2
MODEL G
FRAME (WHITE)
€ 195.00
1-3
4110015A7010V
ref: 1-3
MODEL G E22
FRAME (WHITE)
€ 0.00
1-4
4110015A3034S
ref: 1-4
MODEL H
FRAME (BLUE)
€ 195.00
1-5
4110015A8034S
ref: 1-5
MODEL J
FRAME (BLUE)
€ 0.00
1-6
4110015A0034S
ref: 1-6
MODEL H E4,E6,E24
FRAME (BLUE)
€ 0.00
1-7
4110015A7034S
ref: 1-7
MODEL H E22
FRAME (BLUE)
€ 0.00
1-8
4110015C2034S
ref: 1-8
MODEL J E15,E17,E22
FRAME (BLUE)
€ 0.00
1-9
4110015A1034S
ref: 1-9
MODEL H E34,E53
FRAME (BLUE)
€ 0.00
1-10
4110015C1034S
ref: 1-10
MODEL J E34
FRARM (BLUE)
€ 0.00
1-11
4110014C3134S
ref: 1-11
MODEL K
FRAME (BLUE)
€ 1,069.00
1-12
4110014C4134S
ref: 1-12
MODEL K E15,E17,E22
FRAME (BLUE)
€ 0.00
1-13
4110014C5134S
ref: 1-13
MODEL K E34
FRAME (BLUE)
€ 1,069.00
2-1
4149914A0010V
ref: 2-1
MODEL G
CAP, CUSHION LEVER (WHITE)
€ 3.00
2-2
4149914A0034S
ref: 2-2
MODEL H/J/K
CAP, CUSHION LEVER (BLUE)
€ 3.00
3
4191114A00291
ref: 3
PLATE,ENGINE MOUNTING,FRONT
4191114A00291
€ 6.00
4
4192114A00291
ref: 4
PLATE,ENGINE MOUNTING,FRONT
4192114A00291
€ 6.00
5
0910308037
ref: 5
BOLT(8X67)
0910308037
€ 6.50
6
0910308063
ref: 6
BOLT(8X75)
0910308063
€ 79.50
7
0832131087
ref: 7
WASHER,LOCK
€ 2.00
8
0831921088
ref: 8
NUT
0831921088
€ 1.50
9
4199114A00291
ref: 9
PLATE,ENGINE MOUNTING,UPPER
4199114A00291
€ 7.50
10
0151708508
ref: 10
BOLT
0151708508
€ 3.50
11
0831931087
ref: 11
NUT
0831931087
€ 2.50
12
4194014A00291
ref: 12
PLATE,ENGINE MOUNTING,REAR
€ 0.00
13
4195014A00291
ref: 13
PLATE,ENGINE MOUNTING,REAR
€ 0.00
14
0151708207
ref: 14
BOLT
€ 3.00
15
0832131087
ref: 15
WASHER,LOCK
€ 2.00
16-1
4251114A10
ref: 16-1
MODEL G
PROTECTOR, ENGINE
€ 257.00
16-2
4251114A20
ref: 16-2
MODEL H/J/K
PROTECTOR,ENGINE
4251114A20
€ 257.00
17
0932110017
ref: 17
CUSHION
0932110017
€ 5.50
18
0110706167
ref: 18
MODEL G
BOLT
0110706167
€ 3.00
19
0832131067
ref: 19
MODEL G
WASHER,LOCK
0832131067
€ 2.50
20
0916006002
ref: 20
MODEL G
WASHER (6.5X24X1.2)
0916006002
€ 2.00
21
0151708167
ref: 21
MODEL H/J/K
BOLT 8X16
€ 3.00
22
4391001B00
ref: 22
ROLLER,CHAIN CONTROL
4391001B00
€ 36.50
23
0110708408
ref: 23
BOLT 8X40
0110708408
€ 3.00
24
0832131087
ref: 24
WASHER,LOCK
€ 2.00
25
0918008119
ref: 25
SPACER(8.6X12X25.5)
0918008119
€ 6.50
26
0821108161
ref: 26
WASHER
0821108161
€ 2.00
27
4391114200
ref: 27
ROLLER,CHAIN LENGTH CONTROL
4391114200
€ 18.50
28
4391514A00
ref: 28
BOLT,CHAIN LENGTH CONT LWR
4391514A00
€ 30.50
29
0831931107
ref: 29
NUT
0831931107
€ 3.00
30
0832221128
ref: 30
WASHER
0832221128
€ 2.00
31
4931715A00
ref: 31
WASHER
4931715A00
€ 4.50
32
0411125208
ref: 32
PIN 25X20
0411125208
€ 2.00
33
4155037210
ref: 33
HOLDER,TOOL
4155037210
€ 20.50
34
4155237210
ref: 34
CAP,HOLDER
4155237210
€ 5.00
35
0110706165
ref: 35
BOLT 6X16
0110706165
€ 2.00
36
0916006039
ref: 36
WASHER (6.5X18X1.6)
0916006039
€ 2.00
37
0980000242
ref: 37
TOOL ASSY
€ 55.00
38
4851014A01
ref: 38
GUARD, HEADLAMP
€ 26.00
39
4852014A00
ref: 39
BRACE, HEADLAMP GUARD
€ 49.00
40
0916006069
ref: 40
WASHER
0916006069
€ 2.00
41
0214206125
ref: 41
SCREW 6X12
0214206125
€ 2.00
42
0831921065
ref: 42
NUT
0831921065
€ 2.50
