HEADLAMP

DR600R 1986 (G) (E02 E04 E16 E18 E21 E22 E24 E25 E34)

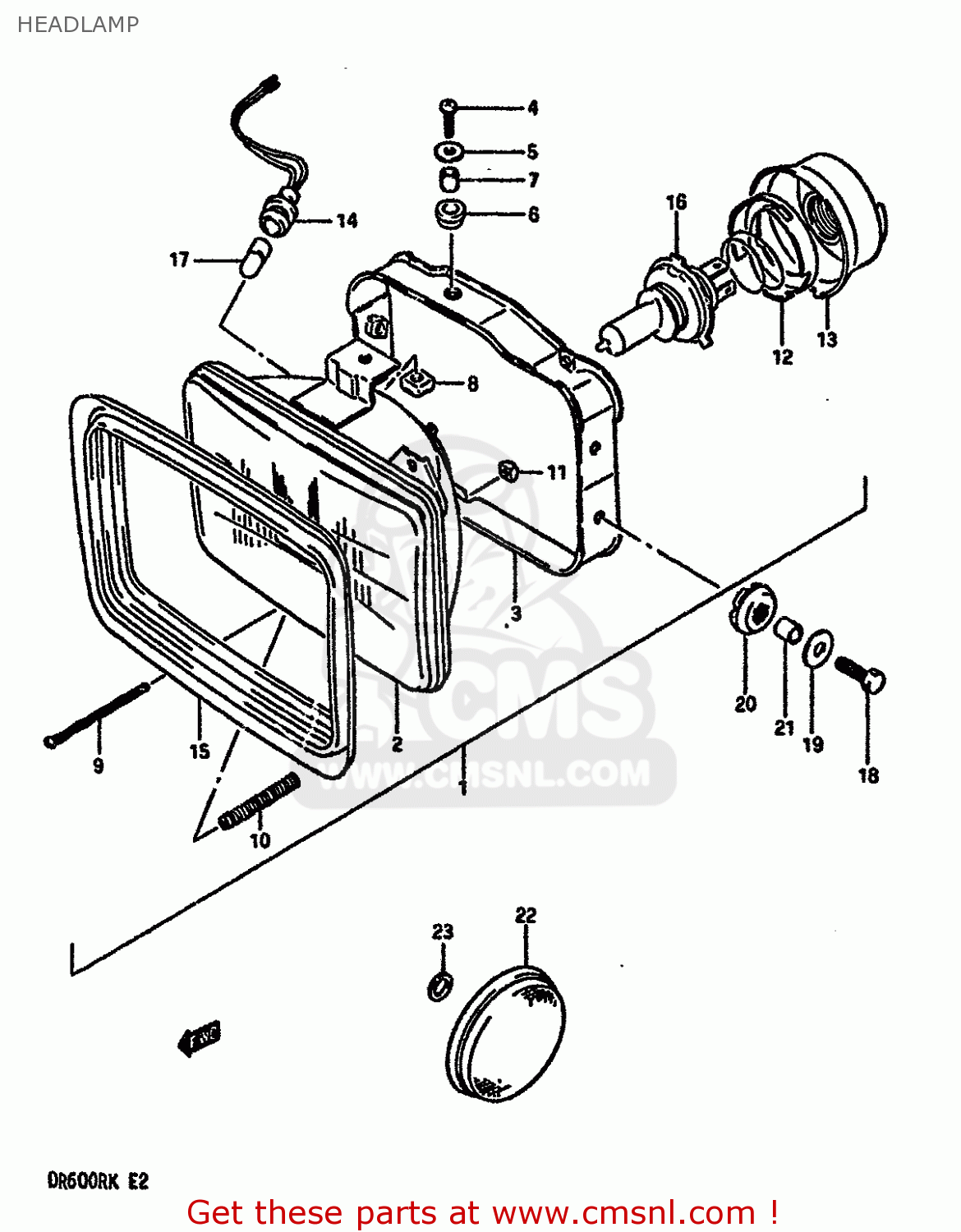

Headlamp diagram DR600R 1986 (G) (E02 E04 E16 E18 E21 E22 E24 E25 E34)

HEADLAMP DR600R 1986 (G) (E02 E04 E16 E18 E21 E22 E24 E25 E34)
HEADLAMP DR600R 1986 (G) (E02 E04 E16 E18 E21 E22 E24 E25 E34)
HEADLAMP DR600R 1986 (G) (E02 E04 E16 E18 E21 E22 E24 E25 E34)
prices are in EUR
ref
part #
description
quantity
1-1
3510014A00999
ref: 1-1
MODEL G E2
HEADLAMP ASSY
€ 176.50
1-2
3510014C00999
ref: 1-2
MODEL H/J/K E2
HEADLAMP ASSY
€ 176.50
1-3
3510014A50999
ref: 1-3
MODEL G E4,E15,E16,E
HEADLAMP ASSY
3510014A50999
€ 175.50
1-4
3510014C50999
ref: 1-4
MODEL H/J/K E4,E15,E
HEADLAMP ASSY
€ 175.50
1-5
3510014A30999
ref: 1-5
MODEL G E24
HEADLAMP ASSEMBLY
€ 180.50
1-6
3510014C30999
ref: 1-6
E6,MODEL H/J/K E24
HEADLAMP ASSEMBLY
€ 180.50
2-1
3512114A00
ref: 2-1
MODEL G E2
LAMP UNIT
€ 102.00
2-2
3512114C00
ref: 2-2
MODEL H/J/K E2
UNIT
€ 102.00
2-3
3512114A50
ref: 2-3
MODEL G E4,E16,E18,E
UNIT
3512114A50
€ 102.00
2-4
3512114C50
ref: 2-4
MODEL H/J/K E4,E15,E
UNIT
3512114C50
€ 102.00
2-5
3512114A30
ref: 2-5
MODEL G E24
LAMP UNIT
€ 90.00
2-6
3512114C30
ref: 2-6
E6,MODEL H/J/K E24
LAMP UNIT
€ 90.00
3
3514114A00
ref: 3
HOUSING
3514114A00
€ 31.00
4
0211205208
ref: 4
SCREW 5X20
0211205208
€ 3.00
5
3513845230
ref: 5
WASHER
3513845230
€ 2.00
6
3513945230
ref: 6
CUSHION
3513945230
€ 1.50
7
3513314A00
ref: 7
SPACER
3513314A00
€ 3.50
8
3513545900
ref: 8
NUT
3513545900
€ 2.50
9
3515149200
ref: 9
SCREW,HEADLAMP ADJUST
3515149200
€ 4.00
10
3515449200
ref: 10
SPRING
3515449200
€ 3.50
11
3513545600
ref: 11
NUT
3513545600
€ 3.00
12
3513601A00
ref: 12
HOLDER,BULB
3513601A00
€ 6.00
13
3517301440
ref: 13
COVER,SOCKET
3517301440
€ 10.00
14
3611845900
ref: 14
SOCKET,PARKING
3611845900
€ 13.00
15
3512914C00
ref: 15
MODEL H/J/K
SHADE
3512914C00
€ 20.00
16-1
0947112060
ref: 16-1
BULB(12V60/55W,H4)
0947112060
€ 8.00
16-2
0947112061
ref: 16-2
E4,EXECUTED LOCALLY
BULB (12V, 60/55W, H4)
€ 0.00
17-1
0947112001
ref: 17-1
E2
BULB(12V3.4W,STANLEY,A72A)
0947112001
€ 1.50
17-2
0947112063
ref: 17-2
E4,E15,E16,E17,E18,E
BULB(12V4W)
0947112063
€ 6.00
18
0110706207
ref: 18
BOLT
0110706207
€ 2.00
19
0916006027
ref: 19
WASHER (6.5X20X1.2)
0916006027
€ 2.00
20
0932009018
ref: 20
CUSHION
0932009018
€ 2.00
21
0918006030
ref: 21
SPACER (6.8X10X10)
0918006030
€ 2.00
22
3595014A00
ref: 22
E39
REFLECTOR,REFLEX FR
3595014A00
€ 15.00
23
0832121057
ref: 23
E39
LOCK WASHER
0832121057
€ 2.00
