CYLINDER

DR600R 1987 (H) (E02 E04 E06 E15 E16 E17 E18 E22 E24 E25 E34 E53

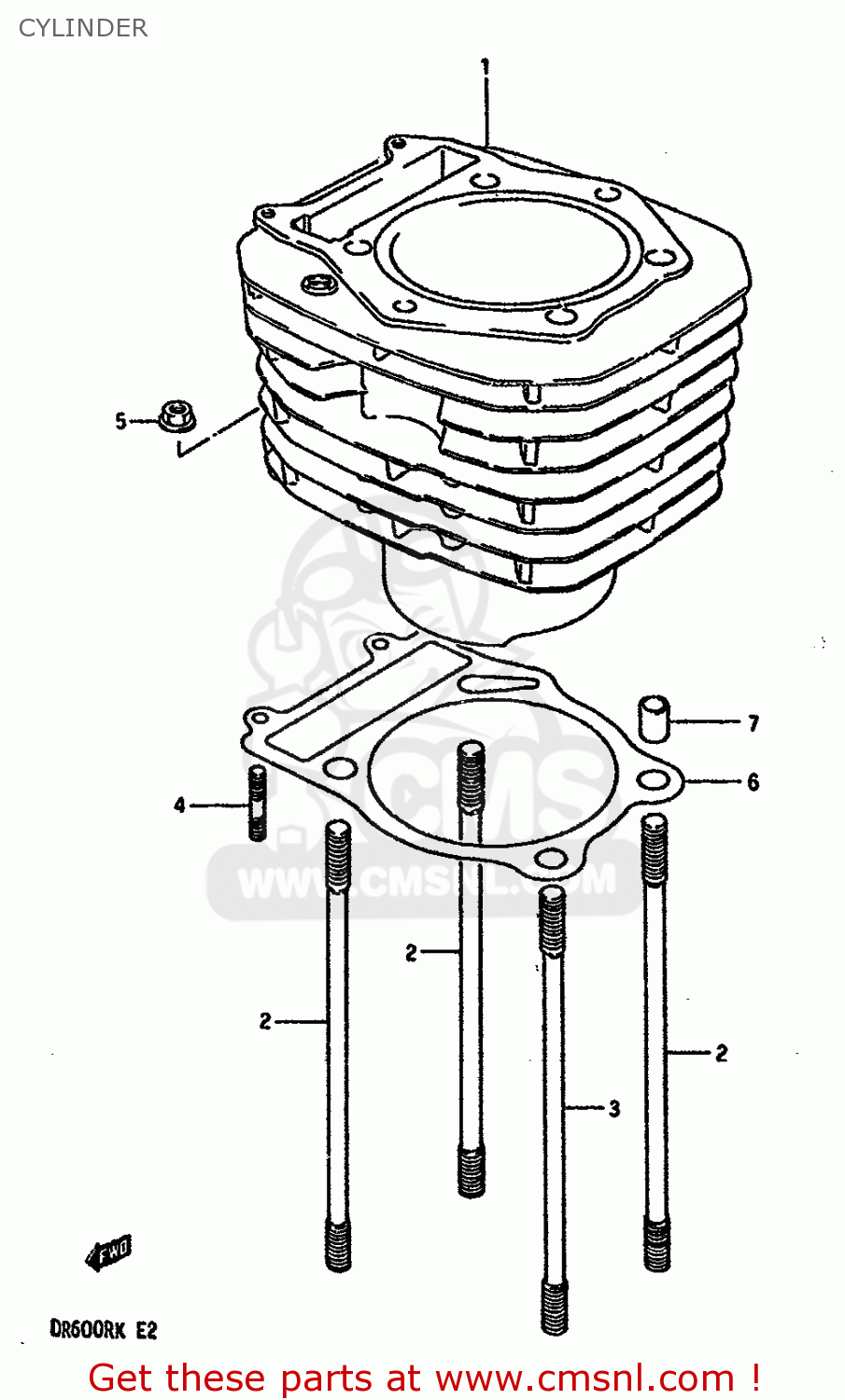

Cylinder diagram DR600R 1987 (H) (E02 E04 E06 E15 E16 E17 E18 E22 E24 E25 E34 E53

CYLINDER DR600R 1987 (H) (E02 E04 E06 E15 E16 E17 E18 E22 E24 E25 E34 E53

CYLINDER DR600R 1987 (H) (E02 E04 E06 E15 E16 E17 E18 E22 E24 E25 E34 E53

prices are in EUR

ref

part #

description

quantity

1

1121014A02
ref: 1

CYLINDER

€ 594.00

2

0910810039
ref: 2

STUD

€ 9.00

3

0910810075
ref: 3

STUD

€ 8.50

4

0142106205
ref: 4

STUD BOLT L:20

€ 2.50

5

0831616064
ref: 5

NUT 6MM

€ 2.50

6-1

1124114A01
ref: 6-1

GASKET,CYLINDER (MCA)

€ 27.00

6-2

1124114A01H17
ref: 6-2
E17

GASKET,CYLINDER (NAS)

€ 27.00

7

0920613001
ref: 7

PIN

€ 2.50
