FRONT MASTER CYLINDER

DR600R 1987 (H) (E02 E04 E06 E15 E16 E17 E18 E22 E24 E25 E34 E53

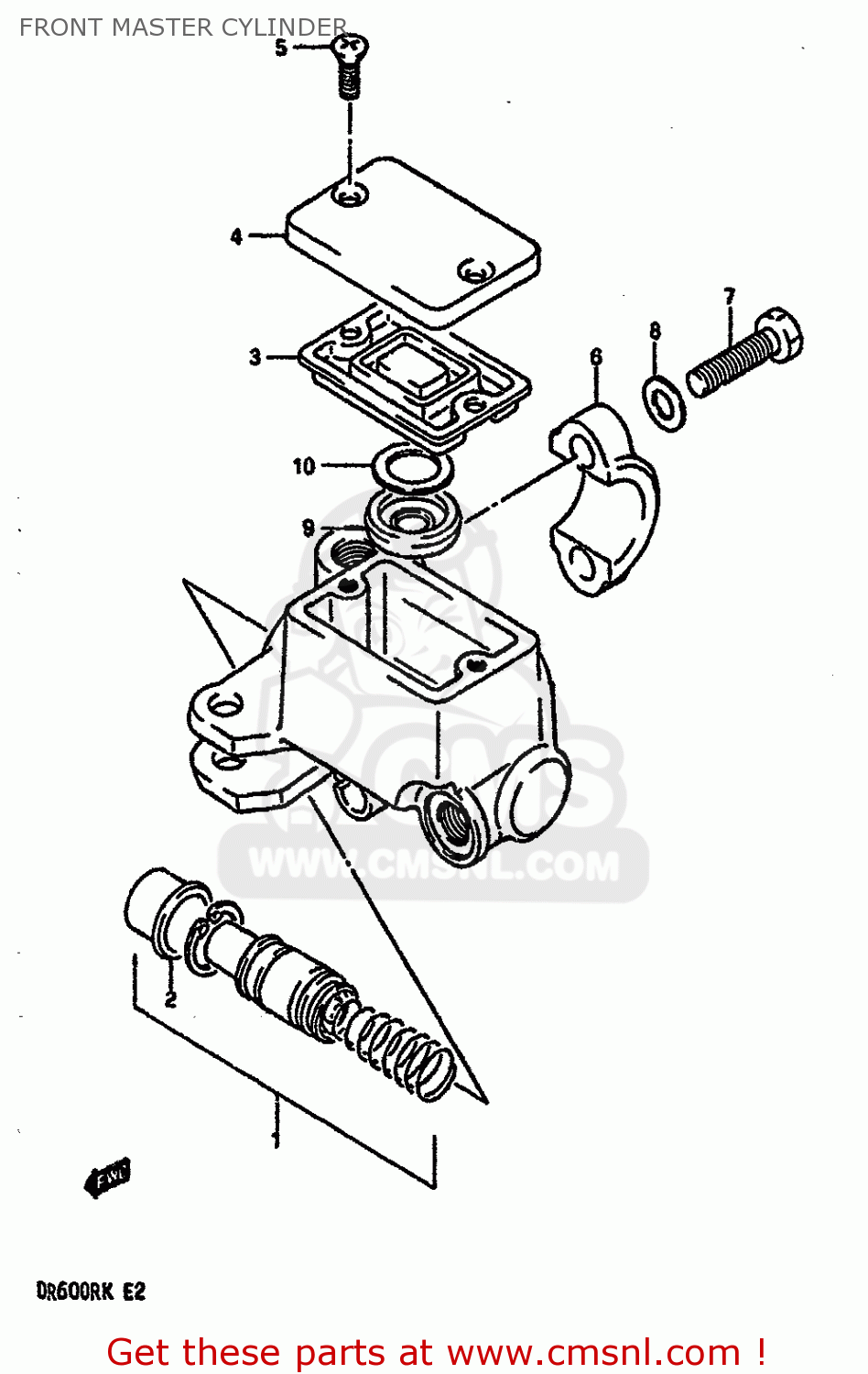

Front master cylinder diagram DR600R 1987 (H) (E02 E04 E06 E15 E16 E17 E18 E22 E24 E25 E34 E53

FRONT MASTER CYLINDER DR600R 1987 (H) (E02 E04 E06 E15 E16 E17 E18 E22 E24 E25 E34 E53
FRONT MASTER CYLINDER DR600R 1987 (H) (E02 E04 E06 E15 E16 E17 E18 E22 E24 E25 E34 E53
FRONT MASTER CYLINDER DR600R 1987 (H) (E02 E04 E06 E15 E16 E17 E18 E22 E24 E25 E34 E53
prices are in EUR
ref
part #
description
quantity
0
5960014A01
ref: 0
MODEL G/H/J
CYLINDER ASSEMBLY,FRONT MASTER
5960014A01
€ 206.50
0
5960014A20
ref: 0
MODEL K
CYLINDER ASSY,FR MASTER
5960014A20
€ 206.50
0
5960013A20
ref: 0
MODEL G/H/J E22
CYLINDER ASSEMBLY,FRONT MASTER
5960013A20
€ 191.50
0
5960013A60
ref: 0
MODEL K E22
CYLINDER ASSY,FR MASTER
€ 191.50
1-1
5960003810
ref: 1-1
PISTON & CUP SET
5960003810
€ 32.00
1-2
5960013820
ref: 1-2
E22
PISTON/CUP SET
5960013820
€ 40.50
2
5966644300
ref: 2
BOOT
5966644300
€ 6.00
3
5966704700
ref: 3
DIAPHRAGM
5966704700
€ 8.00
4-1
5966904710
ref: 4-1
MODEL G/H/J
CAP
5966904710
€ 12.00
4-2
6966924A00
ref: 4-2
MODEL K
CAP
€ 12.00
5
6968949300
ref: 5
SCREW
6968949300
€ 1.50
6
5967136500
ref: 6
HOLDER
5967136500
€ 10.00
7
0110706255
ref: 7
BOLT
0110706255
€ 2.50
8
0832221064
ref: 8
WASHER
0832221064
€ 2.00
9
5974815400
ref: 9
SEPERATOR
5974815400
€ 7.50
10
5974915400
ref: 10
PLATE
5974915400
€ 2.00
