STAND-REAR BRAKE

DR600R 1987 (H) (E02 E04 E06 E15 E16 E17 E18 E22 E24 E25 E34 E53

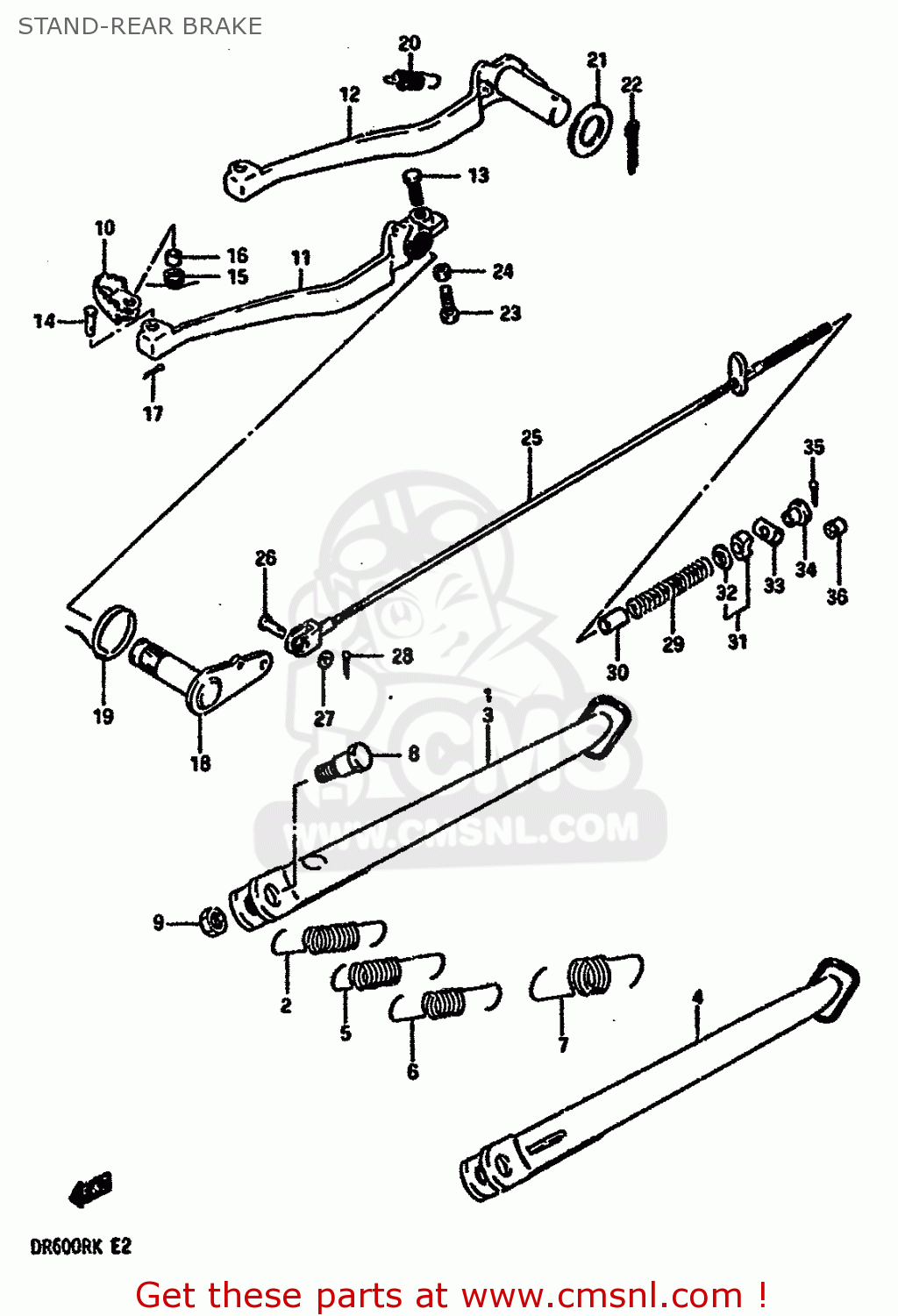

Stand-rear brake diagram DR600R 1987 (H) (E02 E04 E06 E15 E16 E17 E18 E22 E24 E25 E34 E53

STAND-REAR BRAKE DR600R 1987 (H) (E02 E04 E06 E15 E16 E17 E18 E22 E24 E25 E34 E53
STAND-REAR BRAKE DR600R 1987 (H) (E02 E04 E06 E15 E16 E17 E18 E22 E24 E25 E34 E53
STAND-REAR BRAKE DR600R 1987 (H) (E02 E04 E06 E15 E16 E17 E18 E22 E24 E25 E34 E53
prices are in EUR
ref
part #
description
quantity
1-1
4231014A0010V
ref: 1-1
MODEL G E4,E21,E24,E
STAND, PROP (WHITE)
€ 64.50
1-2
4231014A0034S
ref: 1-2
MODEL H E4,E6,E17,E2
STAND,PROP (BLUE)
€ 64.50
2
0944315015
ref: 2
MODEL G/H E4,E6,E17,
SPRING
0944315015
€ 5.50
3-1
4231014A1010V
ref: 3-1
MODEL G
STAND,PROP (WHITE)
€ 43.00
3-2
4231014A1034S
ref: 3-2
MODEL H
STAND, PROP (BLUE)
€ 43.00
4
4231014A2034S
ref: 4
MODEL J/K
STAND, PROP (BLUE)
€ 662.50
6
0944318015
ref: 6
MODEL G/H
SPRING
0944318015
€ 5.50
7
0944314030
ref: 7
E22,MODEL J/K
SPRING
0944314030
€ 6.00
8
0944322003
ref: 8
E22,MODEL J/K
SPRING
0944322003
€ 7.00
9
0911110038
ref: 9
BOLT L:30
0911110038
€ 4.50
10
0831022107
ref: 10
NUT
0831022107
€ 2.50
11
4311014130
ref: 11
PEDAL,BRAKE
4311014130
€ 6.00
10
4312014A00
ref: 10
MODEL G/H/J
ARM,BRAKE PEDAL
4312014A00
€ 41.50
12
4312014C00
ref: 12
MODEL K
ARM COMP,BRAKE PEDAL
4312014C00
€ 51.50
13
0110706205
ref: 13
MODEL G/H/J
BOLT
0110706205
€ 2.00
14
0920006038
ref: 14
PIN
0920006038
€ 2.00
15
0944411004
ref: 15
SPRING
0944411004
€ 3.00
16
0918006137
ref: 16
SPACER(9.2X9X6.5)
0918006137
€ 2.50
17
0411120158
ref: 17
PIN
0411120158
€ 1.50
18
4313014A00
ref: 18
MODEL G/H/J
ARM,BRAKE PEDAL ROD
€ 27.00
19
0944825005
ref: 19
SPRING
0944825005
€ 3.50
20
0944310033
ref: 20
MODEL K
SPRING
0944310033
€ 3.50
21
0916017021
ref: 21
MODEL K
WASHER (17.6X34X2)
€ 2.00
22
0411130308
ref: 22
MODEL K
COTTER PIN
0411130308
€ 1.50
23
0910006009
ref: 23
MODEL G/H/J
BOLT(6X23)
0910006009
€ 1.50
24
0831011067
ref: 24
MODEL G/H/J
NUT 6MM
€ 2.50
25
5851014A00
ref: 25
MODEL G/H/J
CABLE,RR BRAKE
5851014A00
€ 13.00
26
0920005001
ref: 26
MODEL G/H/J
PIN(L:17.5)
0920005001
€ 1.50
27
0832221066
ref: 27
MODEL G/H/J
WASHER, LOWER
0832221066
€ 2.00
28
0411120158
ref: 28
MODEL G/H/J
PIN
0411120158
€ 1.50
29
0944011012
ref: 29
MODEL G/H/J
SPRING
0944011012
€ 3.00
30
6115579000
ref: 30
MODEL G/H/J
CUSHION,FR GRILLE,UPPER
6115579000
€ 13.00
31
4337037300
ref: 31
MODEL G/H/J
CUSHION
4337037300
€ 5.50
32
0916906010
ref: 32
MODEL G/H/J
WASHER
0916906010
€ 3.00
33
4338037200
ref: 33
MODEL G/H/J
PIN,BRAKE CABLE ADJUSTER
4338037200
€ 16.00
34
0915006009
ref: 34
MODEL G/H/J
NUT (6MM)
0915006009
€ 3.50
35
0411120158
ref: 35
MODEL G/H/J
PIN
0411120158
€ 1.50
36
1591853016
ref: 36
MODEL G/H/J E22
CAP
€ 0.00
up

all assemblies
