MAGNETO

DR600R 1987 (H) (E02 E04 E06 E15 E16 E17 E18 E22 E24 E25 E34 E53

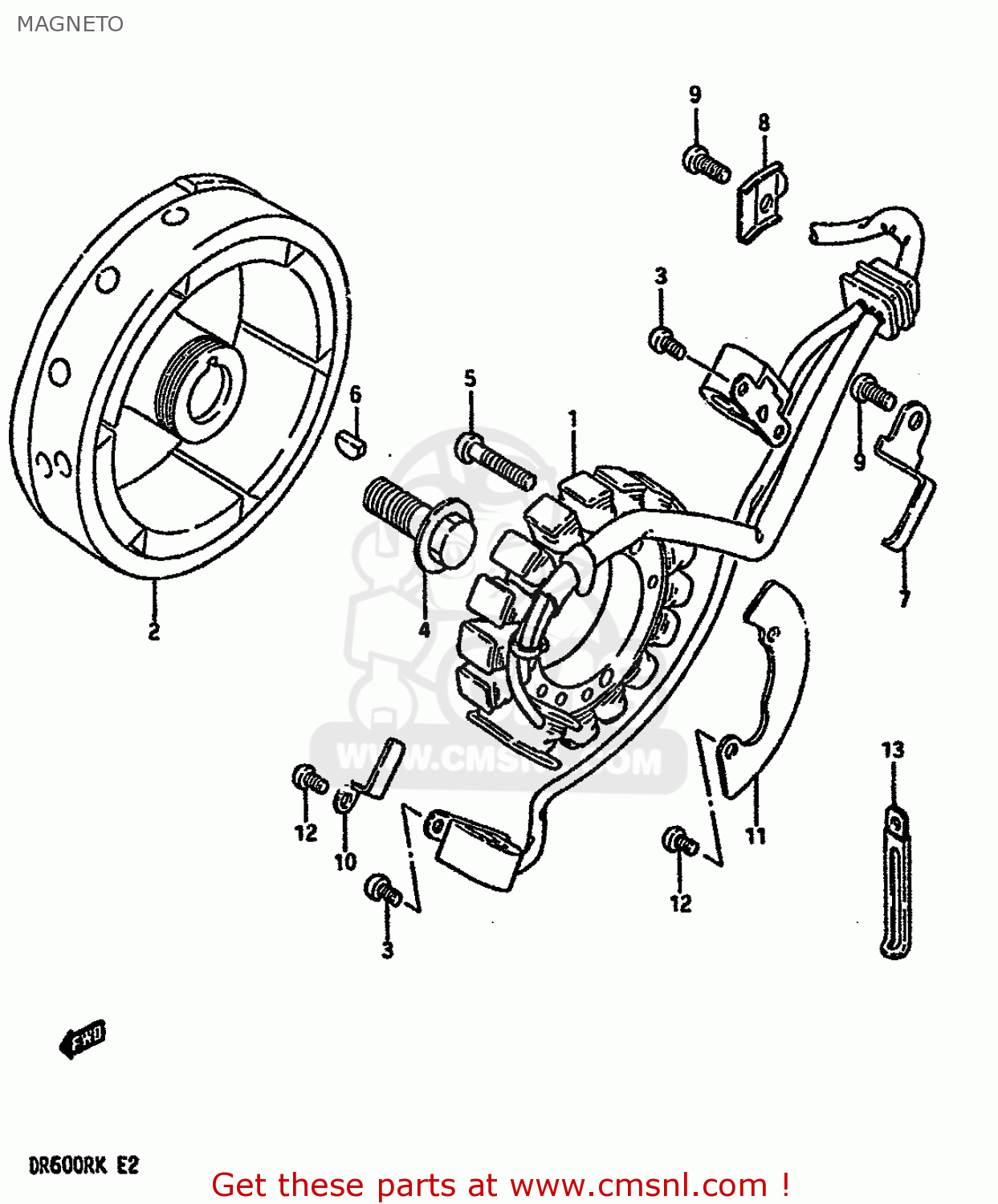

Magneto diagram DR600R 1987 (H) (E02 E04 E06 E15 E16 E17 E18 E22 E24 E25 E34 E53

prices are in EUR

ref

part #

description

quantity

3210114A10
ref: 1

STATOR ASSY

€ 694.00

3210214A10
ref: 2

ROTOR,FLYWHEEL

€ 439.00

0211205128
ref: 3

SCREW

€ 2.50

0910314001
ref: 4

BOLT(14X43)

€ 7.00

0211206308
ref: 5

SCREW 6X30

€ 2.50

0834131049
ref: 6

KEY 4MM

€ 3.50

3237114A00
ref: 7

CLAMP,MAGNETO LEAD WIRE

€ 3.50

3237137410
ref: 8

CLAMP,MAGNETO LEAD WIRE

€ 1.50

0211206108
ref: 9

SCREW

€ 1.50

3237114A10
ref: 10

CLAMP

€ 0.00

3237114A20
ref: 11

CLAMP

€ 0.00

0211205107
ref: 12

SCREW

€ 2.00

0940406402
ref: 13

CLAMP

€ 2.50
