Buy Suzuki DR Parts Online


REAR FENDER

DR600R 1987 (H) (E02 E04 E06 E15 E16 E17 E18 E22 E24 E25 E34 E53

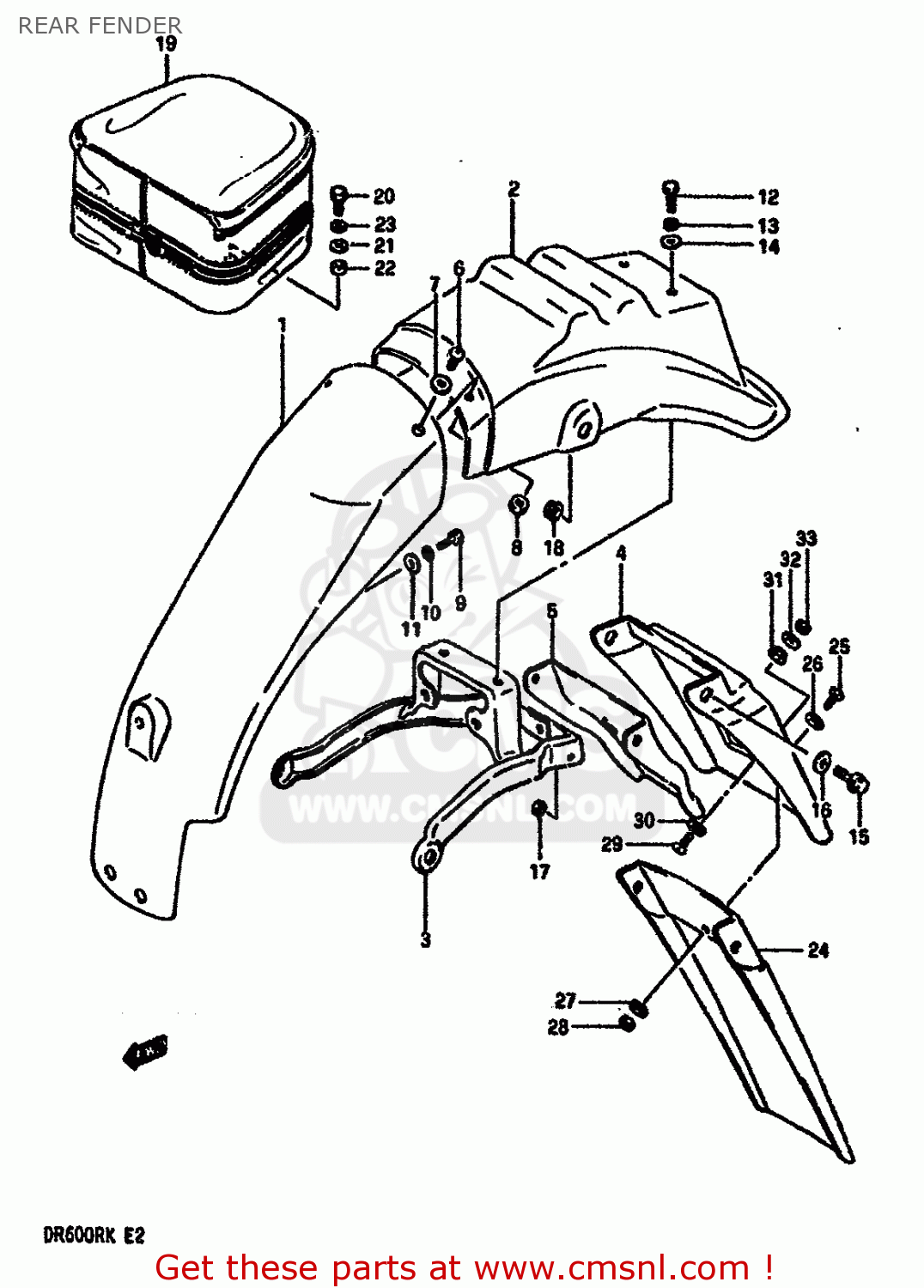

Rear fender diagram DR600R 1987 (H) (E02 E04 E06 E15 E16 E17 E18 E22 E24 E25 E34 E53

REAR FENDER DR600R 1987 (H) (E02 E04 E06 E15 E16 E17 E18 E22 E24 E25 E34 E53
REAR FENDER DR600R 1987 (H) (E02 E04 E06 E15 E16 E17 E18 E22 E24 E25 E34 E53
REAR FENDER DR600R 1987 (H) (E02 E04 E06 E15 E16 E17 E18 E22 E24 E25 E34 E53
prices are in EUR
ref
part #
description
quantity
1
6311214A00
ref: 1
BODY,REAR FENDER,FRONT
€ 25.00
2-1
6311314A0010V
ref: 2-1
MODEL G
BODY, REAR (WHITE)
€ 89.50
2-2
6311314A2010V
ref: 2-2
MODEL G E22
FENDER,RR
€ 89.50
2-3
6311314A0014L
ref: 2-3
MODEL H/J
BODY, REAR (WHITE)
€ 89.50
2-4
6311314A2014L
ref: 2-4
MODEL H/J E22
BODY, REAR FENDER REAR (WHITE)
€ 89.50
2-5
6311314A0030H
ref: 2-5
MODEL K
FENDER,REAR
€ 89.50
2-6
6311314A2030H
ref: 2-6
MODEL K E22
BODY,REAR FENDER,REAR
6311314A2030H
€ 89.50
3
6312014A00
ref: 3
REINFORCEMENT,REAR FENDER
€ 41.50
4-1
6331114A00
ref: 4-1
EXTENSION,REAR FENDER
6331114A00
€ 27.00
4-2
6331114A10
ref: 4-2
E15,E16,E17,E18
EXTENSION
€ 27.00
4-3
6331114A20
ref: 4-3
E22
EXTENSION
6331114A20
€ 27.00
5
6313114A00
ref: 5
REINFORCEMENT,REAR FENDER EXTENSION
€ 14.00
6
0214205124
ref: 6
SCREW, FRONT & REAR
€ 1.50
7
0916005031
ref: 7
WASHER
€ 1.50
8
0831921055
ref: 8
NUT 8MM
0831921055
€ 1.50
9
0110706165
ref: 9
BOLT 6X16
0110706165
€ 2.00
10
0832121064
ref: 10
WASHER,LOCK
0832121064
€ 2.00
11
0916906026
ref: 11
WASHER
0916906026
€ 2.00
12
0110706205
ref: 12
BOLT
0110706205
€ 2.00
13
0832121064
ref: 13
WASHER,LOCK
0832121064
€ 2.00
14
0832221064
ref: 14
WASHER
0832221064
€ 2.00
15
0151706205
ref: 15
BOLT
€ 2.50
16
0916906026
ref: 16
WASHER
0916906026
€ 2.00
17
0831931065
ref: 17
NUT
0831931065
€ 2.50
18
0831931085
ref: 18
NUT
€ 2.50
19-1
9490014A009LS
ref: 19-1
MODEL G
BAG ASSY, SEAT TAIL (BLUE/WHITE)
€ 151.00
19-2
9490014A009LL
ref: 19-2
MODEL H
BAG ASSY, SEAT TAIL (GRAY/BLUE)
€ 151.00
20-1
0110706166
ref: 20-1
BOLT
€ 2.00
20-2
0911906072
ref: 20-2
E22
BOLT
0911906072
€ 3.00
21
09160060A6
ref: 21
WASHER
€ 2.00
22
0918006073
ref: 22
SPACER
0918006073
€ 2.00
23
0832121067
ref: 23
E22
WASHER,LOCK
0832121067
€ 2.50
24-1
6333114A00
ref: 24-1
E15,E16,E17,E18
MUD GUARD
€ 39.50
24-2
6333114A20
ref: 24-2
E22
MUD GUARD
6333114A20
€ 39.50
25
0214206125
ref: 25
E15,E16,E17,E18,E22
SCREW 6X12
0214206125
€ 2.00
26
0916006019
ref: 26
E15,E16,E17,E18,E22
WASHER(6.5X16X1.2)
0916006019
€ 1.50
27
0832121066
ref: 27
E15,E16,E17,E18,E22
WASHER,LOCK
0832121066
€ 2.00
28
0831022066
ref: 28
E15,E16,E17,E18,E22
NUT
€ 2.00
29-1
0214206125
ref: 29-1
SCREW 6X12
0214206125
€ 2.00
29-2
0214206164
ref: 29-2
E15,E16,E17,E18,E22
SCREW
0214206164
€ 2.50
30
0916006020
ref: 30
WASHER
0916006020
€ 2.00
31
0916906041
ref: 31
WASHER
0916906041
€ 2.00
32
0916006069
ref: 32
WASHER
0916006069
€ 2.00
33
0831022065
ref: 33
NUT
€ 1.50
