CYLINDER

DR600R1989 (K)

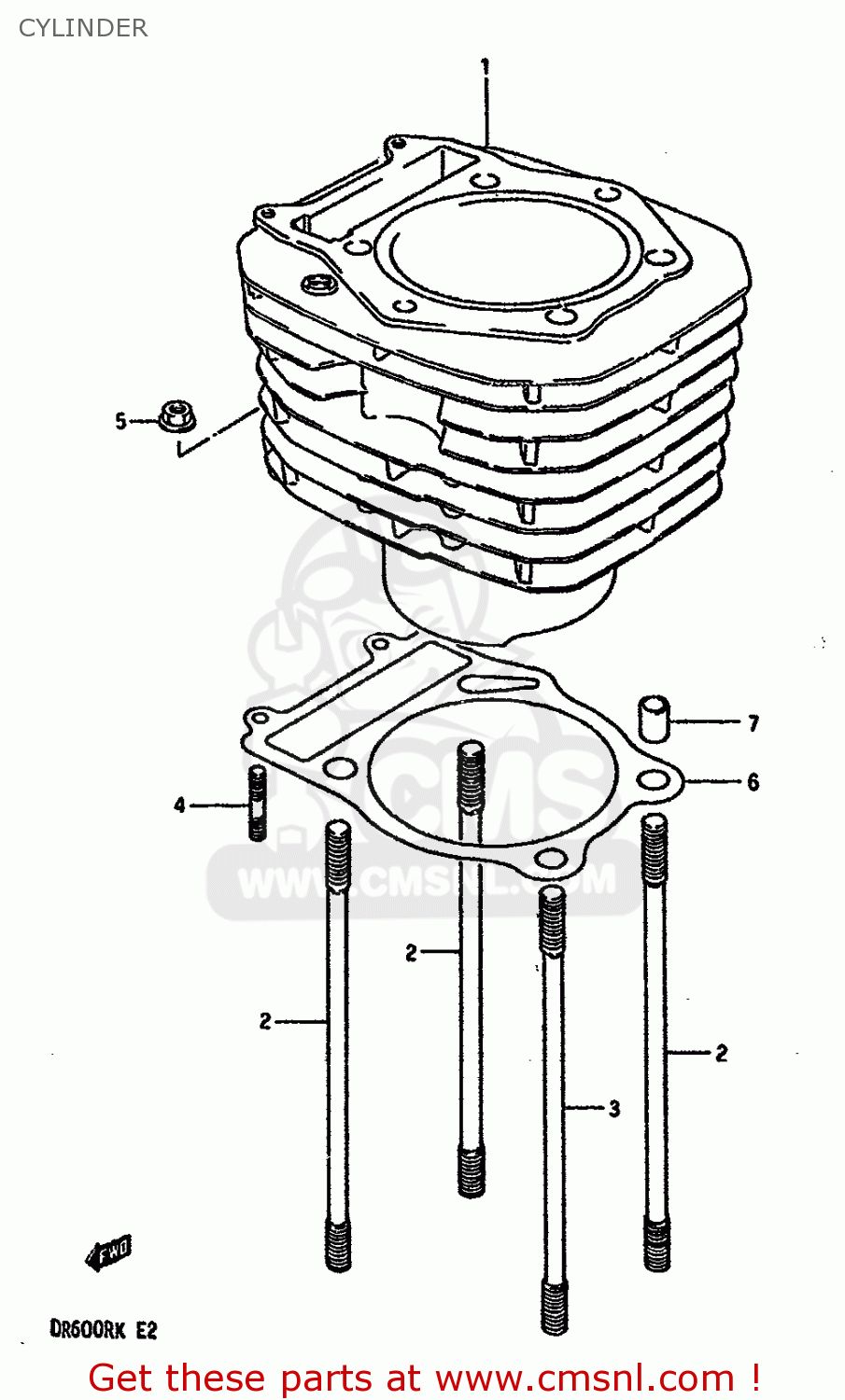

Cylinder diagram DR600R1989 (K)

CYLINDER DR600R1989 (K)

CYLINDER DR600R1989 (K)

prices are in EUR

ref

part #

description

quantity

1

1121014A02
ref: 1

CYLINDER

€ 594.00

2

0910810039
ref: 2

STUD

€ 9.00

3

0910810075
ref: 3

STUD

€ 8.50

4

0142106205
ref: 4

STUD BOLT L:20

€ 2.50

5

0831616064
ref: 5

NUT 6MM

€ 2.50

6-1

1124114A01
ref: 6-1

GASKET,CYLINDER (MCA)

€ 27.00

6-2

1124114A01H17
ref: 6-2
E17

GASKET,CYLINDER (NAS)

€ 27.00

7

0920613001
ref: 7

PIN

€ 2.50
