FRONT FENDER (MODEL G E16,E18,E22,E24)
DR600R1989 (K)

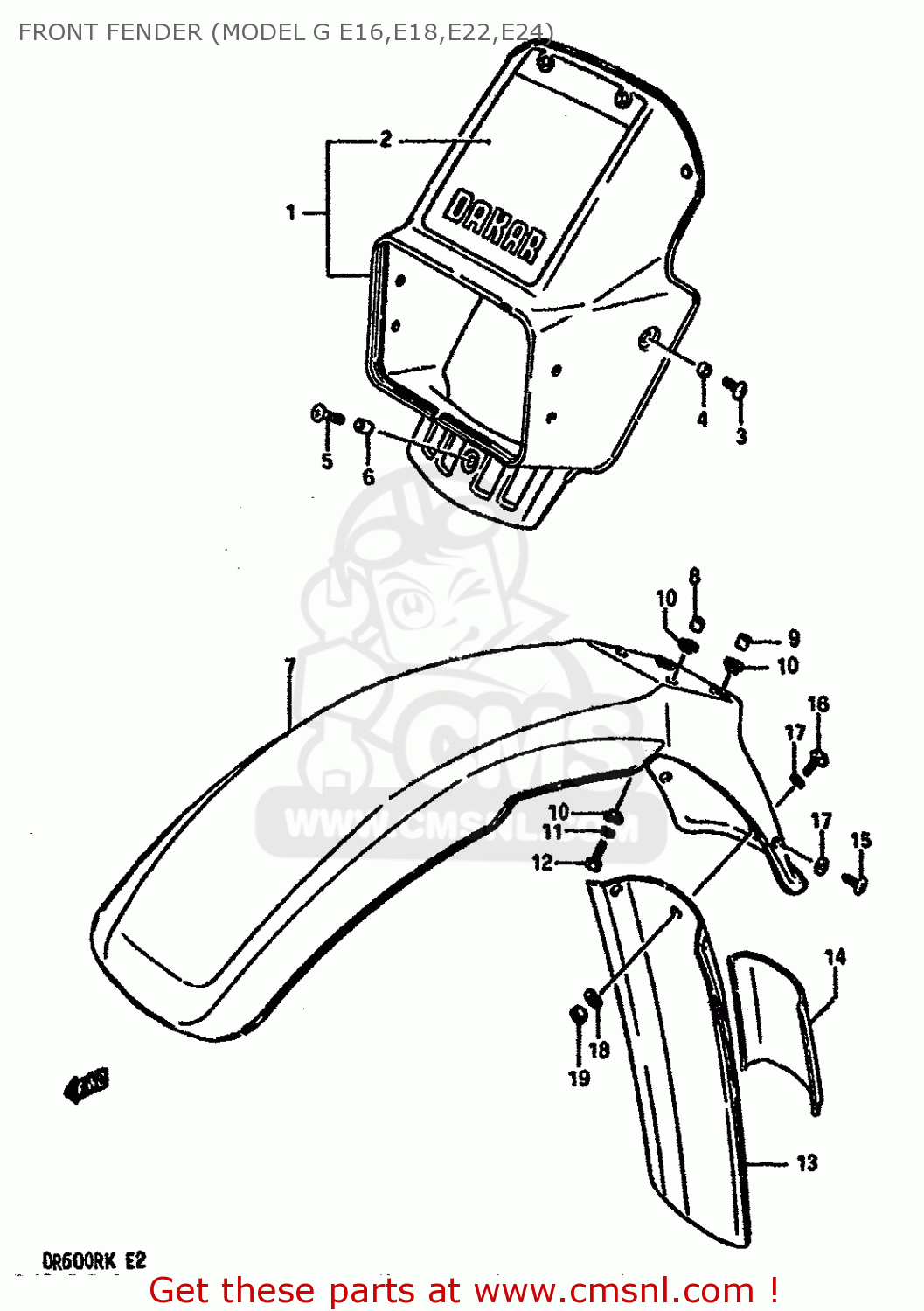

Front fender (model g e16,e18,e22,e24) diagram DR600R1989 (K)
FRONT FENDER (MODEL G E16,E18,E22,E24) DR600R1989 (K)
×
prices are in EUR
ref
part #
description
quantity
1
5181014A2010V
ref: 1
COVER, HEADLAMP (WHITE)
€ 132.50
2
6825014A208LD
ref: 2
TAPE SET
€ 0.00
3
0214206125
ref: 3
SCREW 6X12
€ 2.00
4
0918006098
ref: 4
SPACER (6.1X8X3.5)
€ 3.00
5
0214206205
ref: 5
SCREW, CENTER
€ 2.00
6
0918006035
ref: 6
SPACER (6.1X8X12)
€ 2.50
7-1
5311114A1010V
ref: 7-1
E16,E18,E24
FENDER,FRONT (WHITE)
€ 70.50
7-2
5311114A2010V
ref: 7-2
E22
FENDER, FRONT (WHITE)
€ 70.50
8
0918006038
ref: 8
SPACER(6.1X9X7.5)
€ 2.00
9
0918006030
ref: 9
SPACER (6.8X10X10)
€ 2.00
10
0916906053
ref: 10
WASHER
€ 2.00
11
0832121067
ref: 11
WASHER,LOCK
€ 2.50
12
0110706257
ref: 12
BOLT
€ 2.00
13-1
5331114A00
ref: 13-1
E16,E18,E24
MUD FLAP
€ 16.50
13-2
5331114A20
ref: 13-2
E22
MUD FLAP
€ 29.50
14
5332214A00
ref: 14
PROTECTOR SEAT
€ 0.00
15
0214206164
ref: 15
SCREW
€ 2.50
16
0214206205
ref: 16
SCREW, CENTER
€ 2.00
17
0832121067
ref: 17
WASHER,LOCK
€ 2.50
18
0916006003
ref: 18
WASHER (6.7X16X1.8)
€ 2.00
19
0831022067
ref: 19
NUT 6MM
€ 2.50
