WIRING HARNESS
DR600R1989 (K)

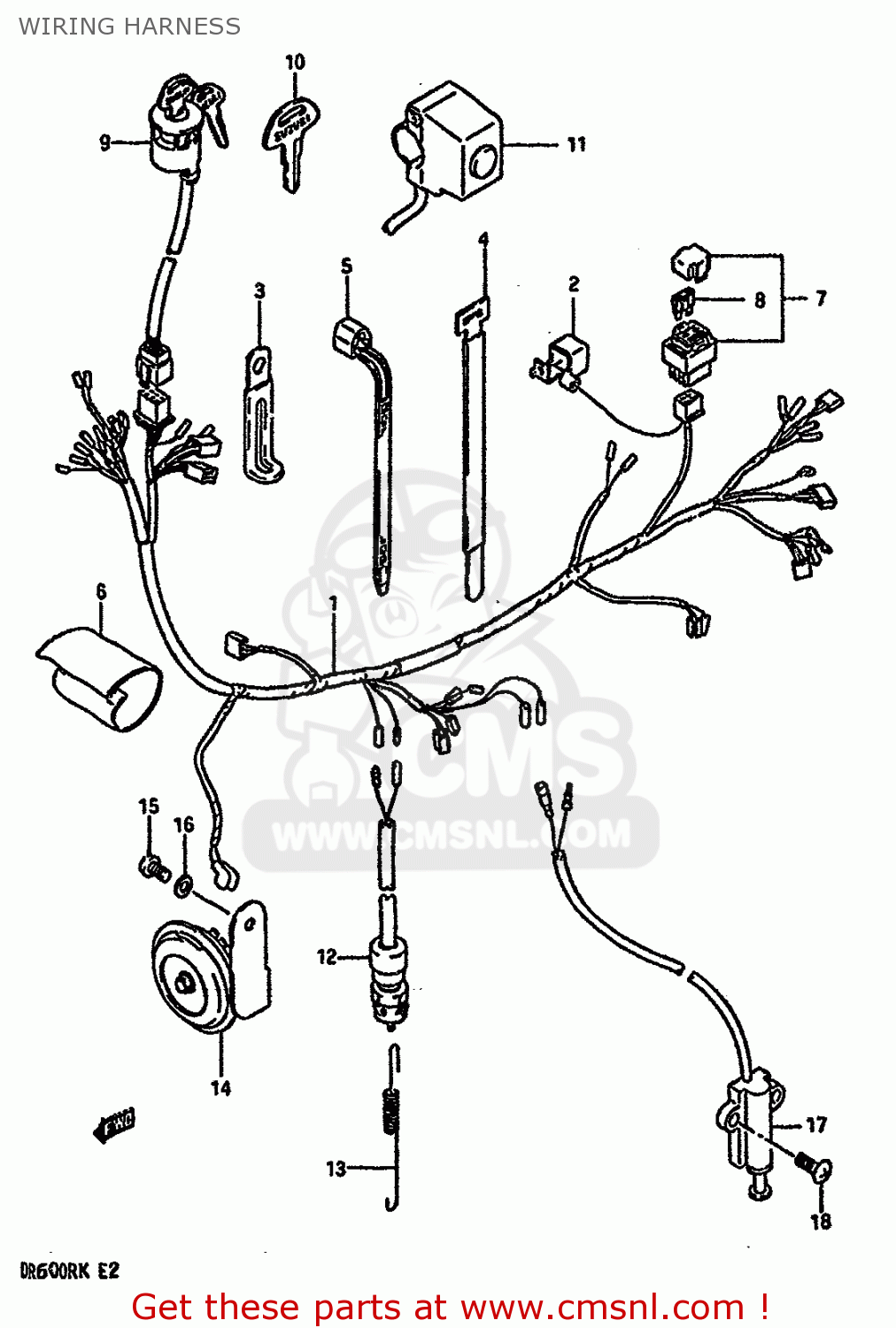

Wiring harness diagram DR600R1989 (K)
WIRING HARNESS DR600R1989 (K)
×
prices are in EUR
ref
part #
description
quantity
1-1
3661014A12
ref: 1-1
MODEL G,FROM 36610-1
HARNESS, WIRING
€ 180.00
1-2
3661014A31
ref: 1-2
MODEL H,FROM 36610-1
HARNESS, WIRING
€ 157.00
1-3
3661014A52
ref: 1-3
MODEL J
HARNESS,WIRING
€ 192.00
1-4
3661014A61
ref: 1-4
MODEL K
HARNESS,WIRING
€ 192.00
2
3362414A00
ref: 2
CAP,BATTERY PLUS TERMINAL
€ 0.00
3-1
0940406401
ref: 3-1
CLAMP L:35
€ 2.50
3-2
0940408413
ref: 3-2
CLAMP
€ 3.50
3-3
0940406422
ref: 3-3
MODEL G/H
CLAMP
€ 2.50
4-1
0940718301
ref: 4-1
CLAMP
€ 6.00
4-2
0940712402
ref: 4-2
MODEL J
CLAMP(L:120)
€ 3.00
5-1
0940714403
ref: 5-1
MODEL G/H
CLAMP(L:125)
€ 2.50
5-2
0940714403
ref: 5-2
MODEL J
CLAMP(L:125)
€ 2.50
5-3
0940714403
ref: 5-3
MODEL K
CLAMP(L:125)
€ 2.50
5-4
0940718402
ref: 5-4
MODEL G/H/J
CLAMP(L:165)
€ 2.50
5-5
0940725401
ref: 5-5
CLAMP(L:235)
€ 4.00
6
3661813600
ref: 6
MODEL G/H/J
COVER,WIRING HARNESS
€ 12.00
7
3674004701
ref: 7
BOX ASSY,FUSE
€ 16.00
8
0948115101
ref: 8
FUSE(15A)
€ 1.50
9
3711001A01
ref: 9
SWITCH ASSEMBLY,IGNITION
€ 64.50
10
3714502400
ref: 10
OPT
KEY,BLANK
€ 13.00
11
3783013A00
ref: 11
SWITCH ASSY,ENGINE STOP
€ 43.00
12
3774014A00
ref: 12
SWITCH ASSEMBLY,STOP LAMP
€ 22.00
13-1
0944306058
ref: 13-1
MODEL G/H/J
SPRING
€ 18.00
13-2
0944306079
ref: 13-2
MODEL K
SPRING
€ 4.00
14-1
3850014A10
ref: 14-1
HORN ASSY
€ 42.00
14-2
3850014A00
ref: 14-2
E4,E18,E34,E53
HORN ASSY
€ 53.50
15
0211206125
ref: 15
SCREW
€ 1.50
16
0832121064
ref: 16
WASHER,LOCK
€ 2.00
17
3784014A20
ref: 17
MODEL J/K
SWITCH ASSY, SIDE STAND
€ 80.00
18
0211206205
ref: 18
MODEL J/K
SCREW
€ 2.00
