LEFT HANDLE SWITCH (MODEL K)
DR600R1989 (K)

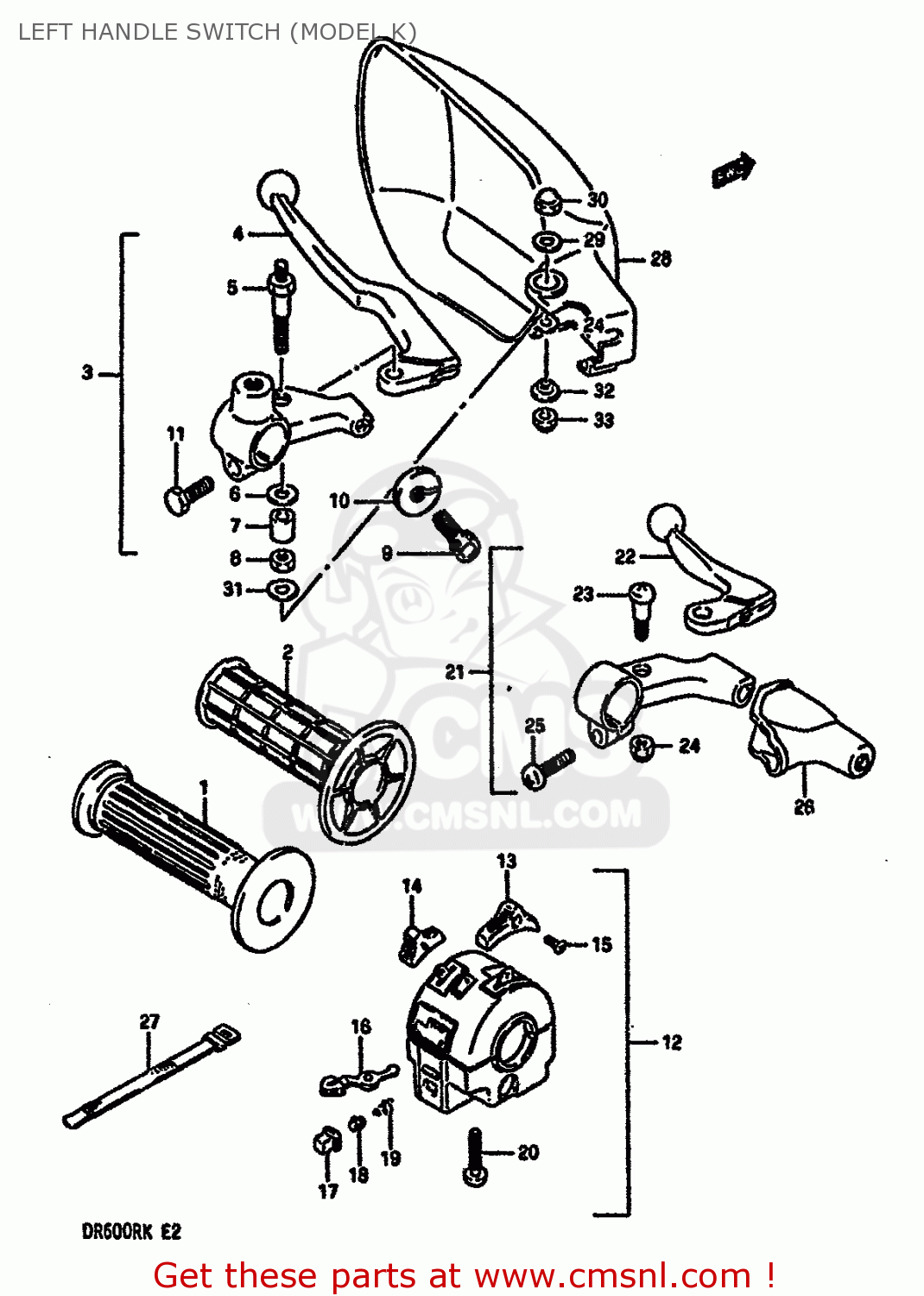

Left handle switch (model k) diagram DR600R1989 (K)
LEFT HANDLE SWITCH (MODEL K) DR600R1989 (K)
×
prices are in EUR
ref
part #
description
quantity
1
5721145020
ref: 1
GRIP,L
€ 9.00
2
5721140201
ref: 2
E18,E24,E39
GRIP,LEFT
€ 11.00
3
5750015A10
ref: 3
LEVER ASSY,CLUTCH
€ 34.50
4
5762049101
ref: 4
LEVER,CLUTCH
€ 28.50
5
5753144B00
ref: 5
BOLT,LEVER SET
€ 6.50
6
5753344B00
ref: 6
WASHER,LEVER SET
€ 2.50
7
5753244B00
ref: 7
SPACER,LEVER SET
€ 3.50
8
0831921065
ref: 8
NUT
€ 2.50
9
5744144400
ref: 9
ADJUSTER,CABLE
€ 5.50
10
5744244400
ref: 10
NUT,CABLE ADJUSTER LOCK
€ 4.00
11
0110706205
ref: 11
BOLT
€ 2.00
12-1
3740001A00
ref: 12-1
SWITCH ASSY,HANDLE LH
€ 108.00
12-2
3740014A10
ref: 12-2
E24
SWITCH ASSY,HANDLE,LH
€ 0.00
12-3
3740014A40
ref: 12-3
E34,E53
SWITCH ASSY,HANDLE,LH
€ 122.50
13
3741145012
ref: 13
KNOB,LIGHTING SWITCH
€ 4.50
14
3742145012
ref: 14
KNOB,DIMMER SWITCH
€ 5.50
15
0212203068
ref: 15
SCREW
€ 1.00
16
3751345011
ref: 16
KNOB,TURNSIGNAL
€ 6.50
17
5737145000
ref: 17
BUTTON,HORN
€ 3.00
18
5737245000
ref: 18
CONTACT
€ 3.00
19
5738245000
ref: 19
SPRING
€ 2.50
20
0211205257
ref: 20
SCREW
€ 2.00
21
5870038200
ref: 21
LEVER ASSEMBLY,DECOMPRESSION
€ 169.50
22
5873138200
ref: 22
LEVER,DECOMP
€ 42.00
23
5743101011
ref: 23
BOLT,LEVER
€ 5.00
24
5763338200
ref: 24
NUT
€ 2.00
25
0211206205
ref: 25
SCREW
€ 2.00
26
5734237101
ref: 26
COVER,DECOMP LEVER DUST
€ 9.50
27
0940712402
ref: 27
CLAMP(L:120)
€ 3.00
28
5754115A0130H
ref: 28
COVER,KNUCKLE,LH (WHITE)
€ 25.50
29
0916006102
ref: 29
WASHER (6.5X20X1.6)
€ 2.00
30
0831311065
ref: 30
NUT 6MM
€ 2.00
31
0916006019
ref: 31
WASHER(6.5X16X1.2)
€ 1.50
32
0916906040
ref: 32
WASHER
€ 2.00
33
0831921068
ref: 33
NUT 6MM
€ 2.00
