SEAT
DR600R1989 (K)

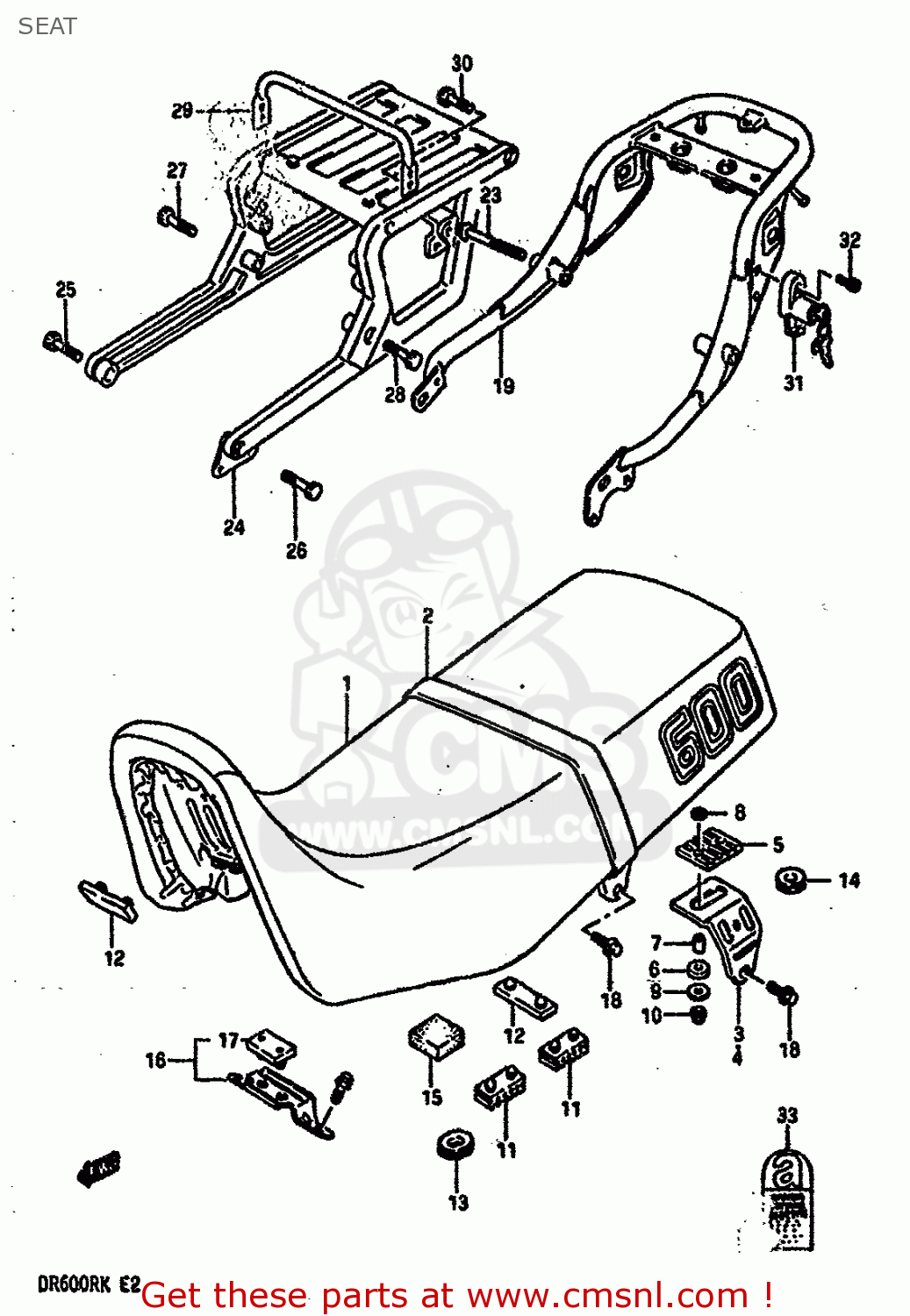

Seat diagram DR600R1989 (K)
SEAT DR600R1989 (K)
×
prices are in EUR
ref
part #
description
quantity
1-1
4510015A608MW
ref: 1-1
MODEL G
SEAT SET
€ 0.00
1-2
4510015A508MW
ref: 1-2
MODEL G E4,E21,E24,E
SEAT SET
€ 0.00
1-3
4510015A808MW
ref: 1-3
MODEL G E16,E18
SEAT SET
€ 326.00
1-4
4510015A708MW
ref: 1-4
MODEL G E17,E22
SEAT SET
€ 0.00
1-5
4510014C509LH
ref: 1-5
MODEL H/J/K
SEAT SET
€ 307.50
1-6
4510014C409LH
ref: 1-6
MODEL H/J/K E4,E24,E
SEAT SET
€ 307.50
1-7
4510014C609LH
ref: 1-7
MODEL H/K E16,E18
SEAT SET
€ 0.00
1-8
4510014C709LH
ref: 1-8
MODEL H/J/K E17,E22
SEAT SET
€ 0.00
2-1
4518014A0058D
ref: 2-1
MODEL G E4,E21,E24,E
BAND,SEAT
€ 16.50
2-2
4518014A505AK
ref: 2-2
MODEL H/J/K E4,E24,E
BAND,SEAT (WHITE)
€ 25.00
2-3
4518014A005AK
ref: 2-3
MODEL H/J/K E16,E18
BAND,SEAT (WHITE)
€ 16.50
3
4511714A10
ref: 3
BRACKET,SEAT,RIGHT
€ 9.00
4
4511814A10
ref: 4
BRACKET,SEAT,LEFT
€ 3.50
5
4514723450
ref: 5
CUSHION,SEAT FR
€ 1.50
6
4515023450
ref: 6
CUSHION,FR PLATE
€ 3.00
7
4521923450
ref: 7
SPACER,SEAT SUPPORT
€ 2.50
8
0821206201
ref: 8
WASHER
€ 1.50
9
0832221066
ref: 9
WASHER, LOWER
€ 2.00
10
0831626066
ref: 10
NUT
€ 2.00
11
4514931300
ref: 11
CUSHION,SEAT(40X20X15)
€ 2.00
12
0932108019
ref: 12
CUSHION
€ 4.00
13
0932908003
ref: 13
CUSHION
€ 3.50
14
0932008018
ref: 14
CUSHION
€ 4.00
15
4525515510
ref: 15
CUSHION,TOOL(40X30X15)
€ 4.00
16
4512014A00
ref: 16
PLATE ASSY,SEAT FR HOOK
€ 16.50
17
0932108010
ref: 17
CUSHION
€ 4.00
18
0110708166
ref: 18
BOLT, 8X1.25X1
€ 2.00
19-1
4631014A20291
ref: 19-1
MODEL G
CARRIER, SPORT (BLACK)
€ 0.00
19-2
4631014A2034S
ref: 19-2
MODEL H
CARRIER COMP,SUPPORT
€ 89.50
19-3
4631014A30291
ref: 19-3
MODEL G E16,E22
CARRIER,SPORT (BLACK)
€ 0.00
19-4
4631014A3034S
ref: 19-4
MODEL H E16,E22
CARRIER,SPORT (BLUE)
€ 0.00
20
0110708207
ref: 20
BOLT
€ 3.00
21
0832121088
ref: 21
LOCK WASHER
€ 2.00
22
0832221088
ref: 22
WASHER
€ 2.00
23
0151708705
ref: 23
BOLT (8X70)
€ 2.50
24
4630014A40
ref: 24
MODEL J/K
CARRIER ASSEMBLY,REAR
€ 282.00
25
0711008358
ref: 25
MODEL J/K
BOLT, FRONT RH
€ 4.50
26
0711008257
ref: 26
MODEL J/K
BOLT, FRONT LH
€ 3.50
27
0711008608
ref: 27
MODEL J/K
BOLT, REAR RH
€ 4.50
28
0711008508
ref: 28
MODEL J/K
BOLT ,8X50
€ 3.50
29
4632214A40
ref: 29
MODEL J/K E16,E22
TUBE, PILLION HANDLE
€ 29.00
30
0151708167
ref: 30
MODEL J/K E16,E22
BOLT 8X16
€ 3.00
31-1
9570031300KEY
ref: 31-1
MODEL G
LOCK SET
€ 49.50
31-2
9570031810
ref: 31-2
MODEL H/J/K
LOCK SET,HELMET
€ 49.50
32
0711006165
ref: 32
BOLT
€ 3.00
33
1196782000
ref: 33
E2
LABEL,ASBESTOS WARNING
€ 2.00
