DR600SU 1985 (F) GERMANY (E22)

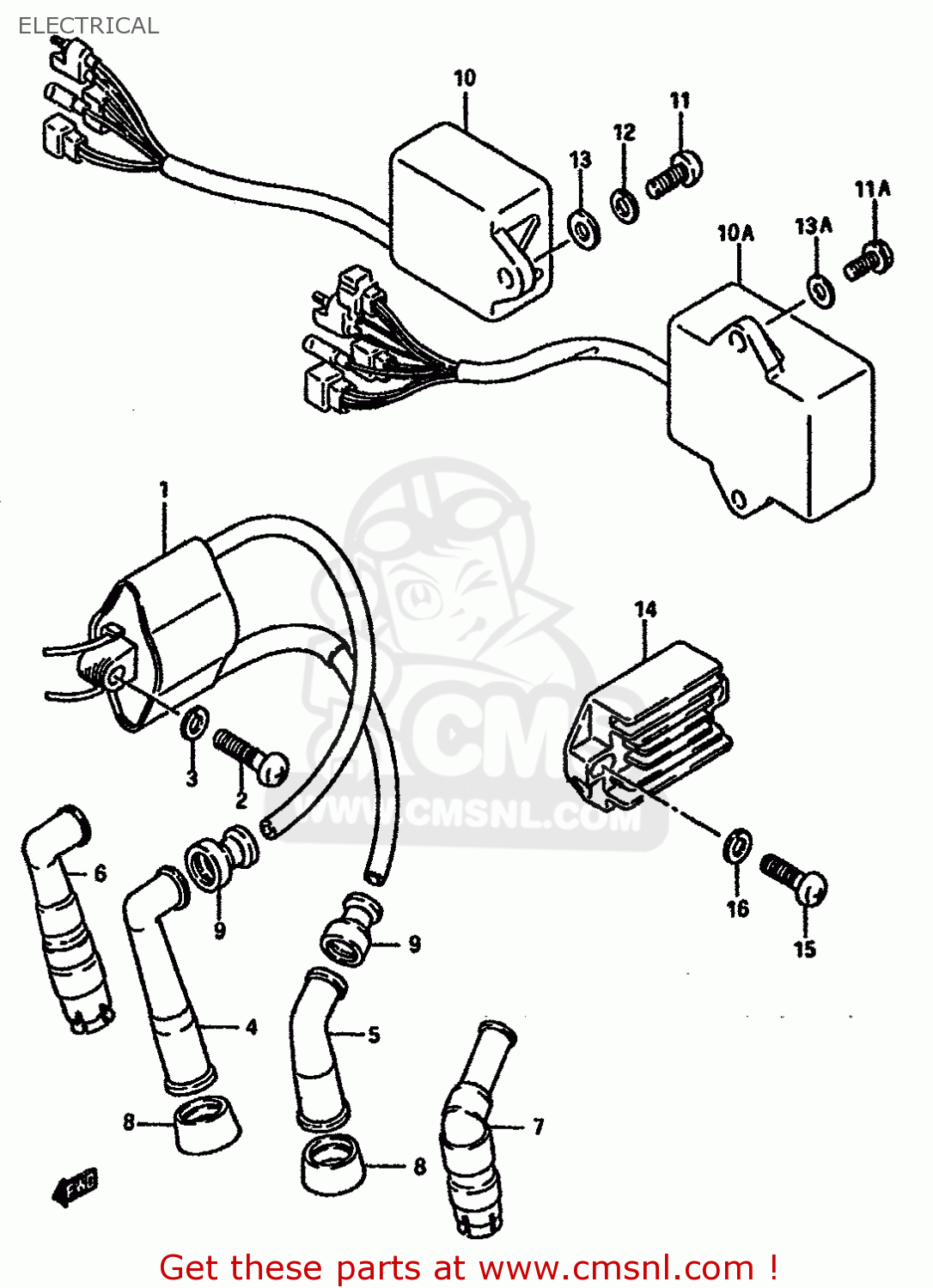

Electrical diagram DR600SU 1985 (F) GERMANY (E22)
ELECTRICAL DR600SU 1985 (F) GERMANY (E22)
×
prices are in EUR
ref
part #
description
quantity
1
3341014A00
ref: 1
COIL ASSEMBLY,IGNITION
€ 161.50
2
0211206256
ref: 2
SCREW
€ 1.50
3
0832221066
ref: 3
WASHER, LOWER
€ 2.00
4
3351045010
ref: 4
CAP ASSY,SPARK PLUG
€ 23.00
5
3351043010
ref: 5
CAP,SPARK PLUG
€ 11.50
6
3351045411
ref: 6
E16
CAP, SPARK PLUG
€ 29.50
7
3351005210
ref: 7
E16
CAP, SPARK PLUG
€ 0.00
8
3354124510
ref: 8
SEAL,SPARK PLUG CAP
€ 7.00
9
3354298000
ref: 9
SEAL,SPARK PLU
€ 4.50
10-1
3290014A00
ref: 10-1
MODEL F
CDI UNIT
€ 252.00
10-2
3290014A11
ref: 10-2
MODEL G/H,FROM 32900
CDI UNIT
€ 346.00
10A
3290014A20
ref: 10A
MODEL J/K
CDI UNIT
€ 329.50
11
0211206166
ref: 11
MODEL F/G/H
SCREW
€ 2.00
11A
0912806005
ref: 11A
MODEL J/K
SCREW
€ 2.50
12
0832121066
ref: 12
MODEL F/G/H
WASHER,LOCK
€ 2.00
13
0832221066
ref: 13
MODEL F/G/H
WASHER, LOWER
€ 2.00
13A
0832221067
ref: 13A
MODEL J/K
WASHER
€ 2.00
14
3280009300
ref: 14
RECTIFIER ASSEMBLY
€ 306.50
15
0211206206
ref: 15
SCREW
€ 2.00
16
0832121066
ref: 16
WASHER,LOCK
€ 2.00
