HEADLAMP
DR600SU 1985 (F) GERMANY (E22)

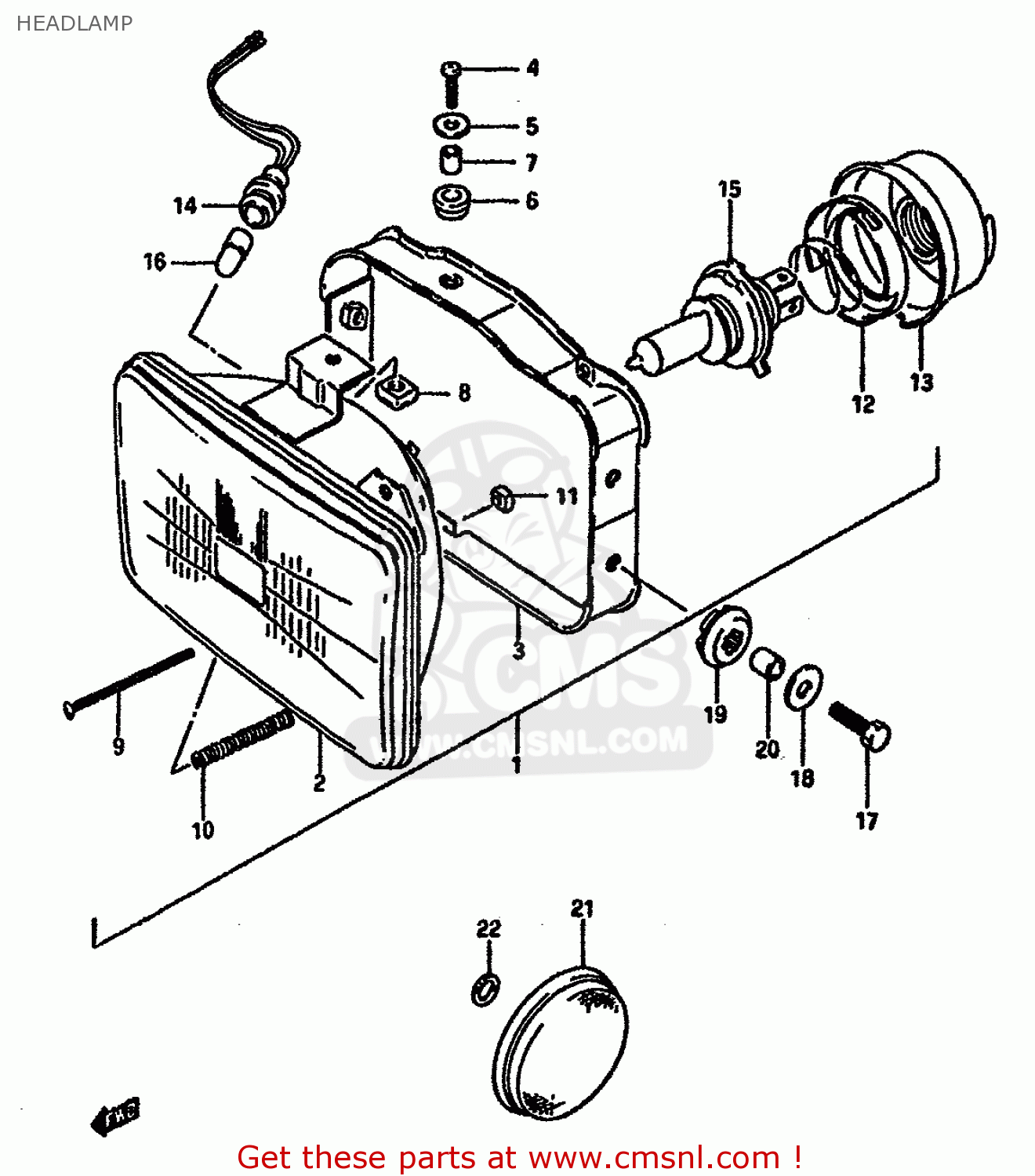

Headlamp diagram DR600SU 1985 (F) GERMANY (E22)
HEADLAMP DR600SU 1985 (F) GERMANY (E22)
×
prices are in EUR
ref
part #
description
quantity
1-1
3510014A30999
ref: 1-1
E1,E6,E24
HEADLAMP ASSEMBLY
€ 180.50
1-2
3510014A00999
ref: 1-2
E2
HEADLAMP ASSY
€ 176.50
1-3
3510014A50999
ref: 1-3
E4,E15,E16,E17,E18,E
HEADLAMP ASSY
€ 175.50
2-1
3512114A30
ref: 2-1
E1,E6,E24
LAMP UNIT
€ 90.00
2-2
3512114A00
ref: 2-2
E2
LAMP UNIT
€ 102.00
2-3
3512114A50
ref: 2-3
E4,E15,E16,E17,E18,E
UNIT
€ 102.00
3
3514114A00
ref: 3
HOUSING
€ 31.00
4
0211205208
ref: 4
SCREW 5X20
€ 3.00
5
3513845230
ref: 5
WASHER
€ 2.00
6
3513945230
ref: 6
CUSHION
€ 1.50
7
3513314A00
ref: 7
SPACER
€ 3.50
8
3513545900
ref: 8
NUT
€ 2.50
9
3515149200
ref: 9
SCREW,HEADLAMP ADJUST
€ 4.00
10
3515449200
ref: 10
SPRING
€ 3.50
11
3513545600
ref: 11
NUT
€ 3.00
12
3513601A00
ref: 12
HOLDER,BULB
€ 6.00
13
3517301440
ref: 13
COVER,SOCKET
€ 10.00
14
3611845900
ref: 14
E2,E4,E15,E16,E17,E1
SOCKET,PARKING
€ 13.00
15-1
0947112060
ref: 15-1
BULB(12V60/55W,H4)
€ 8.00
15-2
0947112061
ref: 15-2
E4,EXECUTED LOCALLY
BULB (12V, 60/55W, H4)
€ 0.00
16-1
0947112001
ref: 16-1
E2
BULB(12V3.4W,STANLEY,A72A)
€ 1.50
16-2
0947112063
ref: 16-2
E4,E15,E16,E17,E18,E
BULB(12V4W)
€ 6.00
17
0110706207
ref: 17
BOLT
€ 2.00
18
0916006027
ref: 18
WASHER (6.5X20X1.2)
€ 2.00
19
0932009018
ref: 19
CUSHION
€ 2.00
20
0918006030
ref: 20
SPACER (6.8X10X10)
€ 2.00
21
3595014A00
ref: 21
E39
REFLECTOR,REFLEX FR
€ 15.00
22
0832121057
ref: 22
E39
LOCK WASHER
€ 2.00
