FUEL TANK (MODEL F/G)
DR600SU 1985 (F) GERMANY (E22)

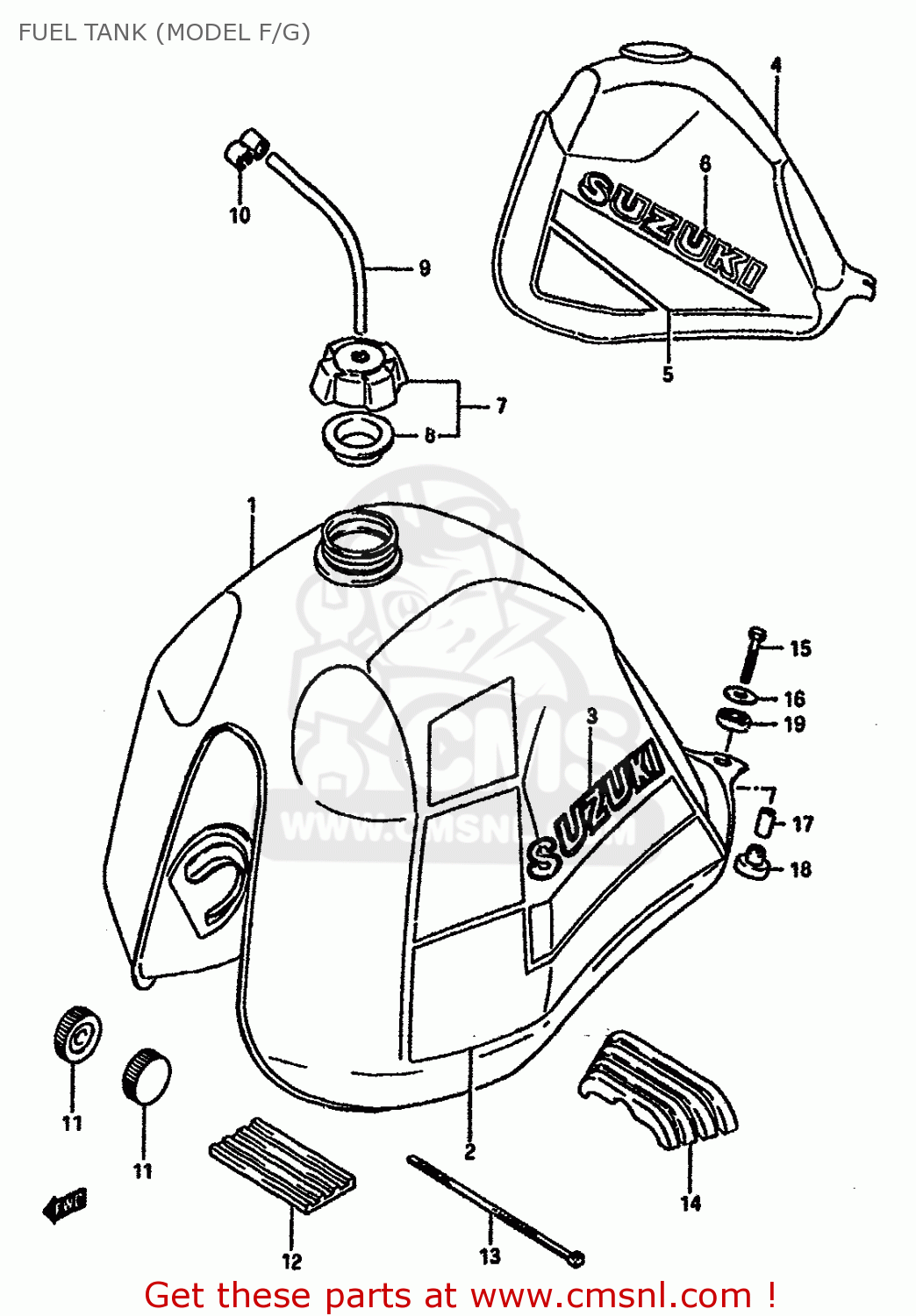

Fuel tank (model f/g) diagram DR600SU 1985 (F) GERMANY (E22)
FUEL TANK (MODEL F/G) DR600SU 1985 (F) GERMANY (E22)
×
prices are in EUR
ref
part #
description
quantity
1-1
4410014A0010V
ref: 1-1
MODEL F
TANK ASSY,FUEL (WHITE)
€ 733.50
1-2
4410014A1010V
ref: 1-2
MODEL F E22
TANK ASSY,FUEL (WHITE)
€ 733.50
1-3
4410014A0014C
ref: 1-3
MODEL F
TANK ASSY,FUEL (RED)
€ 733.50
1-4
4410014A1014C
ref: 1-4
MODEL F E22
TANK ASSY,FUEL (RED)
€ 733.50
1-5
4410014A0019F
ref: 1-5
MODEL F
TANK ASSY,FUEL (BLUE)
€ 733.50
1-6
4410014A1019F
ref: 1-6
MODEL F E22
TANK ASSY,FUEL (BLUE)
€ 733.50
1-7
4410014A0021C
ref: 1-7
MODEL F
TANK ASSY,FUEL (BLACK)
€ 733.50
1-8
4410014A1021C
ref: 1-8
MODEL F E22
TANK ASSY,FUEL (BLACK)
€ 733.50
2-1
6811014A0067H
ref: 2-1
MODEL F,FOR 10V
TAPE SET,FUEL TANK
€ 41.50
2-2
6811014A007FW
ref: 2-2
MODEL F,FOR 14C
TAPE SET,FUEL TANK
€ 50.00
2-3
6811014A0088Y
ref: 2-3
MODEL F,FOR 19F
TAPE SET,FUEL TANK
€ 50.00
2-4
6811014A007FV
ref: 2-4
MODEL F,FOR 21C
TAPE SET,FUEL TANK
€ 22.00
3-1
6811143400019
ref: 3-1
MODEL F,FOR 10V
EMBLEM
€ 9.50
3-2
6811143400064
ref: 3-2
MODEL F,FOR 14C,19F,
EMBLEM
€ 10.00
4-1
4410014A4010V
ref: 4-1
MODEL G
TANK ASSY, FUEL (WHITE)
€ 733.50
4-2
4410014A5010V
ref: 4-2
MODEL G E22
TANK ASSY,FUEL (WHITE)
€ 733.50
4-3
4410014A4014C
ref: 4-3
MODEL G
TANK ASSY, FUEL (RED)
€ 733.50
4-4
4410014A5014C
ref: 4-4
MODEL G E22
TANK ASSY,FUEL (RED)
€ 733.50
4-5
4410014A4019F
ref: 4-5
MODEL G
TANK ASSY, FUEL (BLUE)
€ 733.50
4-6
4410014A5019F
ref: 4-6
MODEL G E22
TANK ASSY,FUEL (BLUE)
€ 733.50
4-7
4410014A4021C
ref: 4-7
MODEL G
TANK ASSY, FUEL (BLACK)
€ 733.50
4-8
4410014A5021C
ref: 4-8
MODEL G E22
TANK ASSY,FUEL (BLACK)
€ 733.50
5-1
6811014A407CL
ref: 5-1
MODEL G,FOR 10V
TAPE SET,FUEL TANK
€ 29.00
5-2
6811014A408AH
ref: 5-2
MODEL G,14C,19F,21C
TAPE SET, FUEL TANK
€ 28.00
6-1
6811132410019
ref: 6-1
MODEL G,FOR 10V
EMBLEM,FUEL TANK
€ 10.50
6-2
6811132410064
ref: 6-2
MODEL G,FOR 14C,19F,
EMBLEM,FUEL TANK
€ 7.00
7
4420001890
ref: 7
CAP SET,FUEL TANK
€ 12.50
8
4424840400
ref: 8
GASKET,FUEL TANK CAP (NAS)
€ 4.50
9
0934305129
ref: 9
HOSE
€ 13.00
10
4448632101
ref: 10
CLAMP,FUEL TANK BREATHER HOSE
€ 3.50
11
0932910016
ref: 11
CUSHION
€ 3.00
12
4454114500
ref: 12
CUSHION,FUEL TANK UPR FR
€ 4.50
13
0940720401
ref: 13
CLAMP
€ 4.50
14
4454214A00
ref: 14
CUSHION,FUEL TANK RR
€ 8.50
15
0110706306
ref: 15
BOLT
€ 2.50
16
0916006072
ref: 16
WASHER (6.5X24X1.6)
€ 2.00
17
0918006072
ref: 17
SPACER
€ 2.00
18
0932010020
ref: 18
CUSHION
€ 4.00
19
0932014013
ref: 19
CUSHION
€ 3.00
