FRONT MASTER CYLINDER
DR600SU 1985 (F) GERMANY (E22)

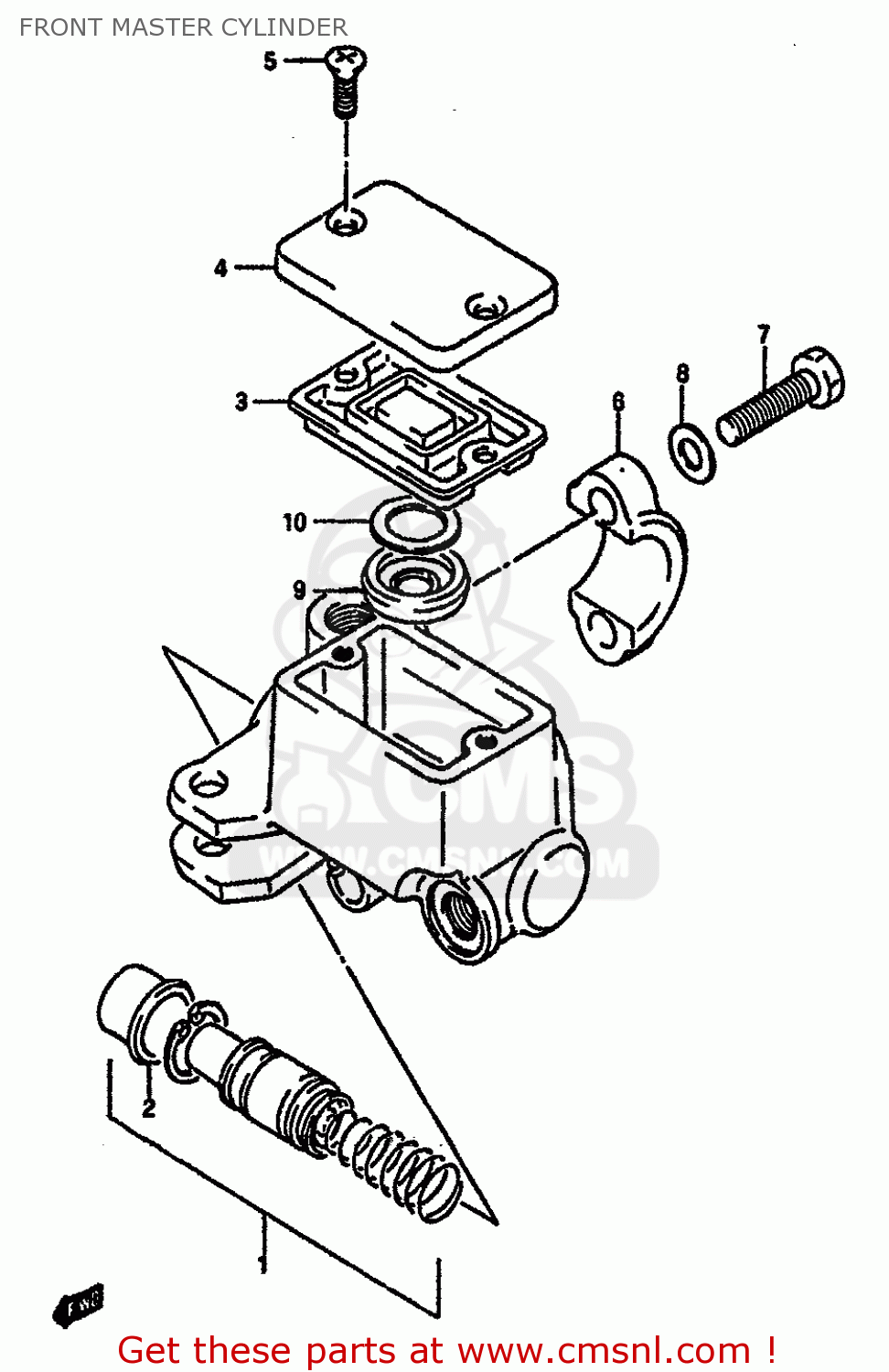

Front master cylinder diagram DR600SU 1985 (F) GERMANY (E22)
FRONT MASTER CYLINDER DR600SU 1985 (F) GERMANY (E22)
×
prices are in EUR
ref
part #
description
quantity
0
5960014A01
ref: 0
MODEL F/G/H/J
CYLINDER ASSEMBLY,FRONT MASTER
€ 206.50
0
5960014A20
ref: 0
MODEL K
CYLINDER ASSY,FR MASTER
€ 206.50
0
5960013A20
ref: 0
MODEL F/G/H/J E22
CYLINDER ASSEMBLY,FRONT MASTER
€ 191.50
0
5960013A60
ref: 0
MODEL K E22
CYLINDER ASSY,FR MASTER
€ 191.50
1-1
5960003810
ref: 1-1
PISTON & CUP SET
€ 32.00
1-2
5960013820
ref: 1-2
E22
PISTON/CUP SET
€ 40.50
2
5966644300
ref: 2
BOOT
€ 6.00
3
5966704700
ref: 3
DIAPHRAGM
€ 8.00
4-1
5966904710
ref: 4-1
MODEL F/G/H/J
CAP
€ 12.00
4-2
6966924A00
ref: 4-2
MODEL K
CAP
€ 12.00
5
6968949300
ref: 5
SCREW
€ 1.50
6
5967136500
ref: 6
HOLDER
€ 10.00
7
0110706255
ref: 7
BOLT
€ 2.50
8
0832221064
ref: 8
WASHER
€ 2.00
9
5974815400
ref: 9
SEPERATOR
€ 7.50
10
5974915400
ref: 10
PLATE
€ 2.00
